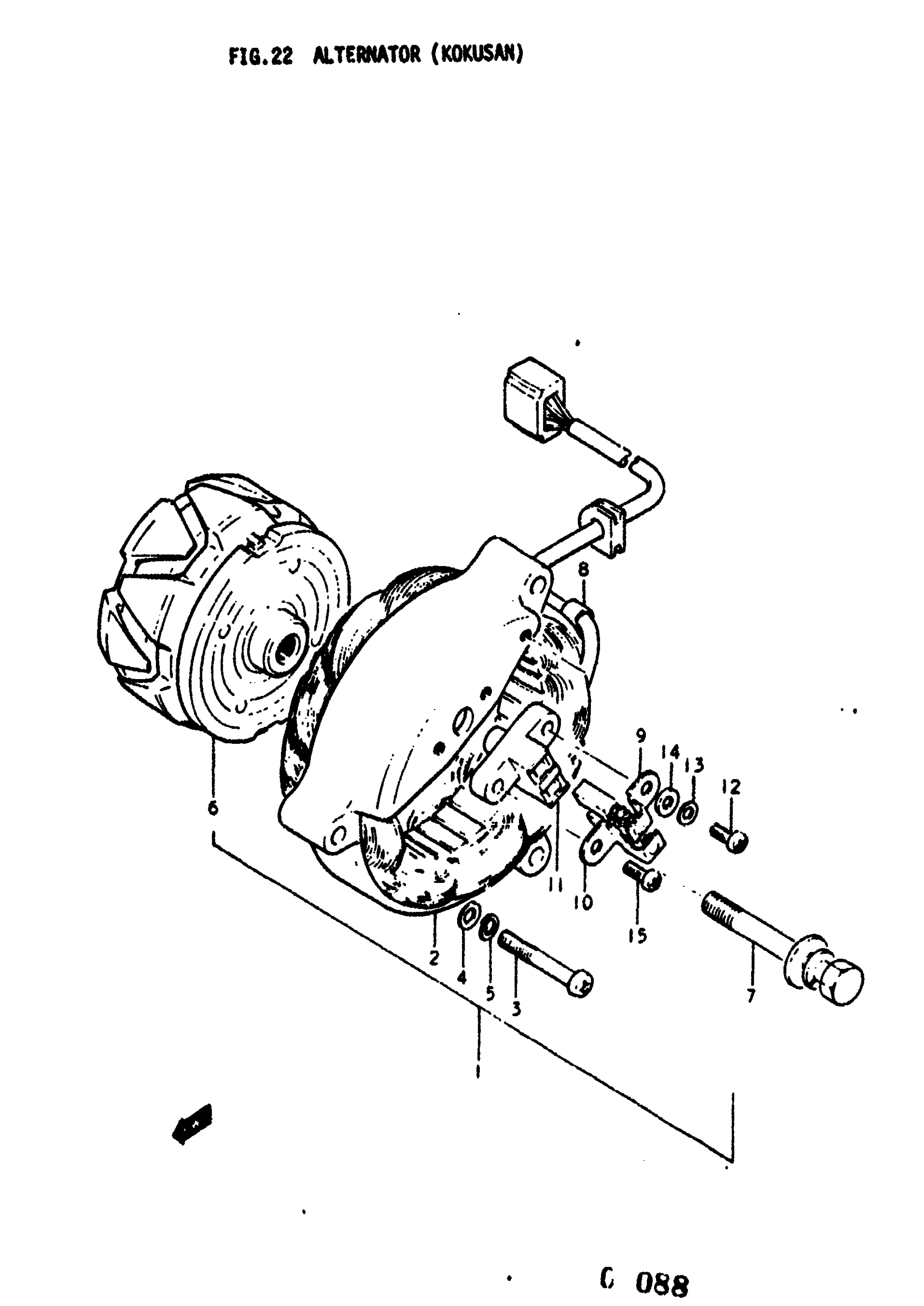

Suzuki GT380 (1977) ALTERNATOR (KOKUSAN) Diagram

#

Description
Price

1

ALTERNATOR ASSY | K,L,M,A,B; FROM 31400-33120; Includes Item(s) 2 - 15

31400-33020

Unavailable

2

STATOR ASSY | K,L,M,A,B; FROM 31400-33120

31401-33020

Unavailable

3

SCREW | K,L

31433-33020

Unavailable

3

SCREW | M,A,B

31433-33021

Unavailable

4

WASHER | K,L This part replaces 08322-11058.

08322-01057

$2.13

5

LOCK WASHER | K,L This part replaces 08321-21058.

08321-0105A

$1.84

6

ROTOR | K,L,M,A,B

31402-33020

Unavailable

7

BOLT | K,L,M,A,B This part replaces 31720-33020.

01500-08507

$3.05

8

CLAMP, LEAD WIRE | K,L,M

31481-33020

Unavailable

9

BRUSH (+) | K,L,M,A,B

31631-33020

Unavailable

10

BRUSH (-) | K,L,M,A,B

31632-33020

Unavailable

11

HOLDER, BRUSH | K,L,M,A,B

31656-33020

Unavailable

12

SCREW | K,L,M,A,B This part replaces 02111-04168.

02112-0416A

$1.49

13

WASHER | K,L,M,A,B This part replaces 08322-21048.

08322-01047

$1.86

14

INSULATOR, BRUSH HOLDER | K,L,M,A,B

31666-33020

Unavailable

15

SCREW | K,L,M,A,B

02311-04128

Unavailable
