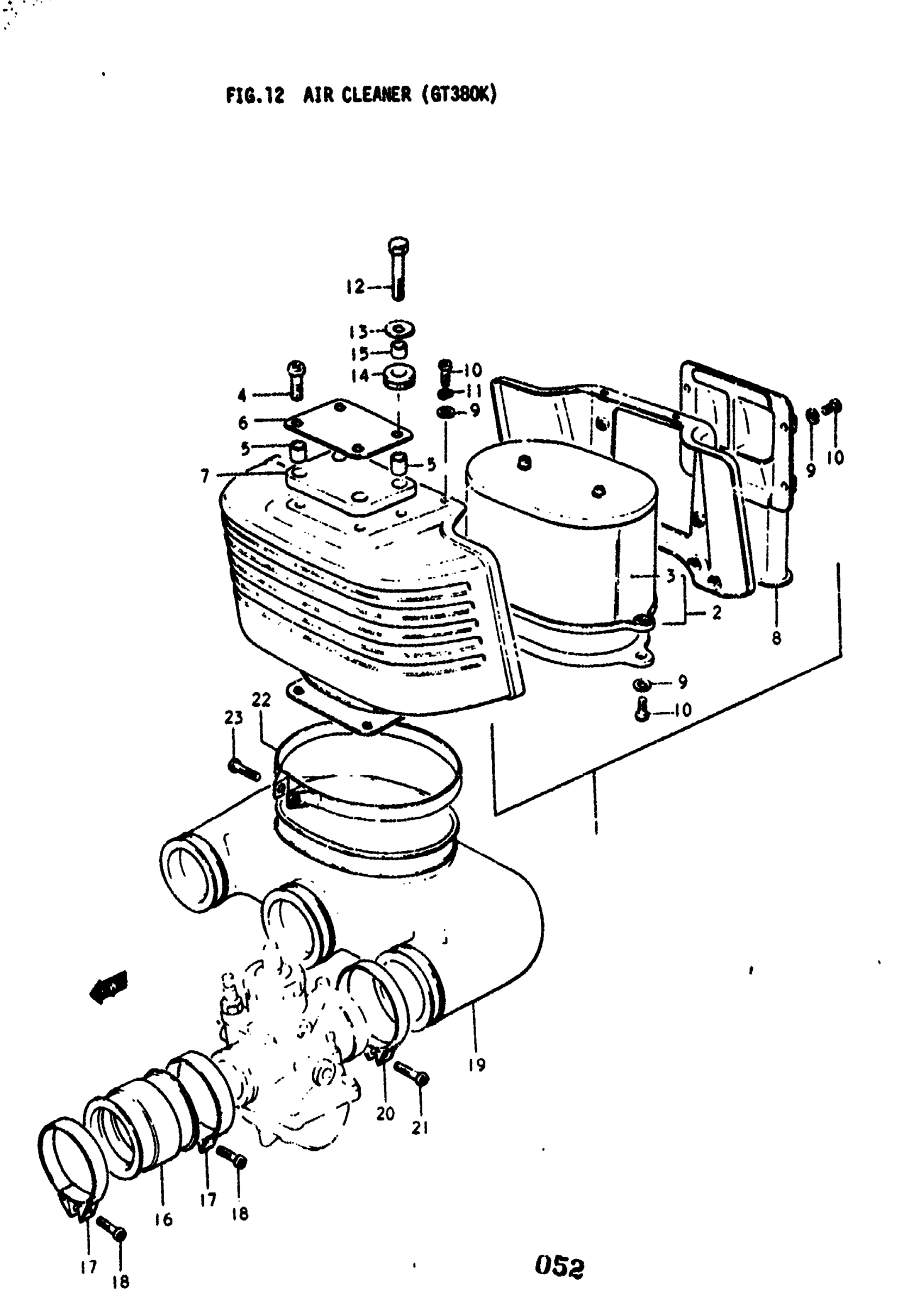

Suzuki GT380 (1977) AIR CLEANER (GT380K) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11

13700-33010

Unavailable

2

FILTER, AIR CLEANER

13780-33010

Unavailable

3

FILTER, AIR CLEANER This part replaces 13781-33010.

13780-33010

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

SPACER

13793-33010

Unavailable

6

WASHER

13734-33010

Unavailable

7

CUSHION

13741-33010

Unavailable

8

INLET, AIR CLEANER

13722-33010

Unavailable

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

SCREW This part replaces 02111-04127.

02112-0412A

$1.49

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

BOLT, REAR This part replaces 01112-06308.

01500-06307

$2.48

13

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

16

PIPE, INTAKE | TO 13111-33100

13111-33000

Unavailable

17

CLAMP | FROM 09402-00228 This part replaces 09402-48303.

09402-48208

$4.64

18

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

19

HOSE, CARBURETOR AIR INLET | TO 13880-33002

13880-33001

Unavailable

20

CLAMP, INLET HOSE (1) | FROM 09402-00223

09402-52306

$4.91

21

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

22

CLAMP, INLET HOSE (2) | FROM 09402-00227

09402-52306

$4.91

23

SCREW

02111-04258

Unavailable
