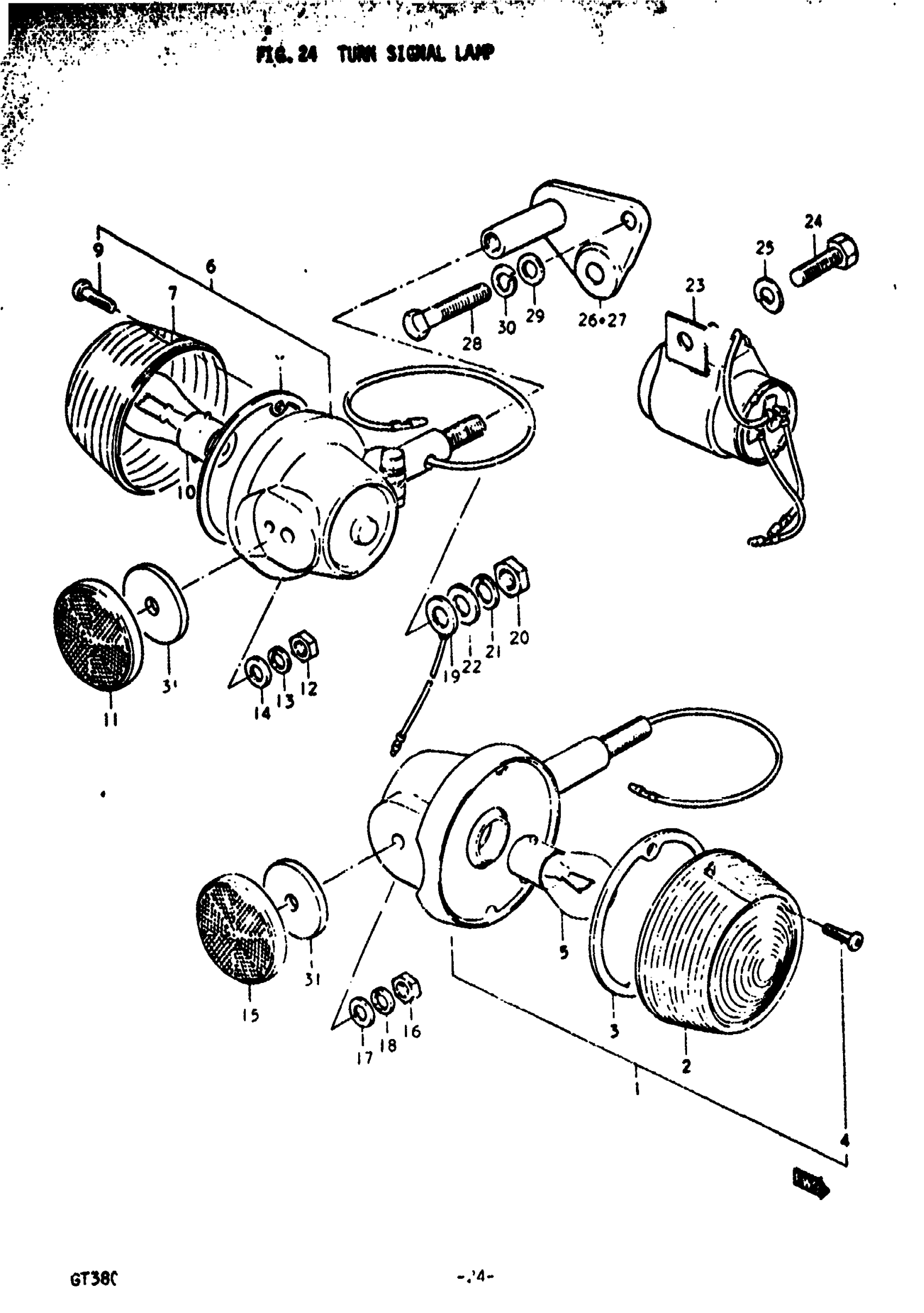

Suzuki GT380 (1972) TURN SIGNAL LAMP Diagram

LAMP ASSY, FRONT TURN SIGNAL | FROM 35601-31010-999; Includes Item(s) 2 - 5

35601-31010

Unavailable

LENS

35612-31010

Unavailable

GASKET

35613-03610

$13.34

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

BULB | 12V, 32CP

09471-12006

$3.98

NO DESCRIPTION AVAILABLE | FROM 35600-31830; Includes Item(s) 7 - 10 This part replaces 35603-31010.

35603-31010-999

Unavailable

LENS, REAR | RED

35652-31610

Unavailable

GASKET

35613-03610

$13.34

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

BULB | 12V, 32CP

09471-12006

$3.98

REFLEX REFLECTOR, REAR | TO 35970-31610

35970-15010

Unavailable

NUT This part replaces 08311-11058.

08310-00057

$1.84

WASHER (5.5X18X1) | 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

REFLEX REFLECTOR FRONT | TO 35950-31010 This part replaces 35950-15010.

35950-49080

$17.24

NUT This part replaces 08311-11058.

08310-00057

$1.84

WASHER (5.5X18X1) | 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

LEAD WIRE

36660-33000

$4.52

NUT This part replaces 08311-11108.

08310-00107

$2.19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

WASHER This part replaces 08322-21108.

08322-01107

$2.15

TURN SIGNAL REL | FROM 38610-15611 This part replaces 38610-32210.

38610-322V0

Unavailable

BOLT This part replaces 01112-06128.

01500-06127

$1.97

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

BRACKET, TURN SIGNAL LAMP RH

41640-33001

Unavailable

BRACKET, TURN SIGNAL LAMP LH

41650-33001

Unavailable

BOLT This part replaces 01111-10207.

01500-1020B

$3.16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

CUSHION

35656-31010

Unavailable
