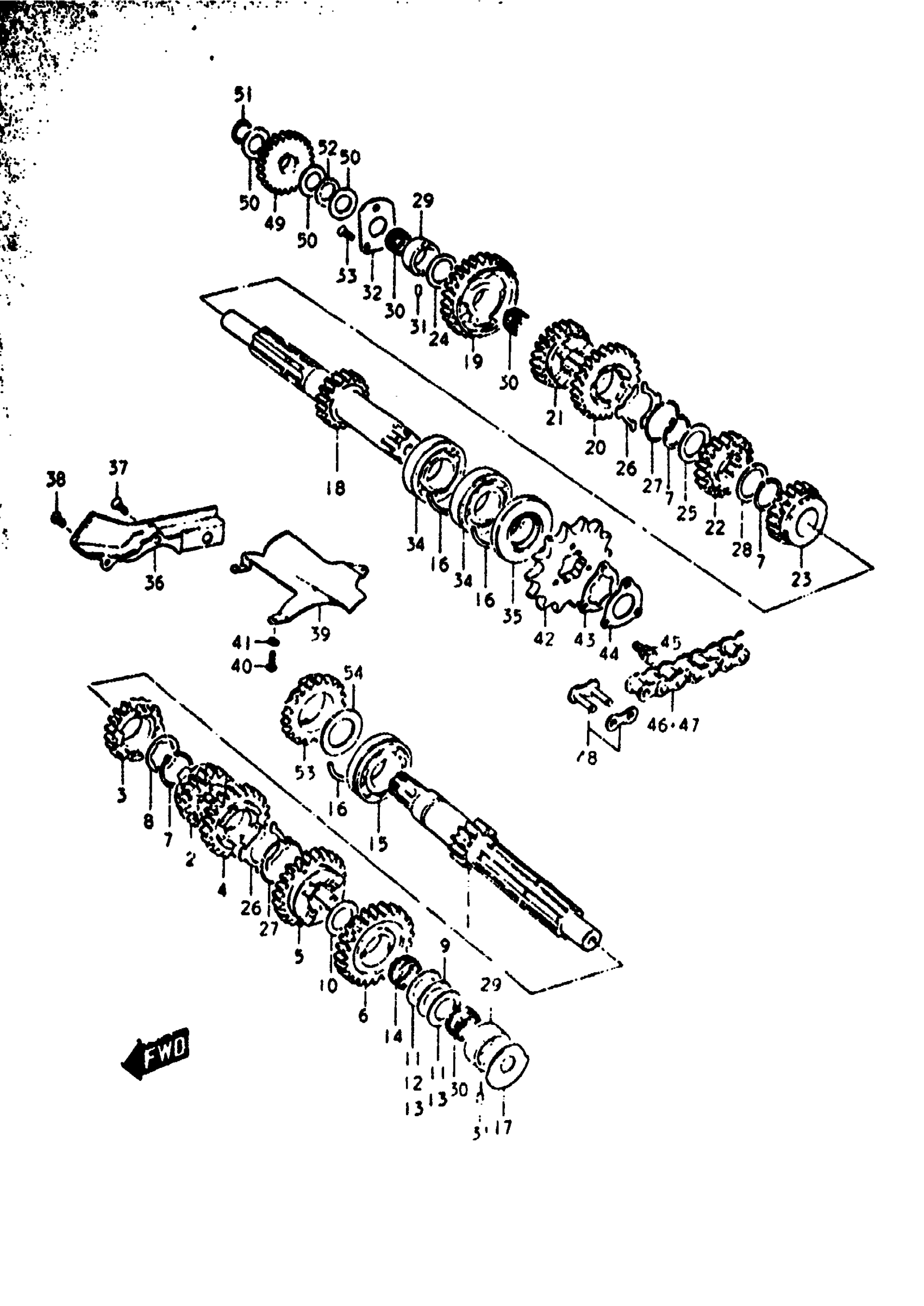

Suzuki GT380 (1972) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | NT:12

24121-33000

Unavailable

2

GEAR, 2ND DRIVE | NT:16

24221-18001

Unavailable

3

GEAR, 3RD DRIVE | NT:19

24231-18001

Unavailable

4

GEAR, 4TH DRIVE | NT:21

24241-18003

Unavailable

5

GEAR, 5TH DRIVE | NT:23 FROM 24251-18002

24251-18003

Unavailable

6

GEAR, 6TH DRIVE | NT:24

24261-18001

Unavailable

7

SNAP RING

09380-25003

$3.04

8

LOCK WASHER

09167-25004

Unavailable

9

WASHER | 17x29x1 This part replaces 09160-17005.

09160-17022

$3.23

10

WASHER, 2ND DRIVE GEAR | 17x30x1 FROM 09160-17001 This part replaces 08211-17301.

09181-17223

$2.96

11

THRUST WASHER | 2~4)21x30x1

09160-21005

$2.06

12

WASHER | 0~1)17x29x1.5 TO 08211-17282 This part replaces 09160-17003.

08211-17282

$2.70

13

THRUST WASHER | 0~2)17x29x1.2

09160-17007

Unavailable

14

BEARING | 17x21x9.8

09263-17004

$12.03

15

BEARING | 25x52x15

09262-25013

Unavailable

16

O RING

09390-52002

Unavailable

17

RETAINER, COUNTERSHAFT

24741-10000

Unavailable

18

DRIVESHAFT | NT:17 FROM 24131-33000

24131-33001

Unavailable

19

GEAR, 1ST DRIVEN | NT:28

24311-18000

Unavailable

20

GEAR, 2ND DRIVEN | NT:24

24320-18002

Unavailable

21

GEAR, 3RD DRIVEN | NT:21

24331-18002

Unavailable

22

GEAR, 4TH DRIVEN | NT:19

24341-18003

Unavailable

23

GEAR, 5TH DRIVEN | NT:18 FROM 24351-18003

24351-18004

Unavailable

24

THRUST WASHER | 17x28x3

09160-17010

Unavailable

25

WASHER | 25x33x1

09160-25013

Unavailable

26

RING

09399-22003

Unavailable

27

CIRCLIP

09380-38001

Unavailable

28

THRUST WASHER | 25x32x1 FROM 09160-25003

08211-25321

$3.27

29

BUSHING

09300-21001

Unavailable

30

BEARING

09263-17001

$21.82

31

PIN This part replaces 06211-04063.

04221-04069

$2.12

32

RETAINER, DRIVESHAFT

24751-33000

Unavailable

33

SCREW This part replaces 02122-06168.

02122-06167

$1.49

34

BEARING

08163-62050

$27.58

35

OIL SEAL

09283-25002

Unavailable

36

CUP, OIL RESERVIOR

24871-33000

Unavailable

37

SCREW This part replaces 02122-06128.

02122-06127

$1.84

38

SCREW This part replaces 02112-06128.

02112-06127

$1.84

39

PLATE, OIL GUIDE

24881-33000

Unavailable

40

SCREW This part replaces 02112-05168.

02112-05167

$1.97

41

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

42

SPROCKET, ENGINE | NT:14, OPT

27511-33000

Unavailable

42

SPROCKET, ENGINE | NT:15

27511-33600

Unavailable

43

PLATE, ENGINE SPROCKET

27512-33000

Unavailable

44

PLATE

09167-25008

Unavailable

45

BOLT This part replaces 01112-06128.

01500-06127

$1.97

46

NO DESCRIPTION AVAILABLE | DID 50HDS 104l This part replaces 27600-33012.

27600-33020

Unavailable

47

CHAIN, EXTENTION | DID 50HDS 4l OPT

27600-31700

Unavailable

47

CHAIN, EXTENTION | RK 50SH 4l OPT

27600-33700

Unavailable

48

JOINT, CHAIN | DID 50HDS OPT

27620-31012

Unavailable

48

JOINT, CHAIN | RK 50SH OPT

27620-33700

Unavailable

49

GEAR, KICK STARTER IDLE | NT:29

26260-33000

Unavailable

50

WASHER, 2ND DRIVE GEAR | 17x30x1 FROM 09160-17001 This part replaces 08211-17301.

09181-17223

$2.96

51

CIRCLIP

09380-17001

$1.98

52

WASHER

09164-17002

Unavailable

53

GEAR, KICK STARTER DRIVEN | NT:21

26281-33001

Unavailable

54

WASHER

09160-25009

$5.36
