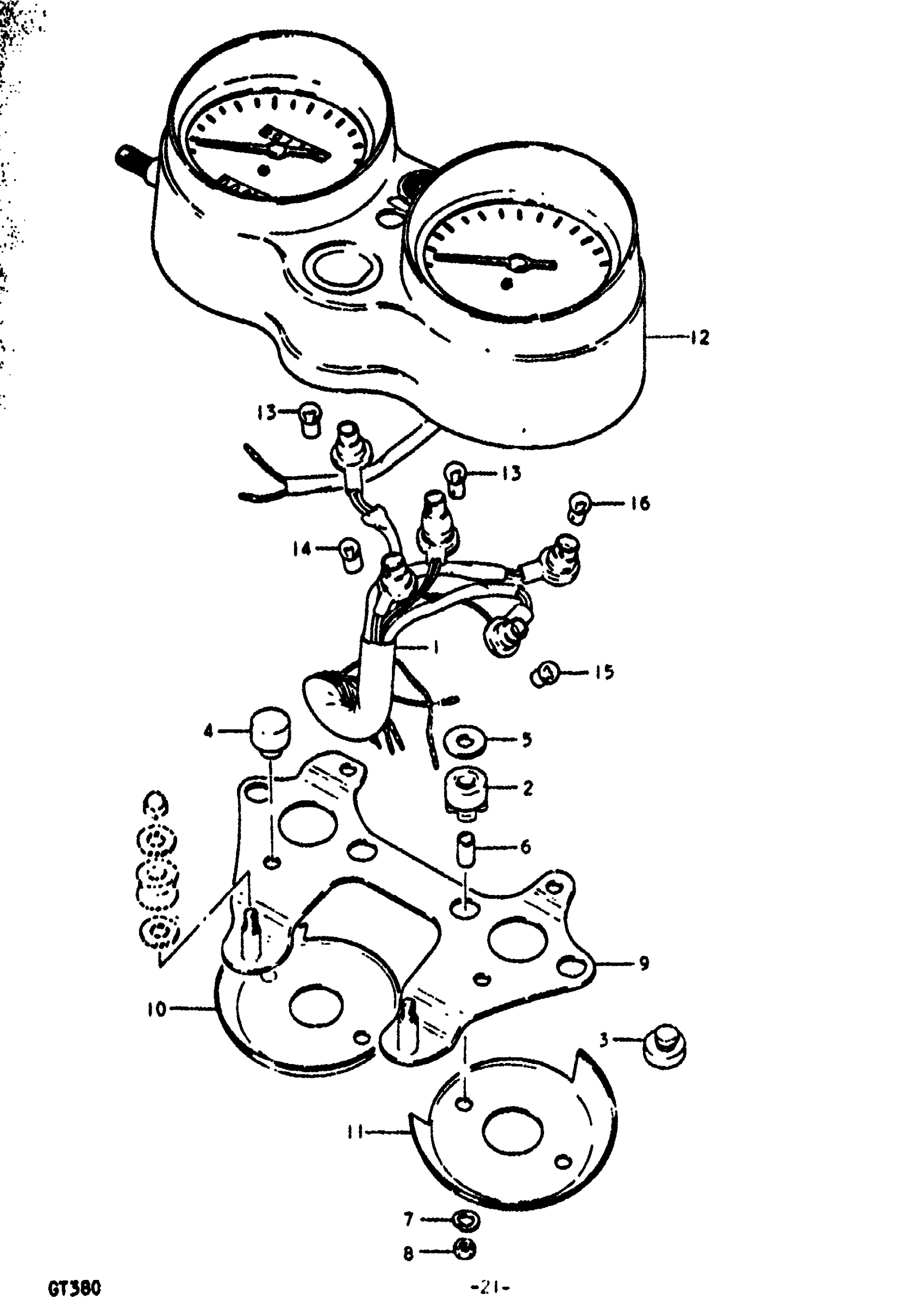

Suzuki GT380 (1972) SPEEDOMETER - TACHOMETER (-F.NO.22744) Diagram

#

Description
Price

SPEEDOMETER/TACHOMETER ASSY | TO 34100-33614; Includes Item(s) 1 - 12

34000-33610-999

Unavailable

1

SOCKET ASSY

34170-33600

Unavailable

2

CUSHION (1)

34955-16420

$4.43

3

CUSHION (2)

34955-33600

Unavailable

4

CUSHION (3)

34956-33600

Unavailable

5

WASHER

34973-16420

Unavailable

6

SPACER

34972-16420

Unavailable

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

.NUT This part replaces 08311-11068.

08310-00067

$2.13

9

BRACKET

34950-33600

Unavailable

10

PLATE, SPEEDOMETER UNDER This part replaces 34960-33600.

34960-33602

Unavailable

11

PLATE, TACHOMETER UNDER This part replaces 34961-33600.

34961-33602

Unavailable

12

NO DESCRIPTION AVAILABLE | FROM 34051-33600 This part replaces 34051-33601.

34051-33602

Unavailable

13

BULB, PILOT | 12V, 3.4W

09471-12001

$1.65

14

BULB, NUTRAL | 12V, 3.4W

09471-12001

$1.65

15

BULB, HIGH BEAM INDICATOR | 12V, 3.4W

09471-12001

$1.65

16

BULB, TURN SIGNAL | 12V, 1.7W

09471-12004

$2.69
