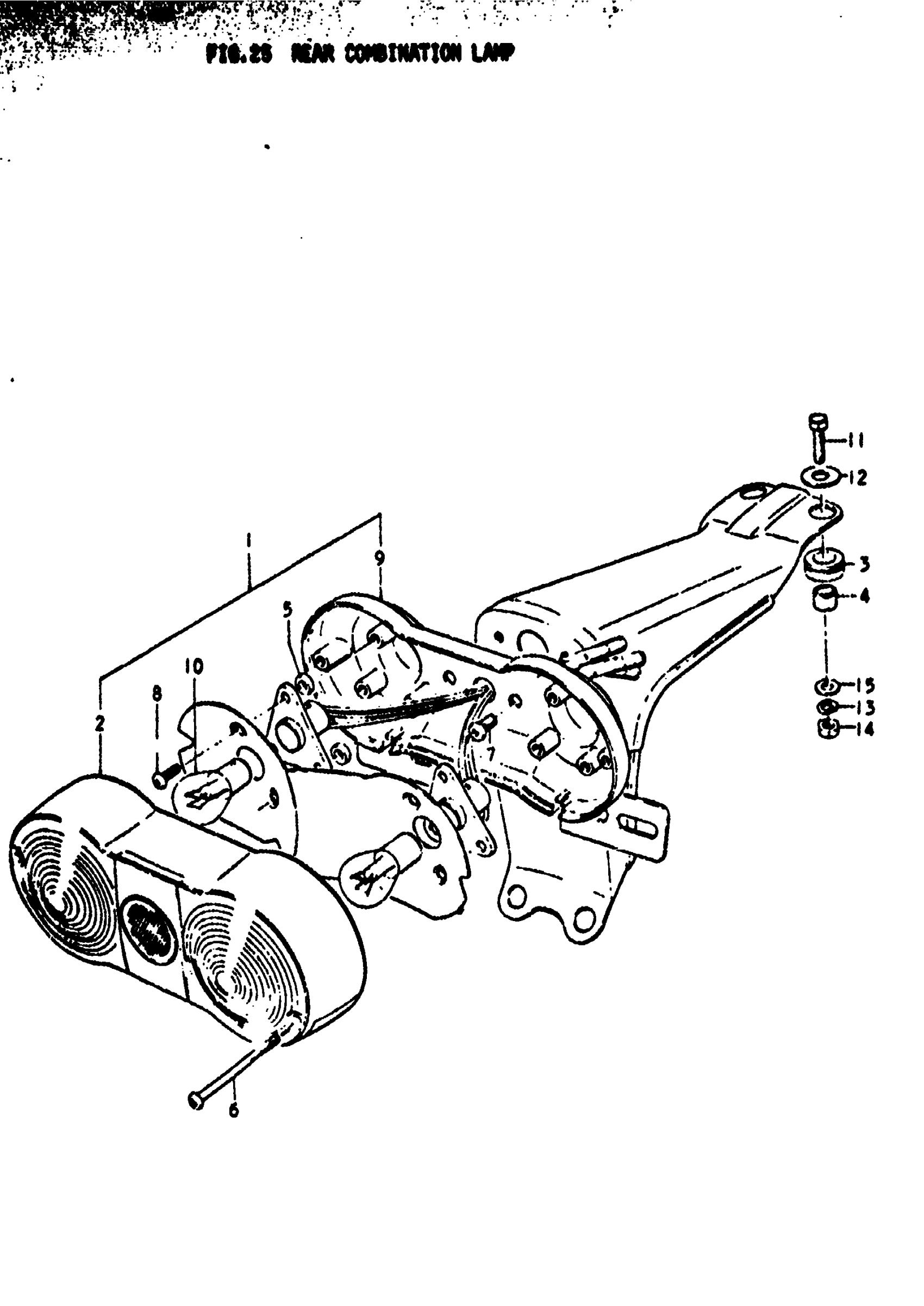

Suzuki GT380 (1972) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-31611

Unavailable

2

LENS

35712-31610

Unavailable

3

CUSHION | 10x20x8.2

35765-15010

Unavailable

4

SPACER | 7x10x8 This part replaces 35766-15010.

35766-37110

$5.28

5

CUSHION | 4.5x12x6

35765-31610

Unavailable

6

SCREW This part replaces 02111-04508.

02112-0450A

$1.51

7

SCREW This part replaces 02111-05087.

02112-05087

$1.49

8

SCREW This part replaces 02111-04107.

02112-04107

$1.55

9

HOUSING

35715-31610

Unavailable

10

BULB | 12V, 23/8W

09471-12035

$4.49

11

BOLT, GEAR SHIFT ARM This part replaces 09100-06039.

01500-0625A

$1.78

12

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

.NUT This part replaces 08311-11068.

08310-00067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13
