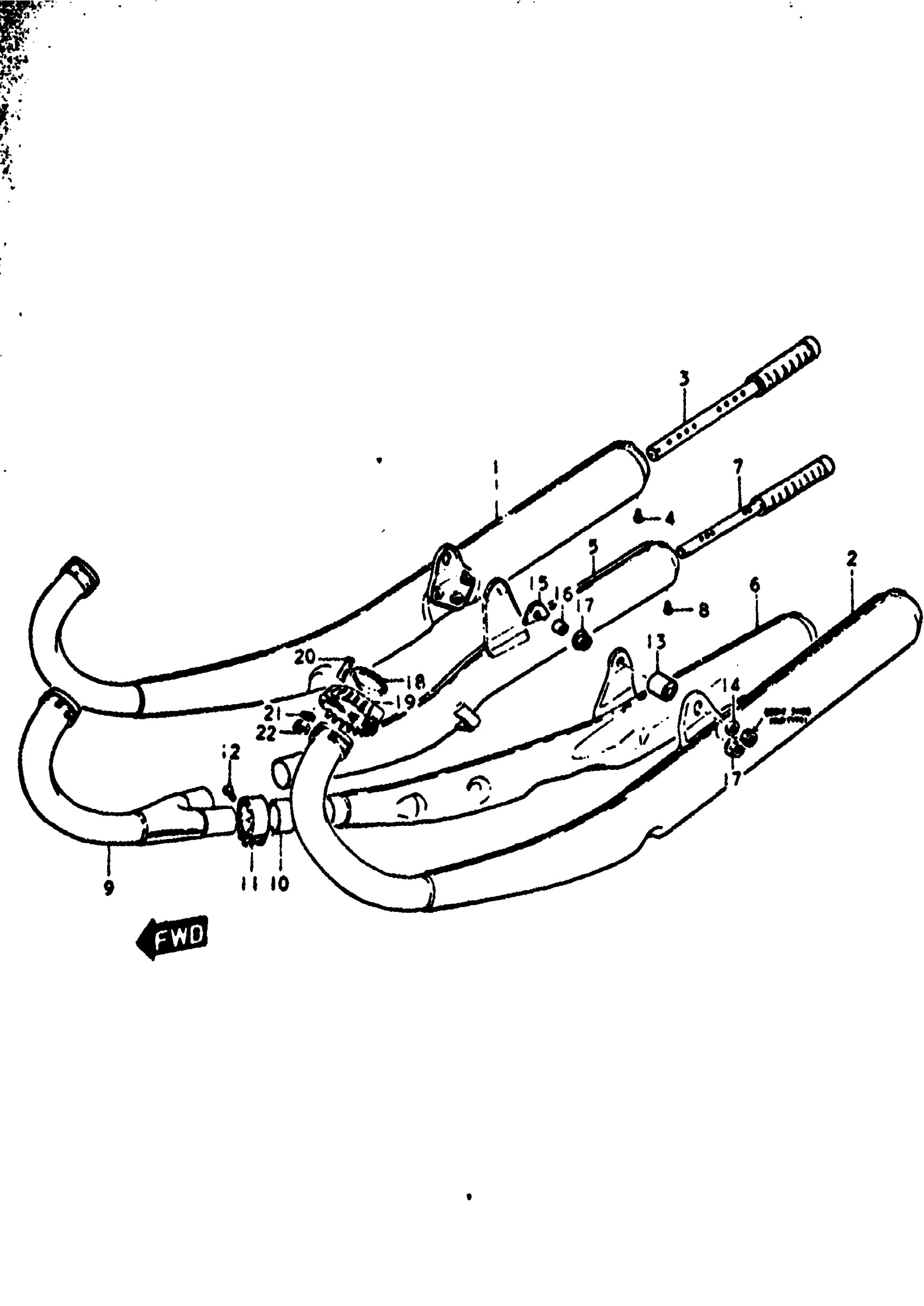

Suzuki GT380 (1972) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14301-33000.

14301-33000-H01

Unavailable

2

MUFFLER ASSY, LH | Includes Item(s) 3 - 4

14302-33000

Unavailable

3

PIPE, BAFFLE

14510-18700

Unavailable

4

SCREW This part replaces 02112-05068.

09125-05122

$2.06

5

MUFFLER ASSY, CENTER RH | *SEE NOTE 1.

14303-33001

Unavailable

5

MUFFLER ASSY, CENTER RH | TO 14303-33001 F.NO.~16175

14303-33600

Unavailable

6

NO DESCRIPTION AVAILABLE | *SEE NOTE 1. This part replaces 14304-33001.

14304-33001-H01

Unavailable

6

MUFFLER ASSY, CENTER LH | TO 14304-33001 F.NO.~16175; Includes Item(s) 7 - 8

14304-33600

Unavailable

7

PIPE, BAFFLE | FROM 14510-26000

14510-36100

Unavailable

8

SCREW This part replaces 02112-05068.

09125-05122

$2.06

9

PIPE, EXHAUST CENTER | FROM 14170-33000

14170-33001

Unavailable

10

CONNECTOR, CENTER MUFFLER

14771-06090

$10.14

11

CLAMP | FROM 09402-00048

09402-36708

Unavailable

12

SCREW This part replaces 02112-06208.

02112-06207

$1.78

13

BUSHING This part replaces 09319-10019.

09319-10009

$7.62

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

15

DAMPER

14770-33000

Unavailable

16

SPACER | 10.1x15.4x4.8

09180-10038

Unavailable

17

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

18

GASKET,EXHAUST This part replaces 14181-18010.

14181-36A00

$9.17

19

CLAMP, EXHAUST PIPE

14182-33000

Unavailable

20

STUD BOLT (L:30) This part replaces 09108-08038.

09108-08142

$3.18

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

NUT This part replaces 08312-11088.

08310-00087

$2.13
