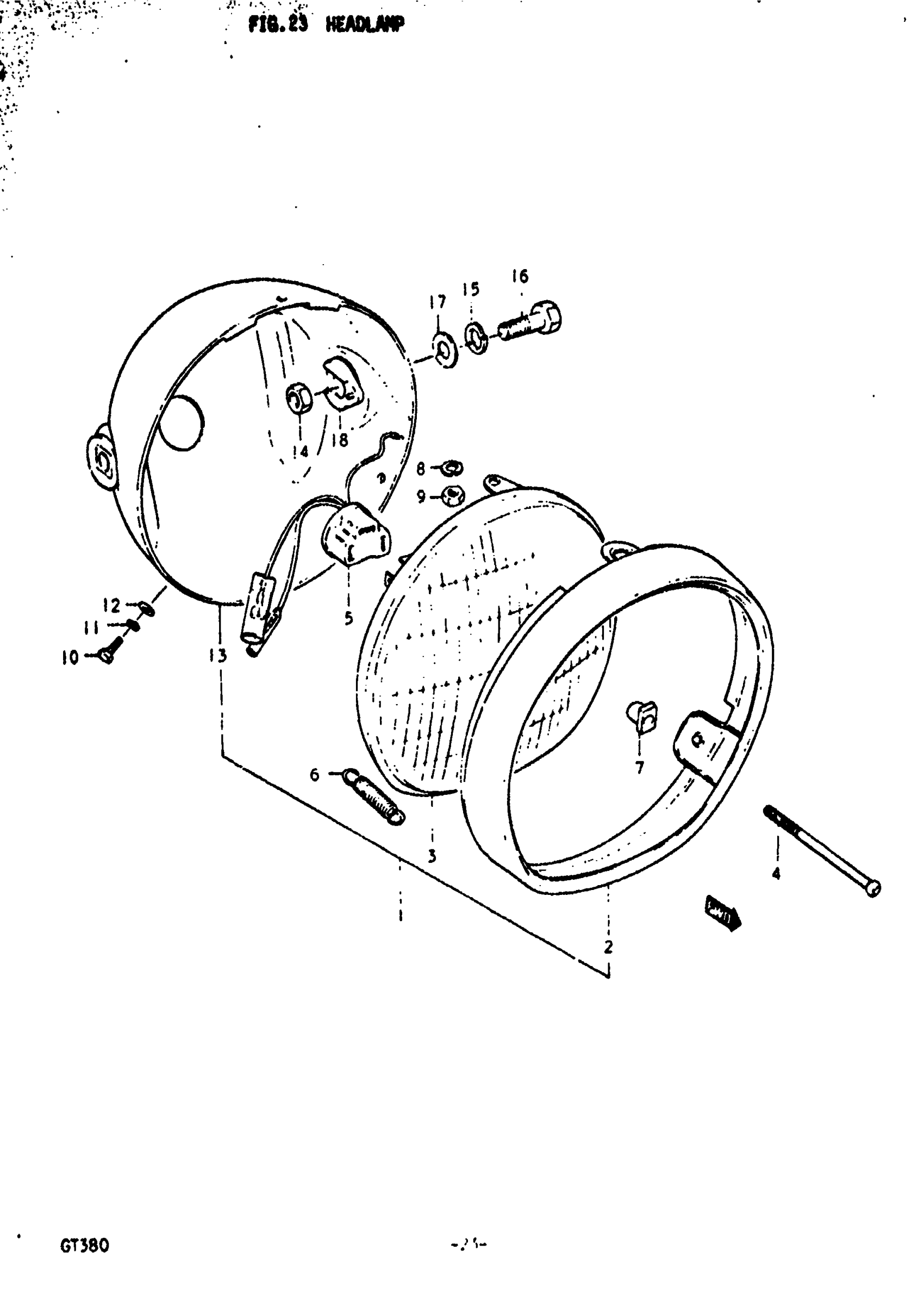

Suzuki GT380 (1972) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-33610

Unavailable

2

RIM

35111-33610

Unavailable

3

UNIT

35121-33610

Unavailable

4

SCREW

35151-33610

Unavailable

5

SOCKET

35171-33610

Unavailable

6

SPRING

35154-11610

Unavailable

7

NUT

35152-15611

$3.25

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

NUT This part replaces 08311-11058.

08310-00057

$1.84

10

SCREW This part replaces 02231-05128.

02122-05127

$1.93

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

WASHER This part replaces 08322-21058.

08322-01057

$2.13

13

NO DESCRIPTION AVAILABLE This part replaces 51810-33031-157.

51810-33031-737

Unavailable

13

HOUSING, HEADLAMP

51810-33031-215

Unavailable

14

NUT This part replaces 08312-12108.

08310-00107

$2.19

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

BOLT

01211-10307

Unavailable

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

SPACER

51821-33030

Unavailable
