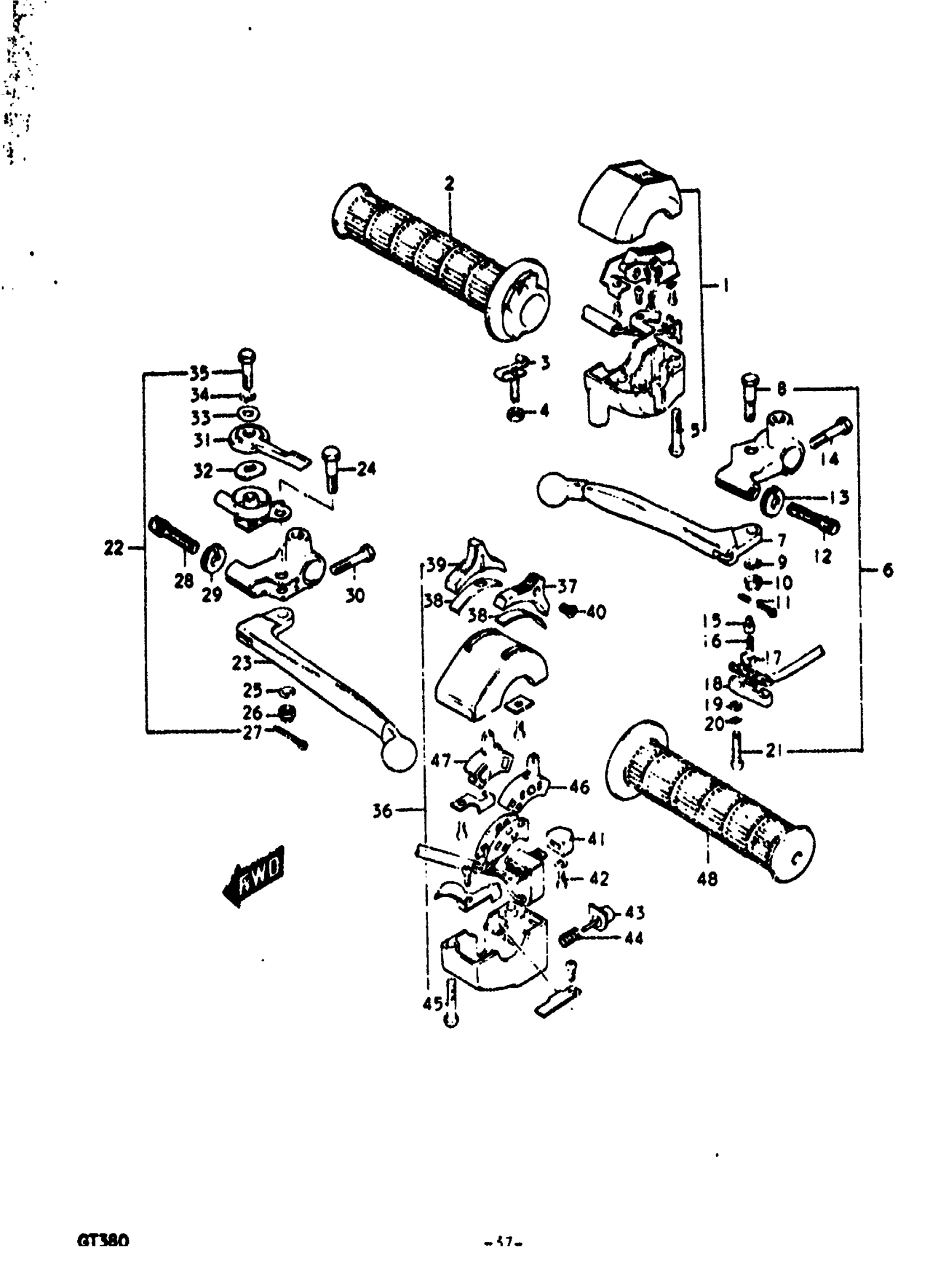

Suzuki GT380 (1972) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | TO 57100-33011; Includes Item(s) 2 - 5

57100-33010

Unavailable

2

GRIP, THROTTLE | TO 57110-33012 This part replaces 57110-33010.

57110-33012

Unavailable

3

ADJUSTER, THROTTLE GRIP

57170-11011

Unavailable

4

NUT This part replaces 08311-11058.

08310-00057

$1.84

5

SCREW This part replaces 02111-05257.

02112-05257

$1.49

6

LEVER ASSY, BRAKE | TO 57300-30701; Includes Item(s) 7 - 21 This part replaces 57300-33010.

57300-30501

Unavailable

7

LEVER, BRAKE This part replaces 57420-33010.

57420-18602

Unavailable

8

BOLT This part replaces 57431-11010.

57431-11013

$6.31

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

NUT, LEVER PIVOT

57433-11010

$5.64

11

PIN This part replaces 04111-16158.

04111-1620A

$1.49

12

ADJUSTER, CABLE

57441-11010

$5.62

13

NUT, CABLE ADJUSTER

57442-11010

$2.79

14

BOLT | TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

15

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

16

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

17

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

18

COVER | TO 57481-33010 This part replaces 57481-18600.

57481-33010

$5.84

19

WASHER This part replaces 08322-21038.

08322-01037

$1.93

20

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

21

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

22

NO DESCRIPTION AVAILABLE | Includes Item(s) 23 - 35 This part replaces 57500-31010.

57500-31601

Unavailable

23

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

24

BOLT, PIVOT

57431-31010

$9.32

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

NUT, PIVOT

57433-11010

$5.64

27

PIN This part replaces 04111-16158.

04111-1620A

$1.49

28

ADJUSTER, CABLE

57441-11010

$5.62

29

NUT, CABLE ADJUSTER

57442-11010

$2.79

30

BOLT | TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

31

LEVER, STARTER

58721-03010

Unavailable

32

WASHER, ADJUSTER

58722-03010

$3.71

33

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

34

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

35

BOLT This part replaces 01112-06128.

01500-06127

$1.97

36

SWITCH ASSY, HANDLE | TO 57700-33011; Includes Item(s) 37 - 47

57700-33010

Unavailable

37

KNOB, UPPER | TO 57712-33011

57712-33010

Unavailable

38

PLATE, UPPER KNOB

57714-33010

$3.25

39

KNOB, LIGHTING This part replaces 57713-33010.

57713-33011

$5.24

40

SCREW This part replaces 02121-03068.

02122-03067

$1.80

41

KNOB, LOWER

57742-33010

Unavailable

42

SCREW This part replaces 02121-03068.

02122-03067

$1.80

43

BUTTON, HORN

57850-31010

Unavailable

44

SPRING, HORN BUTTON

57761-26010

Unavailable

45

SCREW This part replaces 02111-05207.

02112-05207

$1.97

46

BLOCK, DIMMER SWITCH

57353-33010

Unavailable

47

BLOCK, LIGHTING SWITCH

57734-33010

Unavailable

48

GRIP, LH

57211-33010

Unavailable
