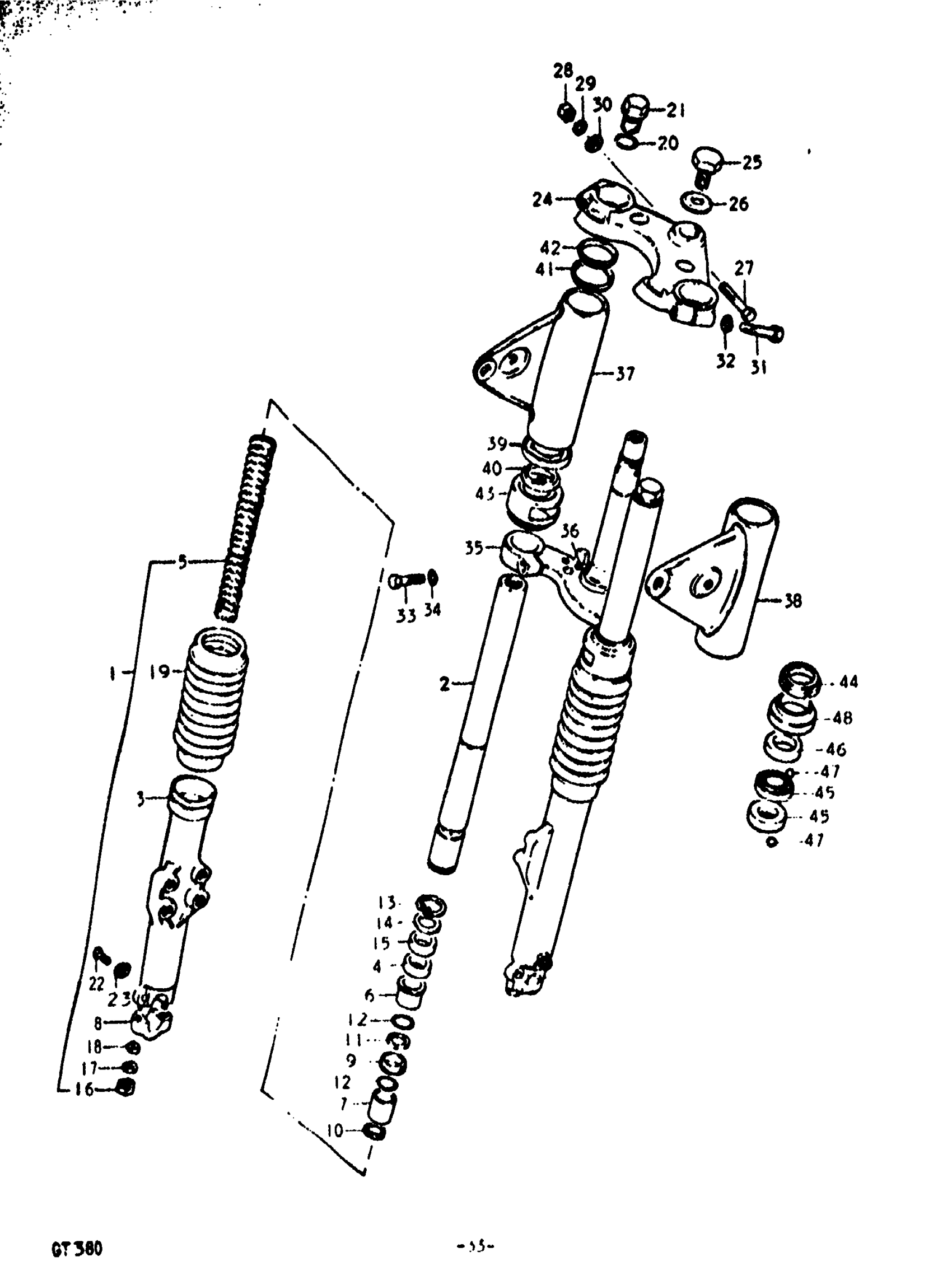

Suzuki GT380 (1972) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK | FROM 51103-33030; Includes Item(s) 2 - 23

51103-33031

Unavailable

2

TUBE, INNER

51111-33030

Unavailable

3

TUBE, OUTER

51130-33031

Unavailable

4

RING This part replaces 51155-33030.

51158-33730

Unavailable

5

SPRING, FORK

51171-33030

Unavailable

6

GUIDE, INNER TUBE

51152-33030

Unavailable

7

PISTON, INNER TUBE

51112-33030

Unavailable

8

HOLDER, AXLE

51132-31030

Unavailable

9

VALVE, DAMPER

51114-33030

Unavailable

10

SNAP RING

51119-33030

Unavailable

11

RING, VALVE STOPPER

51118-33030

Unavailable

12

RING, PISTON STOPPER

51116-33030

Unavailable

13

CIRC@IP

51156-33030

Unavailable

14

RING

51158-33730

Unavailable

15

OIL SEAL This part replaces 51153-33030.

51153-02B00

$20.06

16

NUT This part replaces 08311-11088.

08310-00087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-21088.

08322-01087

$2.13

19

BOOT

51571-33030

Unavailable

20

O RING

51181-33030

Unavailable

21

CAP, INNER TUBE

51351-33030

Unavailable

22

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

23

GASKET

51183-33030

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 51311-33001-019.

51311-33002-291

Unavailable

25

BOLT | 10 SCREW, L:20

09104-10005

Unavailable

26

WASHER

09160-10036

Unavailable

27

BOLT This part replaces 01122-08508.

01500-08507

$3.05

28

NUT This part replaces 08312-12087.

08310-00087

$2.13

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

WASHER This part replaces 08322-11088.

08322-01087

$2.13

31

BOLT This part replaces 01121-10407.

01500-10407

$3.55

32

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

33

BOLT This part replaces 01122-10408.

01500-10407

$3.55

34

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

35

STEM, STEERING | FROM 51410-33000

51410-33001

Unavailable

36

OUTER RACE, STEERING LOWER

51621-33001

$16.25

37

NO DESCRIPTION AVAILABLE This part replaces 51530-33000-157.

51500-33810-126

Unavailable

37

NO DESCRIPTION AVAILABLE This part replaces 51530-33000-215.

51500-33810-126

Unavailable

38

NO DESCRIPTION AVAILABLE This part replaces 51540-33000-157.

51500-33810-126

Unavailable

38

NO DESCRIPTION AVAILABLE This part replaces 51540-33000-215.

51500-33810-126

Unavailable

39

SEAT, HEADLAMP BRACKET

51551-31000

Unavailable

40

CUSHION, HEADLAMP BRACKET

51553-33000

Unavailable

41

CAP, HEADLAMP BRACKET

51555-31000

Unavailable

42

CUSHION, BRACKET UPPER

51556-33000

Unavailable

43

CUIDE, BOOT

51570-31000

Unavailable

44

NUT, STEERING STEM

51631-28000

$17.37

45

PAUL, STEERING INNER | FROM 51611-33001

51611-33002

$13.81

46

RACE, STEERING OUTER UPPER

51621-30001

Unavailable

47

BALL, STEERING

06111-08003

$1.49

48

DUST SEAL

51643-30000

Unavailable
