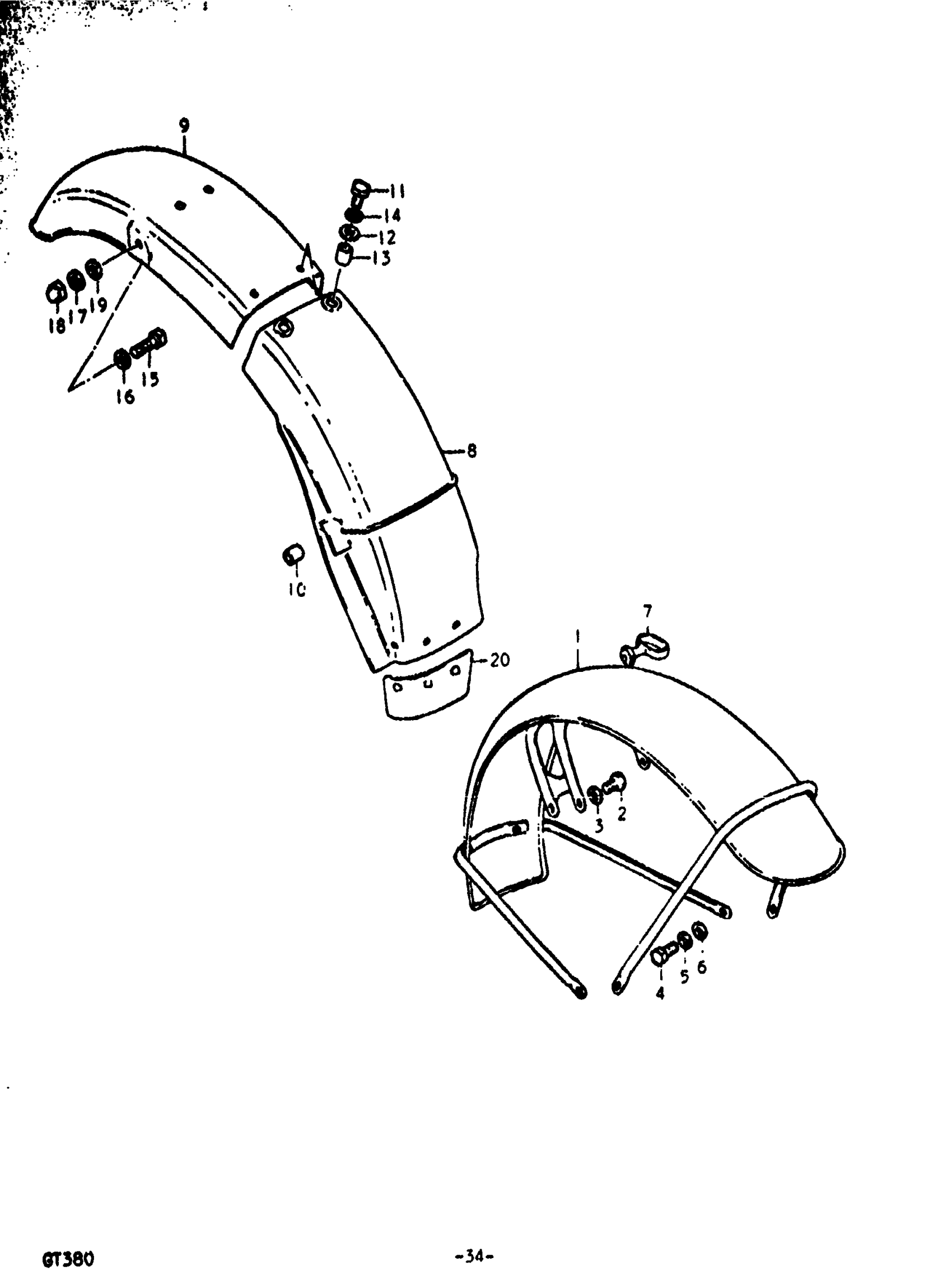

Suzuki GT380 (1972) FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 53100-33000 This part replaces 53100-34003.

53100-33810

Unavailable

2

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

GUIDE, METER CABLE | FROM 58621-21201 This part replaces 58621-21202.

58621-21204

$6.68

8

BODY, REAR FENDER FRONT | TO 63110-33001 USED WITH 09180-06041 ....2PCS. This part replaces 63112-33000.

63112-33004

Unavailable

9

BODY, REAR FENDER REAR | FROM 63113-33001

63113-33002

Unavailable

10

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

11

BOLT This part replaces 01112-06208.

01500-06207

$2.28

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

SPACER | 7.6x10x5

09180-07007

Unavailable

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

BOLT This part replaces 01122-08508.

01500-08507

$3.05

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

NUT This part replaces 08313-11087.

08313-10087

$2.28

19

WASHER | 8.5x18x7 This part replaces 09160-08014.

09160-08081

$2.56

20

MUD GUARD, REAR FENDER

63411-33000

Unavailable
