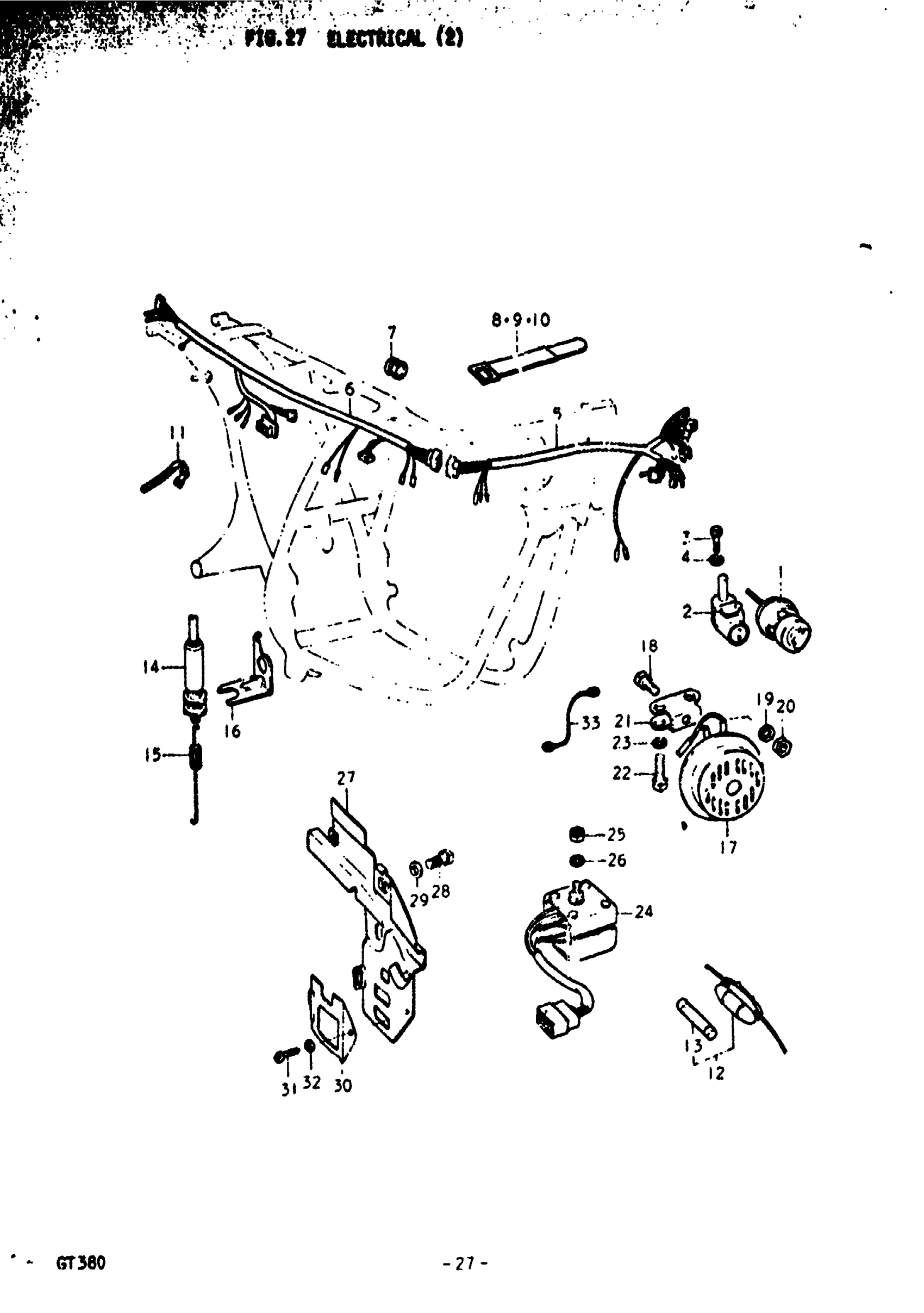

Suzuki GT380 (1972) ELECTRICAL (2) Diagram

#

Description
Price

1

SW ASSY IGNITIO | FROM 37110-33010 This part replaces 37110-33013.

37110-33017

Unavailable

2

LOCK ASSY, STEERING This part replaces 51900-33810.

51900-33811

Unavailable

3

SCREW This part replaces 02111-05257.

02112-05257

$1.49

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

WIRING HARNESS (1)

36610-33003

Unavailable

6

WIRING HARNESS (2)

36620-33000

Unavailable

7

GROMMET, WIRING HARNESS

36621-34000

Unavailable

8

CLAMP | L:140 FROM 09407-14301 This part replaces 09407-18301.

09407-18302

$2.28

9

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

10

CLAMP | L:110 FROM 09407-11301 This part replaces 09407-11302.

09407-18302

$2.28

11

CLAMP | L:149

09407-14401

$3.77

12

FUSE CASE ASSY | FROM 36740-31210 This part replaces 36740-31211.

36740-31212

Unavailable

13

FUSE | 20A

09481-20001

$2.93

14

SWITCH, REAR BRAKE LAMP | FROM 37740-27051 This part replaces 37740-19051.

37740-48071

$19.18

15

SPRING

09443-06023

$2.92

16

BRACKET, BRAKE LAMP SWITCH

37752-33001

Unavailable

17

HORN | FROM 38500-31010 This part replaces 38500-31012.

38500-31646

Unavailable

18

BOLT This part replaces 01122-08128.

01500-08127

$2.62

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

NUT This part replaces 08311-31088.

08310-00087

$2.13

21

BRACKET, HORN

38591-33000

Unavailable

22

BOLT This part replaces 01112-06128.

01500-06127

$1.97

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

RECTIFIER | FROM 32800-31020

32800-31021

Unavailable

25

.NUT This part replaces 08311-11068.

08310-00067

$2.13

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

PLATE, ELECTRIC HOLDER

37900-33001

Unavailable

28

BOLT This part replaces 01112-06108.

01500-06107

$2.06

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

PLATE, COUPLER HOLDER

37911-33001

Unavailable

31

SCREW This part replaces 02111-04087.

02112-04087

$1.49

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

33

LEAD WIRE This part replaces 36660-34000.

48528-78200

$5.82
