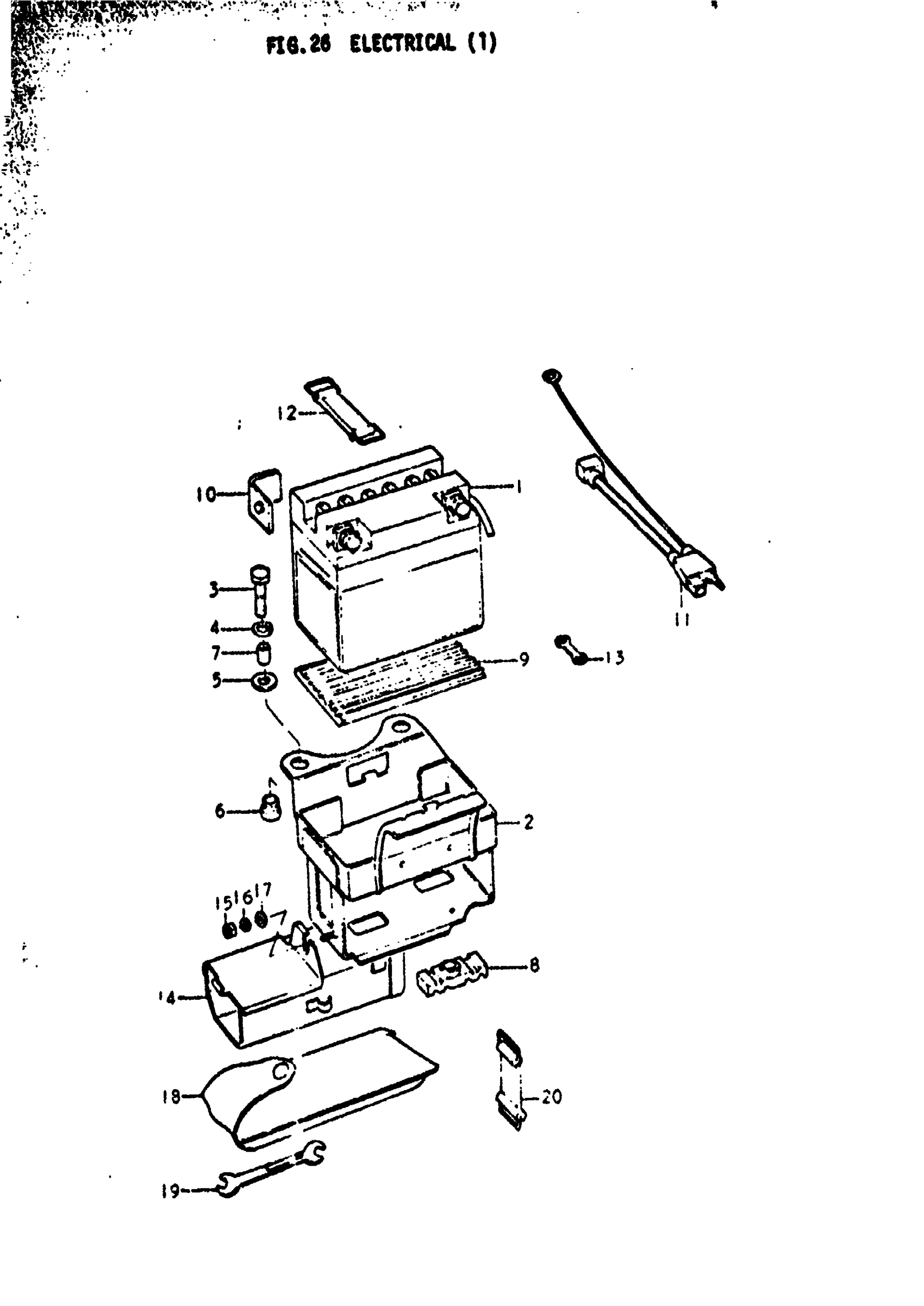

Suzuki GT380 (1972) ELECTRICAL (1) Diagram

#

Description
Price

1

YB7-A BATTERY(Y | 12N7-4A FROM 33610-01320 This part replaces 33610-33120.

33610-10311

$100.82

2

HOLDER, BATTERY

41540-33000

Unavailable

3

BOLT, REAR This part replaces 01112-06308.

01500-06307

$2.48

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER This part replaces 09160-06007.

09160-06084

$1.78

6

CUSHION

09320-08011

$3.54

7

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.44

8

CUSHION

09320-08012

Unavailable

9

PROTECTOR, BATTERY

33651-31000

$18.02

10

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

11

LEAD WIRE, BATTERY

36860-15020

Unavailable

12

BAND This part replaces 09462-00048.

09462-00048-XC0

Unavailable

13

CLAMP, BETTERY EXHAUST PIPE | TO 09404-07704 This part replaces 09401-00001.

09404-07702

Unavailable

14

HOLDER, TOOL

41550-33000

Unavailable

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

17

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

18

TOOL SET This part replaces 09800-00134.

09800-21033

$48.22

19

WRENCH, CONTACT POINT | OPT

09930-20111

Unavailable

20

BAND This part replaces 09462-00041.

09462-00041-XC0

Unavailable
