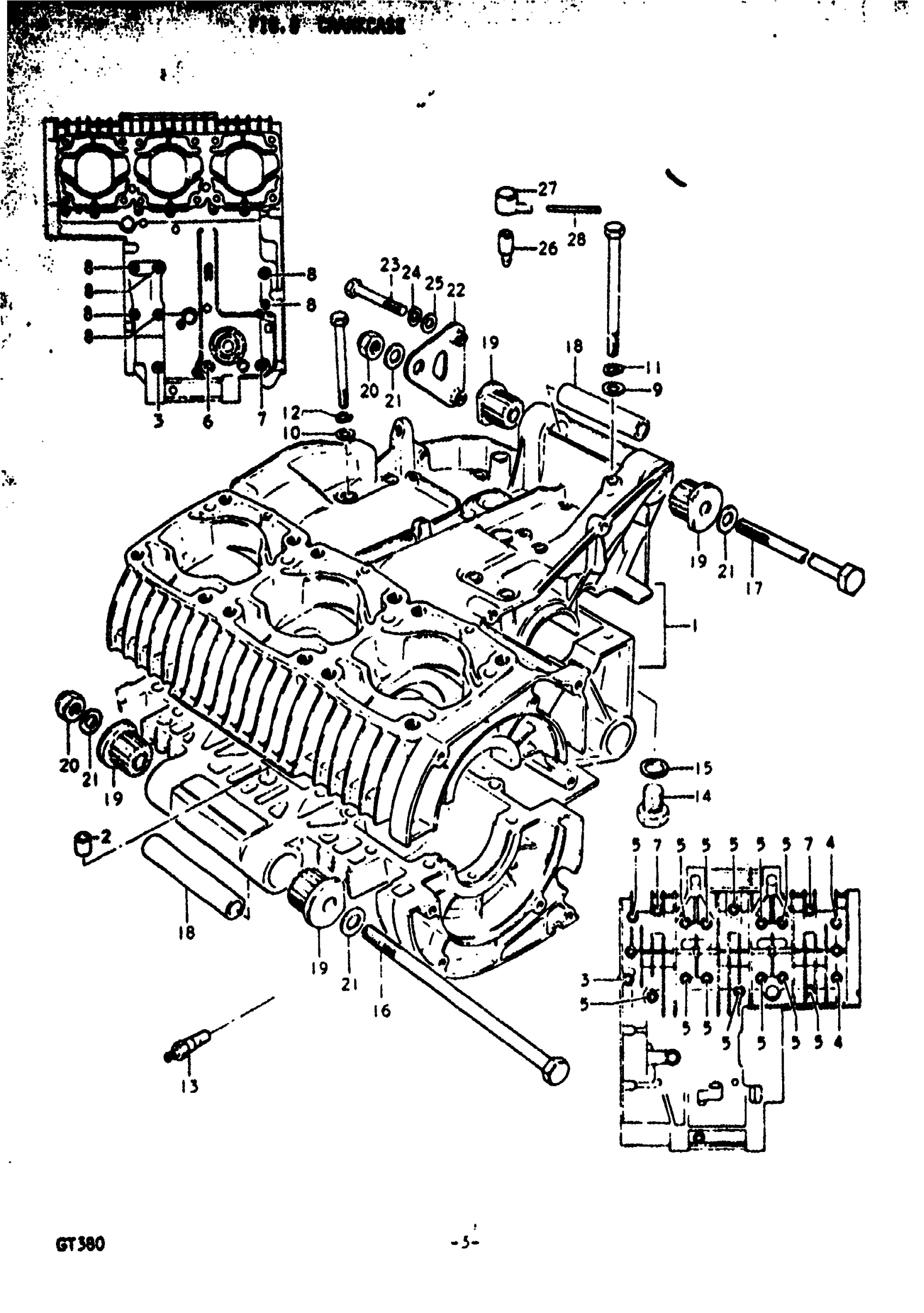

Suzuki GT380 (1972) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | TO 11300-33821 USED WITH 09263-16012 AND 09284-16002; Includes Item(s) 2 - 13

11300-33814

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01122-08958.

01500-0895A

$4.32

4

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

5

BOLT This part replaces 01122-08658.

01500-0865B

$3.49

6

BOLT This part replaces 01122-08558.

01500-08557

$3.16

7

BOLT This part replaces 01122-08458.

01500-08453

$2.50

8

BOLT 6X50 This part replaces 01112-06658.

09100-06038

Unavailable

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

VALVE, SKIS CHECK | INNER PART OF OLD CRANKCOSE SET.

16710-31011

Unavailable

14

PLUG, DRAIN | FROM 09247-14010 This part replaces 09247-14007.

09247-14025

$2.79

15

GASKET

09168-14004

$1.83

16

BOLT | 10x165

09100-10078

$12.70

17

BOLT | 10x170

09100-10079

Unavailable

18

SPACER

09180-10034

Unavailable

19

BUSH This part replaces 09319-10017.

09319-10084

Unavailable

20

NUT | FROM 09159-10001

09159-10011

$3.23

21

WASHER This part replaces 08322-11108.

08322-01107

$2.15

22

PLATE, ENGINE MOUNTING REAR

41590-33000

Unavailable

23

BOLT This part replaces 01122-08508.

01500-08507

$3.05

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER This part replaces 08322-11088.

08322-01087

$2.13

26

PLUG, BREATHER | TO 24822-20000 USED WITH 09344-03016 This part replaces 24821-09000.

24821-09001

$9.33

27

BREATHER PLUG C This part replaces 24822-20000.

24822-20001

$3.70

28

HOSE (3.5X6.5X600) | TO 09344-03020 This part replaces 09344-03016.

09351-35653-600

$4.64
