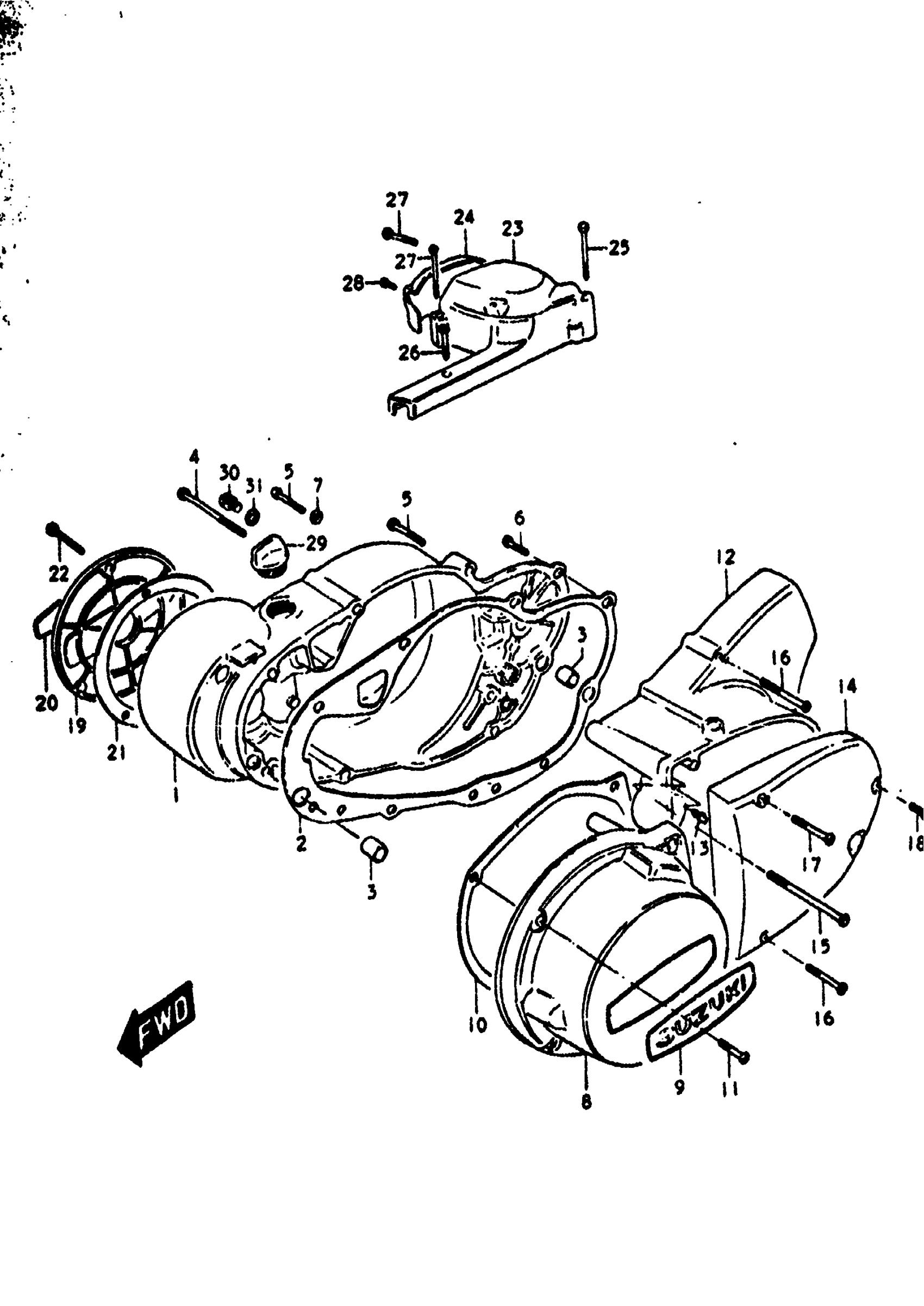

Suzuki GT380 (1972) COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 11341-33001 This part replaces 11341-33601.

11341-33602

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-33000.

11482-33001

Unavailable

3

PIN, A

09206-13004

$2.40

4

SCREW This part replaces 02112-06808.

02112-06807

$2.57

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

WASHER (6.5X18X2) | 6.5x18x2 This part replaces 09160-06013.

09160-06121

$3.38

8

COVER, GENERATOR | FROM 11351-33000

11351-33601

Unavailable

9

EMBLEM, GENERATOR COVER

68233-33000

Unavailable

10

GASKET, GENERATOR COVER

11483-33000

Unavailable

11

SCREW This part replaces 02112-06258.

02112-06257

$1.78

12

COVER, ENGINE SPROCKET INNER | FROM 11361-33000 This part replaces 11361-33600.

11361-33601

Unavailable

13

NIPPLE, GREASE

08351-11009

$7.51

14

COVER, ENGINE SPROCKET OUTER | FROM 11371-33000

11371-33600

Unavailable

15

SCREW This part replaces 02112-06858.

02112-06857

$2.62

16

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

17

SCREW This part replaces 02111-05357.

02112-05357

$1.49

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

CAP, CONTACT BREAKER | FROM 11300-34000 AND 11300-34830 USED WITH 68233-3 This part replaces 11300-34851.

11381-33600

Unavailable

20

EMBLEM, CONTACT BREAKER CAP

68233-34000

Unavailable

21

GASKET, CONTACT BREAKER CAP

11491-33000

$5.16

22

SCREW This part replaces 02111-05458.

02112-05457

$1.86

23

COVER, OIL PUMP (1)

11411-33000

Unavailable

24

COVER, OIL PUMP (2)

11412-33000

Unavailable

25

BOLT 5X45 This part replaces 01111-05458.

01550-05457

$2.47

26

BOLT This part replaces 01112-05258.

01500-0525A

$1.77

27

SCREW This part replaces 02111-05357.

02112-05357

$1.49

28

SCREW This part replaces 02112-05168.

02112-05167

$1.97

29

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

30

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

31

GASKET

09168-06001

$1.49
