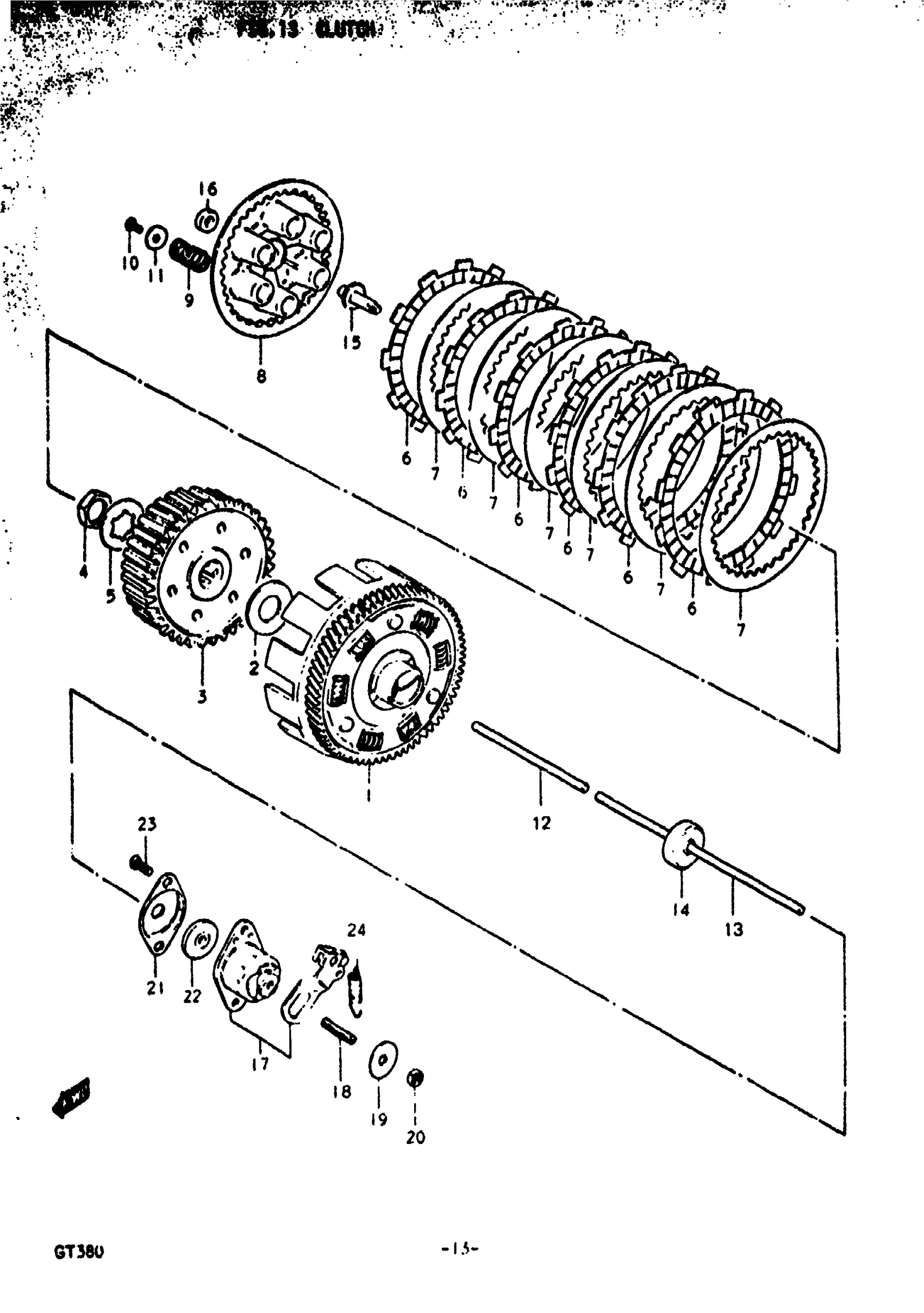

Suzuki GT380 (1972) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:68 FROM 21200-33002

21200-33003

Unavailable

2

THRUST WASHER | 20x44x3

09160-20015

$5.88

3

HUB, SLEEVE This part replaces 21411-30000.

21411-30001

Unavailable

4

NUT This part replaces 09140-20002.

09140-20001

$3.37

5

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

6

PLATE, CLUTCH DRIVE NO.2 This part replaces 21441-16500.

21442-37401

$18.67

7

PLATE, CLUTCH DRIVEN

21451-31000

$10.40

8

DISK, CLUTCH PRESSURE

21462-15000

Unavailable

9

SPRING

09440-19004

$2.50

10

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

12

ROD, CLUTCH PUSH (1) | L:123

23111-10000

Unavailable

13

ROD, CLUTCH PUSH (2) | L:177

23111-33000

Unavailable

14

SEAL,OIL(6X30X7 | 4.5x30x7 FROM 09285-06004 This part replaces 09285-06005.

09285-06009

$3.89

15

PIECE, CLUTCH PUSH

23121-15001

Unavailable

16

OIL SEAL | 10x17x5

09284-10002

$2.90

17

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 18 - 20

23200-33000

Unavailable

18

SCREW This part replaces 09134-06001.

09134-06010

$3.12

19

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

20

.NUT This part replaces 08311-31068.

08310-00067

$2.13

21

COVER, CLUTCH RELEASE SCREW

23241-33000

Unavailable

22

DUST SEAL

09285-06007

Unavailable

23

SCREW This part replaces 02112-06168.

02112-06167

$1.49

24

SPRING

09443-08001

$2.92
