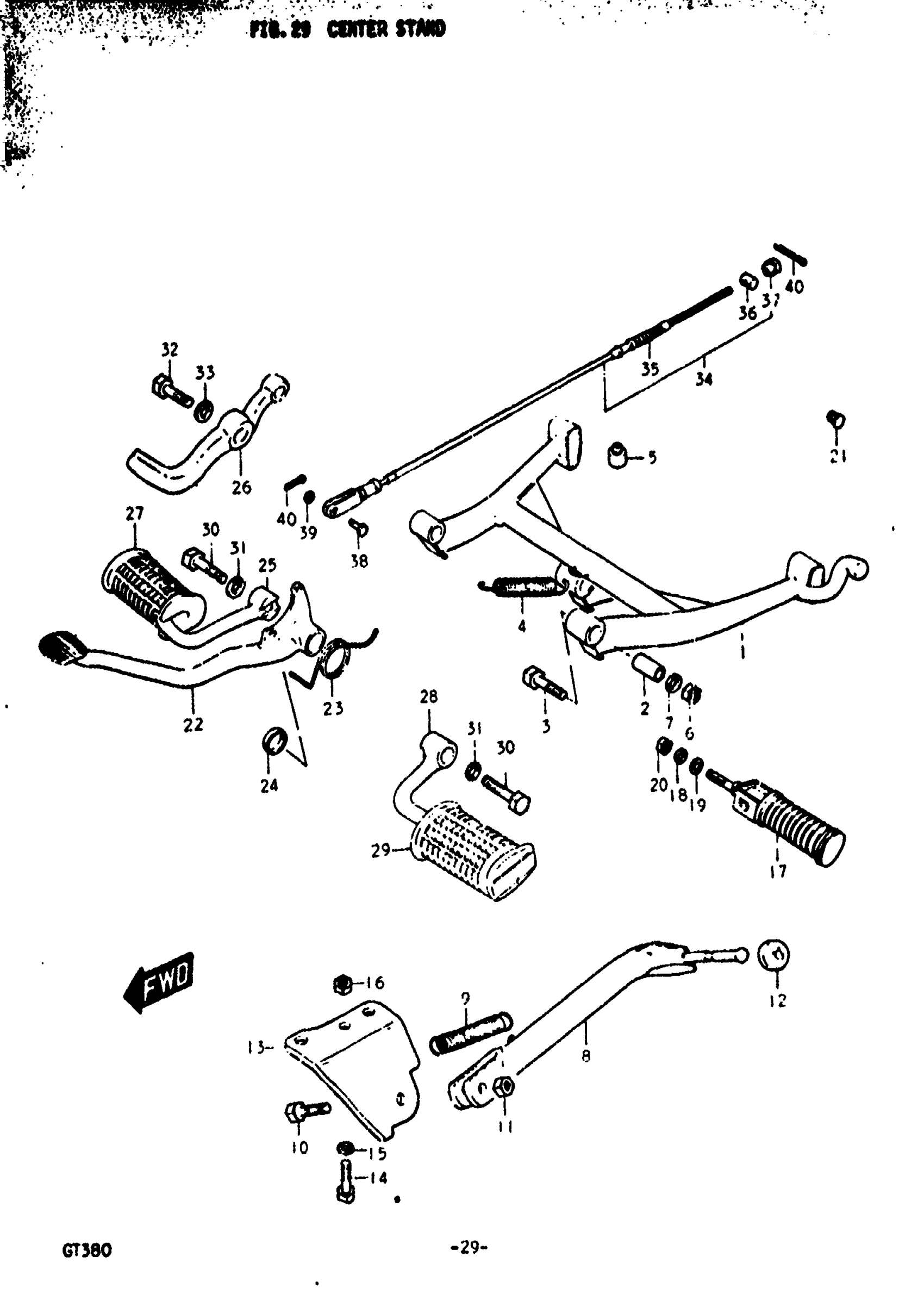

Suzuki GT380 (1972) CENTER STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-33000

Unavailable

2

SPACER | 10.4x16x30

09180-10001

$3.58

3

BOLT

09100-10006

Unavailable

4

SPRING This part replaces 09443-16005.

09443-16005-XC0

Unavailable

5

CUSHION

09321-10001

$2.61

6

NUT This part replaces 08312-12108.

08310-00107

$2.19

7

LOCK WASHER This part replaces 08321-21103.

08321-0110A

$1.84

8

STAND, PROP

42310-33000

Unavailable

9

SPRING This part replaces 09443-14005.

09443-14017

$3.04

10

BOLT

09100-10067

$2.61

11

NUT This part replaces 08312-32108.

08310-00107

$2.19

12

CUSHION

09320-07001

$2.92

13

BRACKET, PROP STAND

42330-31600

Unavailable

14

BOLT This part replaces 09100-10007.

09100-10287

$3.48

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

NUT This part replaces 08312-32108.

08310-00107

$2.19

17

FOOTREST, PILLION | 10SCREW

43600-31000

Unavailable

17

FOOTREST, PILLION | 12SCREW

43600-33000

Unavailable

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

WASHER This part replaces 08322-11108.

08322-01107

$2.15

20

NUT This part replaces 08312-32108.

08310-00107

$2.19

21

CAP This part replaces 09250-09001.

09250-09008

$1.54

22

PEDAL, BRAKE | FROM 43110-33001

43110-33002

Unavailable

23

SPRING

09448-39003

Unavailable

24

CAP, BRAKE PEDAL

43135-31000

Unavailable

25

FOOTRESTBAR, FRONT RH

43511-33001

Unavailable

26

FOOTRESTBAR, FRONT RH

43511-33002

Unavailable

27

RUBBER, FRONT FOOTREST RH

43551-33000

Unavailable

28

FOOTRESTBAR, FRONT LH

43521-33000

Unavailable

29

RUBBER, FRONT FOOTREST LH

43551-31000

Unavailable

30

BOLT

09104-12101

Unavailable

31

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

32

BOLT This part replaces 01122-08358.

01500-0835B

$3.04

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

CABLE ASSY, REAR BRAKE | Includes Item(s) 35 - 37

58500-31000

Unavailable

35

DUST SEAL

09287-05001

Unavailable

36

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

37

.NUT This part replaces 09150-06001.

09150-06010

$3.10

38

PIN

09200-05001

$1.65

39

WASHER This part replaces 08322-21068.

08322-01067

$2.13

40

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
