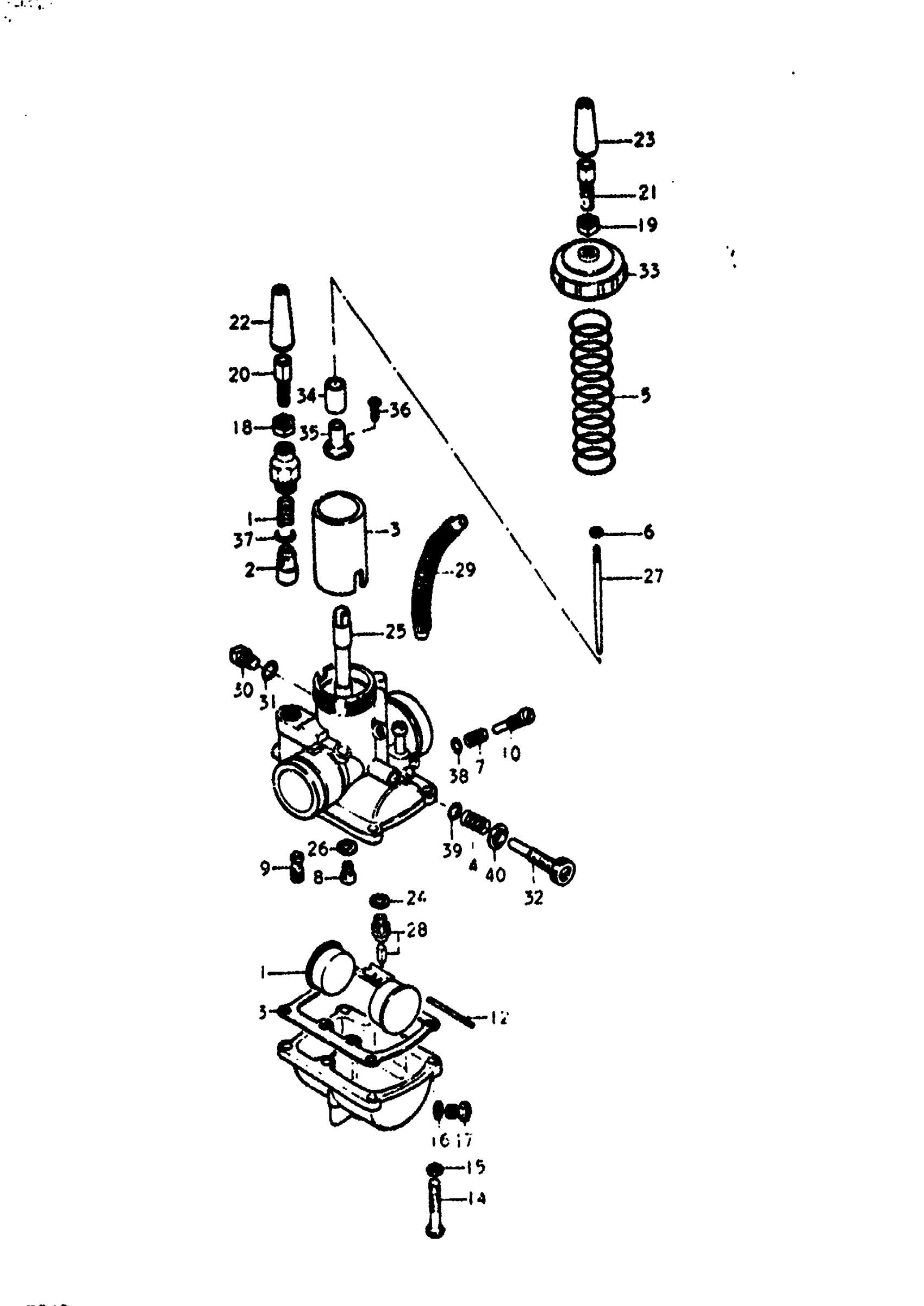

Suzuki GT380 (1972) CARBURETOR (MARKED : 33014) Diagram

#

Description
Price

CARBURETOR ASSY

13201-33014

Unavailable

CARBURETOR ASSY

13202-33014

Unavailable

CARBURETOR ASSY | Includes Item(s) 1 - 40

13203-33014

Unavailable

1

SPRING, STARTER LEVER

13417-18630

$6.00

2

VALVE, STARTER

13411-01010

$18.43

3

VALVE, THROTTLE MIDDLE & RH

13551-33013

Unavailable

3

VALVE, THROTTLE LH

13561-33013

Unavailable

4

SPRING, THROTTLE ADJUSTER

13268-01010

$5.28

5

SPRING, THROTTLE RETURN

13573-33011

Unavailable

6

CLIP, NEEDLE

13394-10010

$5.45

7

SPRING, PILOT AIR SCREW

13268-01010

$5.28

8

JET, MAIN (180) | #80 FROM 09491-80005 This part replaces 09491-80007.

09491-80008

Unavailable

8

JET, MAIN (87.5) | OPT #87.5 This part replaces 09491-87001.

09491-87005

$11.38

8

NO DESCRIPTION AVAILABLE | OPT #75 This part replaces 09491-75005.

09491-75009

Unavailable

9

JET, PILOT (22.5) | #22.5 This part replaces 09492-22002.

09492-22006

$11.38

10

SCREW, PILOT AIR | TO 13209-15011

13269-31011

Unavailable

11

FLOAT

13262-11010

Unavailable

12

.PIN, FLOAT

13254-01010

$3.62

13

GASKET, FLOAT CHAMBER | TO 13251-33110 This part replaces 13251-18010.

13251-33110

$9.03

14

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

15

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

16

GASKET, DRAIN PLUG

13249-05010

$1.98

17

PLUG, DRAIN | TO 13247-05010

13247-31010

Unavailable

18

NUT, CABLE ADJUSTER

13661-16600

$4.64

19

NUT, CABLE ADJUSTER

13661-31010

Unavailable

20

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

21

ADJUSTER, CABLE

13577-22600

$6.00

22

BOOT, CABLE ADJUSTER

13681-16601

$8.26

23

BOOT, CABLE ADJUSTER

13681-33010

$9.32

24

GASKET, VALVE SEAT

13392-58600

$1.82

25

JET, NEEDLE | 0-4

09494-00119

Unavailable

26

GASKET, NEEDLE JET

13382-03110

$2.80

27

NEEDLE, JET | 4DH7-2

13383-33010

$20.13

28

VALVE ASSY, NEEDLE This part replaces 13370-34010.

13370-30651

Unavailable

29

HOSE, MIDDLE CARBURETOR BOOST | TO 13683-31610

44390-15601

Unavailable

30

PLUG, ADJUSTER HOLE | FROM 13664-31010

13664-18654

$8.98

31

GASKET, HOLE PLUG

13663-31010

$2.80

32

ADJUSTER, THROTTLE VALVE

13267-33010

Unavailable

33

TOP, MIXING CHAMBER

13261-30010

Unavailable

34

COVER, MIXING CHAMBER

13394-33010

Unavailable

35

HOLDER, JET NEEDLE This part replaces 13398-34010.

13581-40200

Unavailable

36

SCREW This part replaces 13399-34010.

02112-3308A

$2.23

37

O RING, STARTER VALVE

13420-20010

Unavailable

38

O RING, PILOT AIR SCREW

13295-33010

$4.48

39

O RING This part replaces 13294-30010.

13278-02340

$1.91

40

COVER

13291-34010

Unavailable
