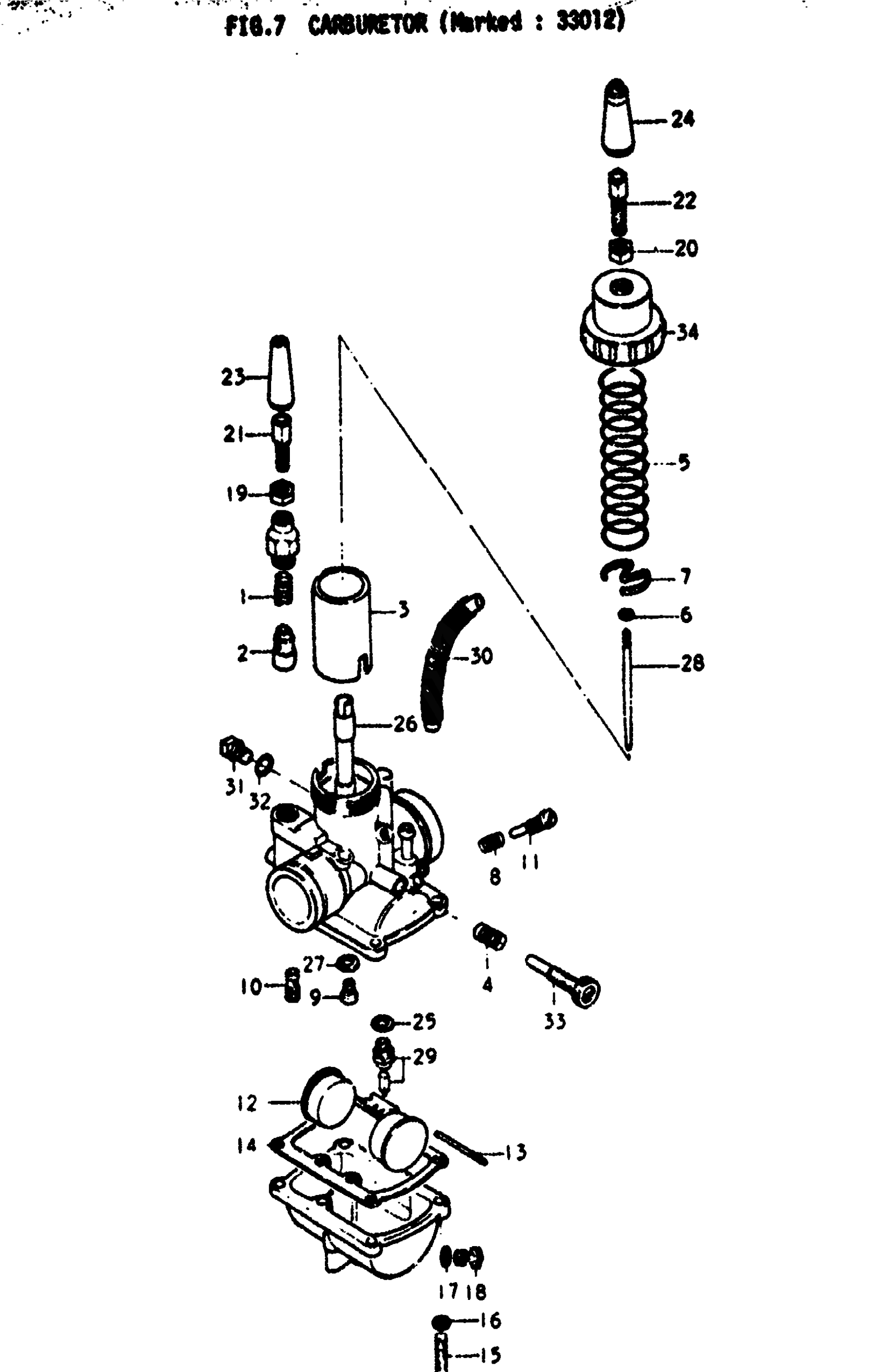

Suzuki GT380 (1972) CARBURETOR (MARKED : 33012) Diagram

#

Description
Price

CARBURETOR ASSY, RH | TO 13201-33014

13201-33012

Unavailable

CARBURETOR ASSY, MIDDLE | TO 13202-33014

13202-33012

Unavailable

CARBURETOR ASSY, LH | TO 13203-33014; Includes Item(s) 1 - 34

13203-33012

Unavailable

1

SPRING, STARTER LEVER

13417-18630

$6.00

2

VALVE, STARTER

13411-01010

$18.43

3

VALVE, THROTTLE LH

13551-33012

Unavailable

3

VALVE, THROTTLE MIDDLE & RH

13561-33012

Unavailable

4

SPRING, THROTTLE ADJUSTER

13268-01010

$5.28

5

SPRING, THROTTLE RETURN

13573-34010

Unavailable

6

CLIP, NEEDLE

13394-10010

$5.45

7

SEAT, THROTTLE VALVE SPRING | FROM 13581-28700

13581-28010

$7.95

8

SPRING, PILOT AIR SCREW

13268-01010

$5.28

9

JET, MAIN (180) | #80 FROM 09491-80005 This part replaces 09491-80007.

09491-80008

Unavailable

9

JET, MAIN (87.5) | OPT #87.5 This part replaces 09491-87001.

09491-87005

$11.38

9

NO DESCRIPTION AVAILABLE | OPT #75 This part replaces 09491-75005.

09491-75009

Unavailable

10

JET, PILOT (22.5) | #22.5 This part replaces 09492-22002.

09492-22006

$11.38

11

SCREW, PILOT AIR

13269-15010

Unavailable

12

FLOAT

13252-11010

$24.87

13

.PIN, FLOAT

13254-01010

$3.62

14

GASKET, FLOAT CHAMBER

13251-11010

$5.62

15

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

GASKET, DRAIN

13249-05010

$1.98

18

PLUG, DRAIN

13247-05010

$5.11

19

NUT, CABLE ADJUSTER

13661-16600

$4.64

20

NUT, CABLE ADJUSTER

13661-31010

Unavailable

21

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

22

ADJUSTER, CABLE

13577-31010

Unavailable

23

BOOT, CABLE ADJUSTER

13681-16601

$8.26

24

BOOT, CABLE ADJUSTER

13681-31010

Unavailable

25

GASKET, VALVE SEAT

13392-58600

$1.82

26

JET, NEEDLE | 0-4

09494-00094

Unavailable

27

GASKET, NEEDLE JET

13382-03110

$2.80

28

NEEDLE, JET | 4DH7-2

13383-33010

$20.13

29

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

$62.80

30

HOSE, MIDDLE CARBURETOR BOOST | TO 13683-31610

44390-15601

Unavailable

31

PLUG, ADJUSTER HOLE | FROM 13664-31010

13664-18654

$8.98

32

GASKET This part replaces 13392-04010.

13663-31010

$2.80

33

ADJUSTER, THROTTLE VALVE

13267-31010

Unavailable

34

TOP, MIXING CHAMBER | ~F.NO.45595

13261-33010

Unavailable
