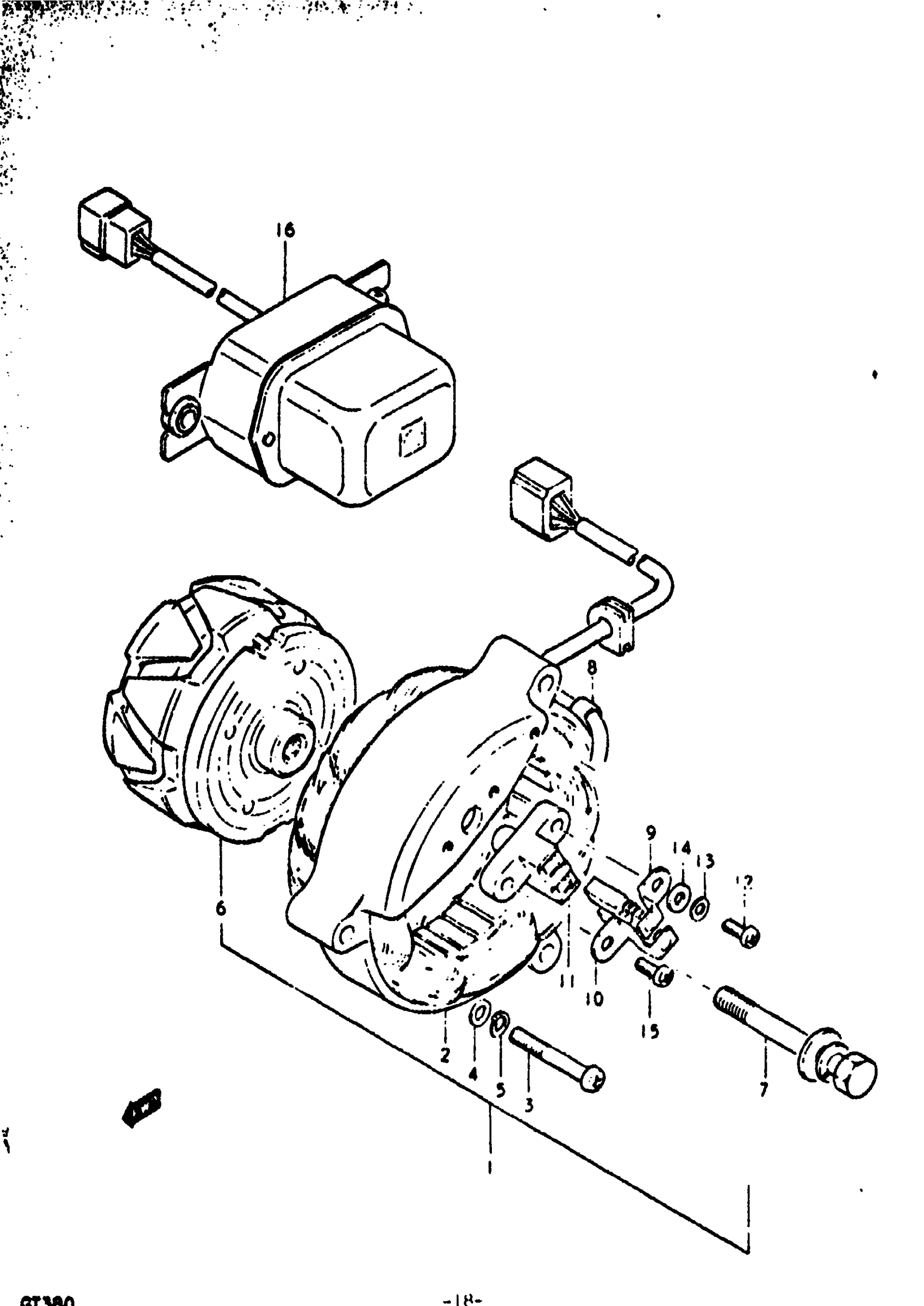

Suzuki GT380 (1972) ALTERNATOR (KOKUSAN) Diagram

#

Description
Price

1

ALTERNATOR ASSY | Includes Item(s) 2 - 15

31400-33020

Unavailable

2

STATOR ASSY

31401-33020

Unavailable

3

SCREW

31433-33020

Unavailable

4

WASHER This part replaces 08322-11058.

08322-01057

$2.13

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

ROTOR

31402-33020

Unavailable

7

BOLT This part replaces 31720-33020.

01500-08507

$3.05

8

CLAMP, LEAD WIRE

31481-33020

Unavailable

9

BRUSH (+)

31631-33020

Unavailable

10

BRUSH (-)

31632-33020

Unavailable

11

HOLDER, BRUSH

31656-33020

Unavailable

12

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

13

WASHER This part replaces 08322-21048.

08322-01047

$1.86

14

INSULATOR, BRUSH HOLDER

31666-33020

Unavailable

15

SCREW

02311-04128

Unavailable

16

REGULAIOR ASSY, BOLTAGE

32500-33020

Unavailable
