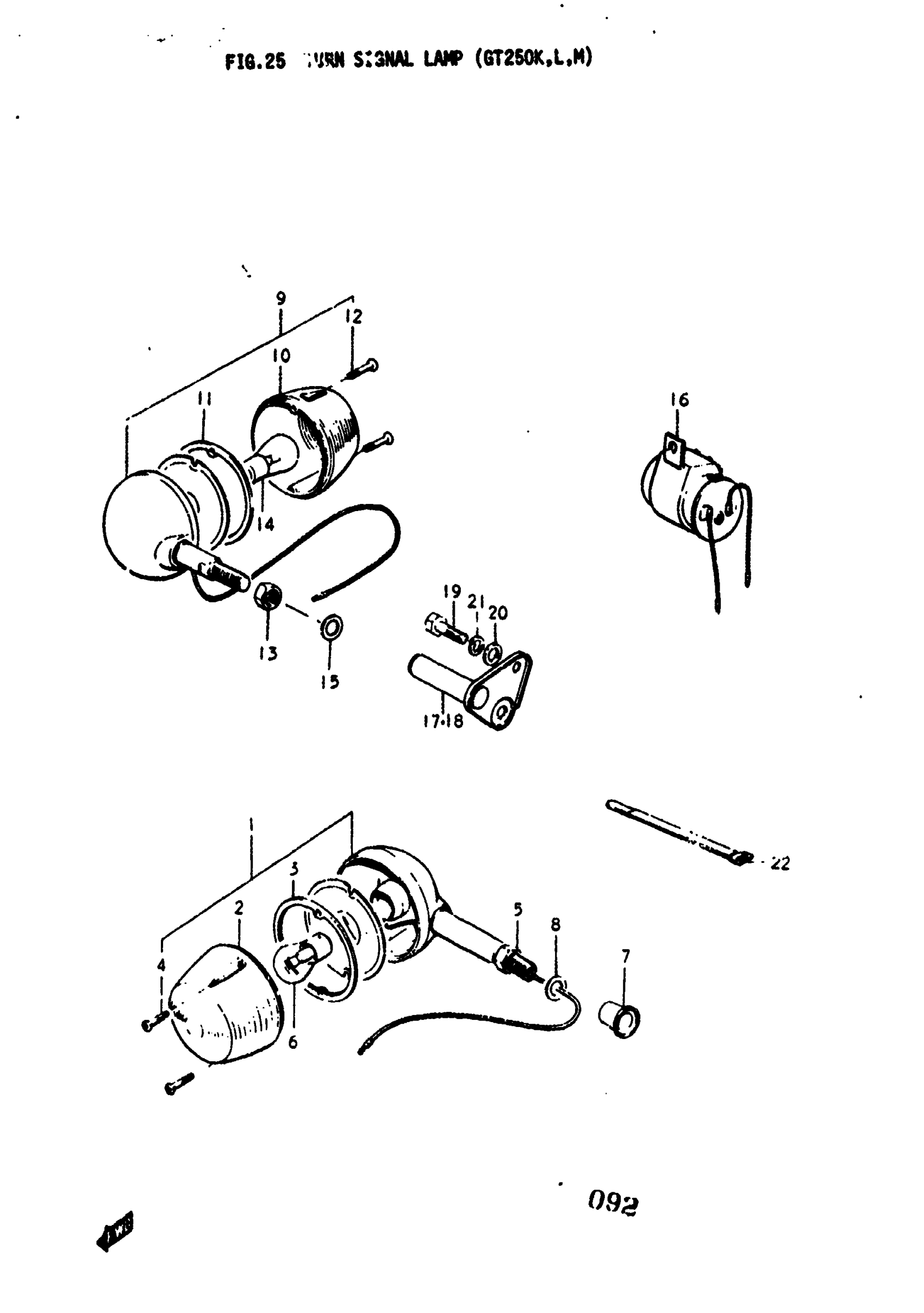

Suzuki GT250 (1977) TURN SIGNAL LAMP (GT250K Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | K,L,M; Includes Item(s) 2 - 6 This part replaces 35601-18620.

35601-27630-999

Unavailable

2

LLNS | K,L,M

35612-12611

$12.50

3

GASKET | K,L,M

35613-03610

$13.34

4

SCREW | K,L,M This part replaces 02131-03167.

02132-03167

$1.49

5

NUT | K,L,M This part replaces 08312-32108.

08310-00107

$2.19

6

BULB | K,L,M; 12V, 6W A4577A

09471-12006

$3.98

7

COVER, FRONT TURN SIGNAL BOSS | K,L,M

35698-28000

Unavailable

8

WASHER | K,L,M This part replaces 08322-21108.

08322-01107

$2.15

9

LAMP ASSY,RR TR | K,L; TO 35603-15612 This part replaces 35603-18620.

35603-27670-999

Unavailable

9

LAMP ASSY,RR TR | M; Includes Item(s) 10 - 13 This part replaces 35603-15612.

35603-27670-999

Unavailable

10

LENS | K,L; RED

35652-18700

Unavailable

10

LENS | M; UNBER

35612-12611

$12.50

11

GASKET | K,L,M

35613-03610

$13.34

12

SCREW | K,L,M This part replaces 02131-03167.

02132-03167

$1.49

13

NUT | K,L,M This part replaces 08312-32108.

08310-00107

$2.19

14

.BULB | K,L,M; 12V, 6W A4577

09471-12006

$3.98

15

WASHER | K,L,M This part replaces 08322-11108.

08322-01107

$2.15

16

TURN SIGNAL REL | K,L,M; TO 38610-32210 This part replaces 38610-15611.

38610-322V0

Unavailable

17

BRACKET, REAR TURN SIGNAL RH | K,L,M

41640-18600

Unavailable

18

BRACKET, REAR TURN SIGNAL LH | K,L,M

41650-18600

Unavailable

19

BOLT | K,L,M This part replaces 01122-10168.

01500-10167

$3.85

20

WASHER | K,L,M This part replaces 08322-11108.

08322-01107

$2.15

21

LOCK WASHER | K,L,M This part replaces 08321-21108.

08321-01107

$1.84

22

CLAMP, REAR TURN SIGNAL LAMP | L; TO 09407-11302 L:90

09407-09302

Unavailable

22

CLAMP | M; L:110M; L:110 This part replaces 09407-11302.

09407-18302

$2.28
