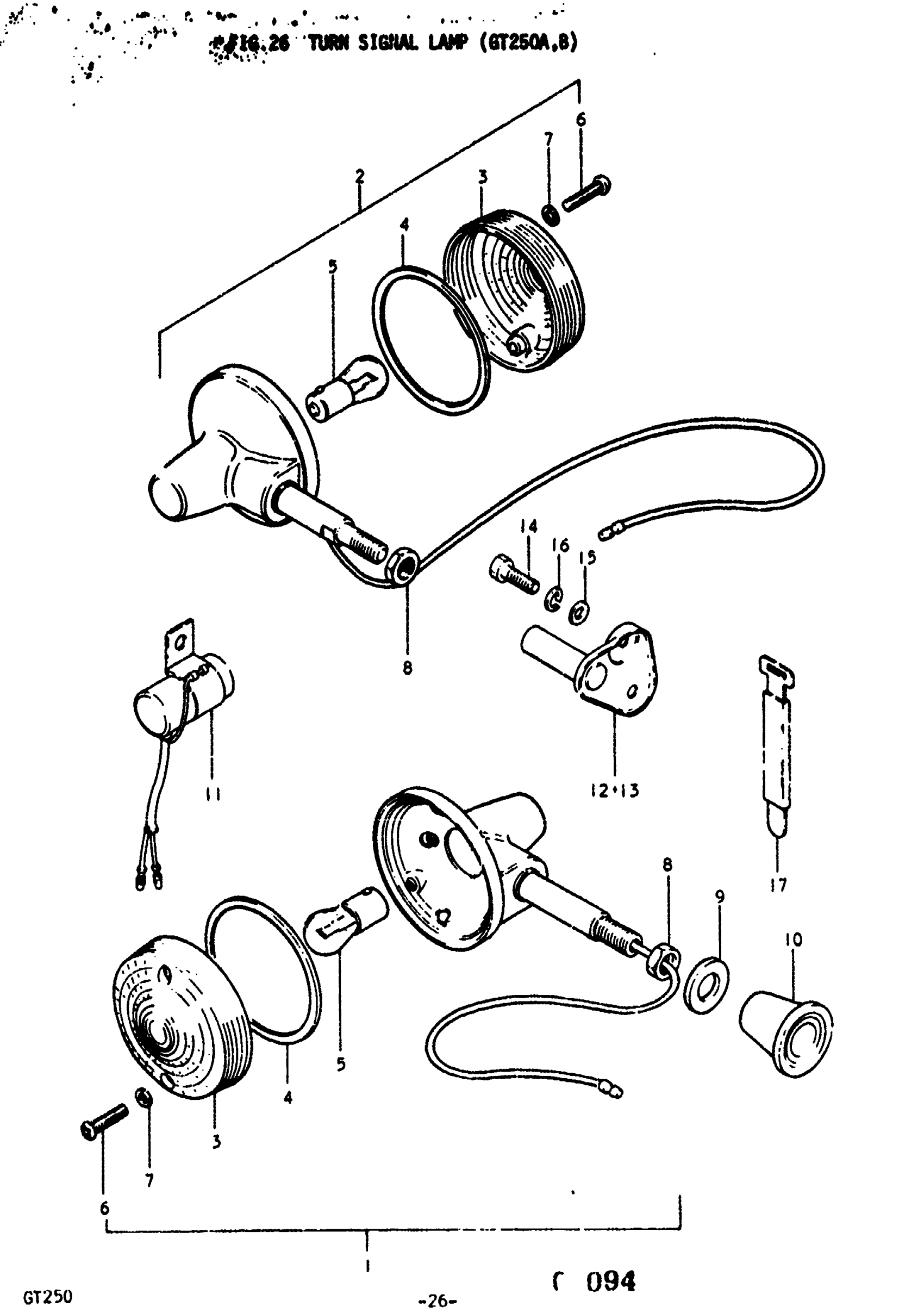

Suzuki GT250 (1977) TURN SIGNAL LAMP (GT250A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 35601-29620.

35601-29620-999

Unavailable

2

LAMP RR TURN SI | A This part replaces 35603-18410.

35603-25610-999

Unavailable

2

LAMP RR TURN SI | B; Includes Item(s) 3 - 8 This part replaces 35603-18411.

35603-25610-999

Unavailable

3

LENS | A,B

35612-28620

$8.98

4

GASKET | A,B

35613-28620

$4.55

5

BULB | A,B; 12V, 23W

09471-12006

$3.98

6

SCREW | A,B

02111-04258

Unavailable

7

GASKET | A,B

35627-43010

$2.28

8

NUT | A,B This part replaces 08312-32108.

08310-00107

$2.19

9

WASHER | A,B This part replaces 08322-21108.

08322-01107

$2.15

10

COVER, FRONT TURN SIGNAL BOSS | A,B

35698-28000

Unavailable

11

TURN SIGNAL REL | A,B This part replaces 38610-32210.

38610-322V0

Unavailable

12

BRACKET, REAR TURN SIGNAL RH | A,B

41640-18600

Unavailable

13

BRACKET, REAR TURN SIGNAL LH | A,B

41650-18600

Unavailable

14

BOLT | A,B This part replaces 01122-10168.

01500-10167

$3.85

15

WASHER | A,B This part replaces 08322-11108.

08322-01107

$2.15

16

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

17

CLAMP | A,B; L:110 This part replaces 09407-11302.

09407-18302

$2.28
