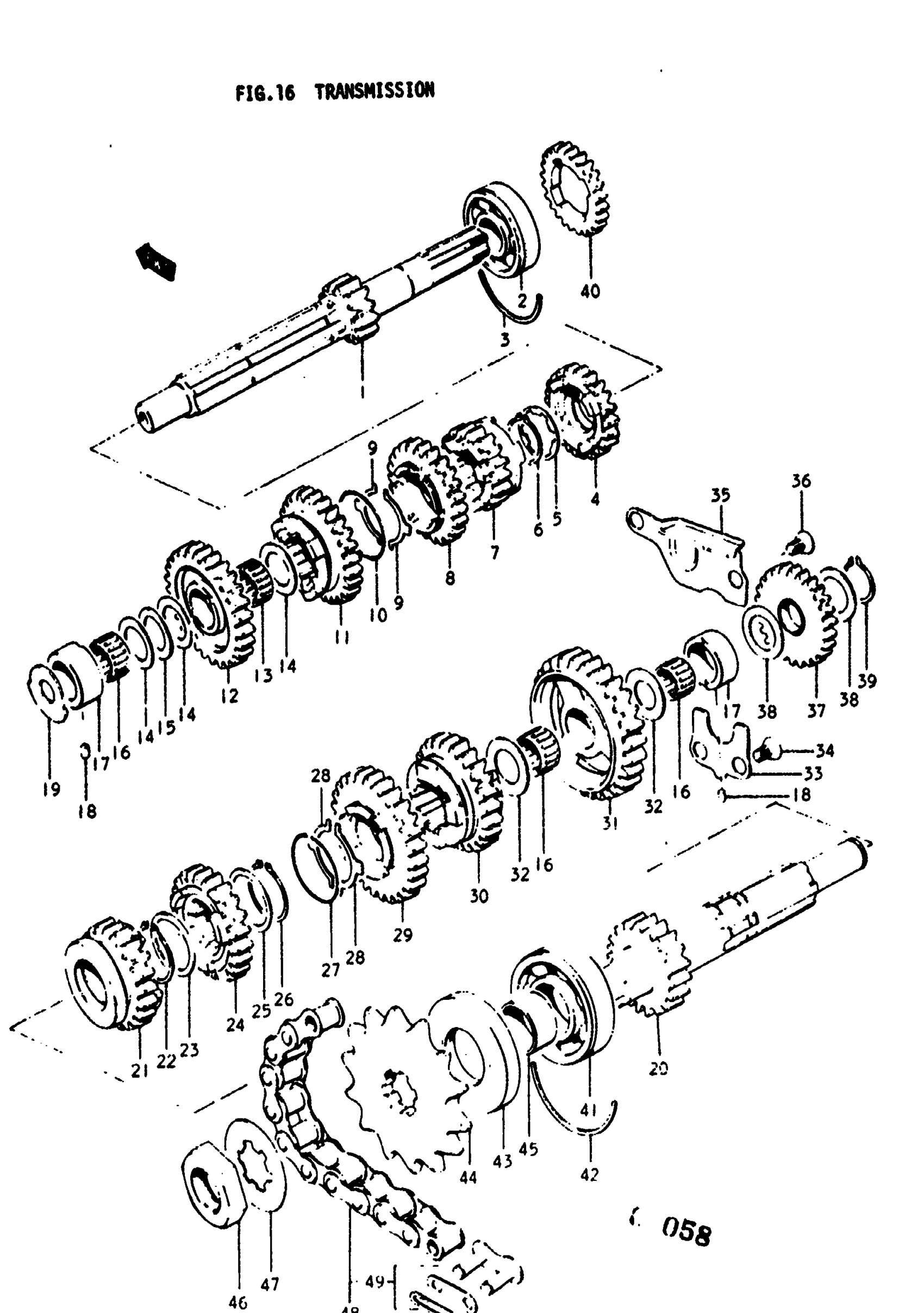

Suzuki GT250 (1977) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | K,L; NT:12

24121-18001

Unavailable

1

COUNTERSHAFT | M,A,B; NT:12

24121-18002

Unavailable

2

BEARING | K,L; 20x52x15

09262-20025

Unavailable

2

BEARING | M,A,B; 25x52x15

09262-25013

Unavailable

3

C RING | K,L

09390-52001

Unavailable

3

C RING | M,A,B

09390-52002

Unavailable

4

GEAR, 3RD DRIVE | K,L,M; NT:19

24231-18001

Unavailable

4

GEAR, 3RD DRIVE | A,B; NT:20

24231-18400

Unavailable

5

WASHER | K,L,M; 22x32x1

09167-25004

Unavailable

5

WASHER LOCK (25.1X31X1.0) | A,B

09167-25012

$3.70

6

SNAP RING | K,L,M,A,B

09380-25003

$3.04

7

GEAR, 2ND DRIVE | K,L,M; NT:16

24221-18001

Unavailable

7

GEAR, 2ND DRIVE | A,B; NT:17

24221-18400

Unavailable

8

GEAR, 4TH DRIVE | K,L,M,A,B; NT:21

24241-18003

Unavailable

9

RING | K,L,M,A,B

09399-22003

Unavailable

10

CIRCLIP | K,L,M,A,B

09380-38001

Unavailable

11

GEAR, 5TH DRIVE | K; TO 24251-18003

24251-18002

Unavailable

11

GEAR, 5TH DRIVE | L,M,A,B

24251-18003

Unavailable

12

GEAR, 6TH DRIVE | K; TO 24261-18002

24261-18001

Unavailable

12

GEAR, 6TH DRIVE | L,M,A,B

24261-18002

Unavailable

13

BEARING | K,L,M,A,B; 17x21x9.8

09263-17004

$12.03

14

WASHER, 2ND DRIVE GEAR | K,L,M,A,B; 17x30x1 This part replaces 08211-17301.

09181-17223

$2.96

14

WASHER | K; 17x28x1.5 FROM 09160-17003

08211-17282

$2.70

14

WASHER | K; 17x29x1.2K;17x29x1.2L;17x29x1.2

09160-17007

Unavailable

15

WASHER | K,L,M,A,B; 17x29x1 This part replaces 09160-17005.

09160-17022

$3.23

16

BEARING | K,L,M,A,B; 17x21x12.8

09263-17001

$21.82

17

BUSHING | K,L,M,A,B; 21x30x13

09300-21001

Unavailable

18

PIN | K,L,M,A,B This part replaces 06211-04063.

04221-04069

$2.12

19

HOLDER, COUNTERSHAFT | K,L,M,A,B

24741-10000

Unavailable

20

DRIVESHAFT | K; NT:17 TO 24131-18002 This part replaces 24131-18001.

24131-18002

Unavailable

20

DRIVESHAFT | L,M,A,B; NT:17

24131-18002

Unavailable

21

GEAR, 5TH DRIVEN | K; NT: 18 TO 24351-18004

24351-18003

Unavailable

21

GEAR, 5TH DRIVEN | L,M,A,B; NT:18

24351-18004

Unavailable

22

SNAP RING | K,L,M,A,B

09380-25003

$3.04

23

WASHER | K,L,M,A,B; 25x32x1

08211-25321

$3.27

24

GEAR, 4TH DRIVEN | K,L,M,A,B; NT:19

24341-18003

Unavailable

25

WASHER | K,L,M,A,B

09160-25007

Unavailable

26

SNAP RING | K,L,M,A,B

09380-25003

$3.04

27

CIRCLIP | K,L,M,A,B

09380-38001

Unavailable

28

RING | K,L,M,A,B

09399-22003

Unavailable

29

GEAR, 2ND DRIVEN | K,L,M; NT:24

24320-18002

Unavailable

29

GEAR, 2ND DRIVEN | A,B; NT:23

24320-18400

Unavailable

30

GEAR, 3RD DRIVEN | K,L,M; NT:21

24331-18002

Unavailable

30

GEAR, 3RD DRIVEN | A,B; NT:21

24331-18400

Unavailable

31

GEAR, 1ST DRIVEN | K,L,M,A,B; NT:28

24311-18000

Unavailable

32

WASHER | K,L; 17x29x1 This part replaces 09160-17005.

09160-17022

$3.23

35

CUP, OIL RESERVOIR | K,L,M,A,B

24871-11001

Unavailable

36

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

$1.84

37

GEAR, KICK STARTER IDLE | K,L,M,A,B; NT:26

26260-11000

Unavailable

38

WASHER, 2ND DRIVE GEAR | K,L,M,A,B; 17x30x1 FROM 09160-17001 This part replaces 08211-17301.

09181-17223

$2.96

39

CIRCLIP | K,L,M,A,B

09380-17001

$1.98

40

GEAR, KICK STARTER DRIVEN | K,L,M,A,B; NT:24

26281-11000

Unavailable

41

BEARING | K,L,M,A,B; 22x56x16

09262-22005

Unavailable

42

C RING | K,L,M,A,B

09390-54001

Unavailable

43

OIL SEAL | K,L,M,A,B; 27x56x7

09283-27003

Unavailable

44

SPROCKET, ENGINE | K,L,M,A,B; NT:14

27511-18000

Unavailable

45

SPACER | K,L,M,A,B; 22x27x13.4

09180-22003

Unavailable

46

NUT | K,L,M,A,B

09140-22003

Unavailable

47

WASHER | K,L,M,A,B; 18.5x40x0.8

09167-22005

$2.11

48

CHAIN ASSY, DRIVE | K,L,M; #525Tx96l This part replaces 27600-11210.

27600-16410

Unavailable

48

CHAIN ASSY, DRIVE | A,B; #525Tx96l; Includes Item(s) 49

27600-18612

Unavailable

49

JOINT, CHAIN | K,L,M This part replaces 27620-18610.

27620-30110

Unavailable
