1977 Suzuki GT250 Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1977 Suzuki GT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

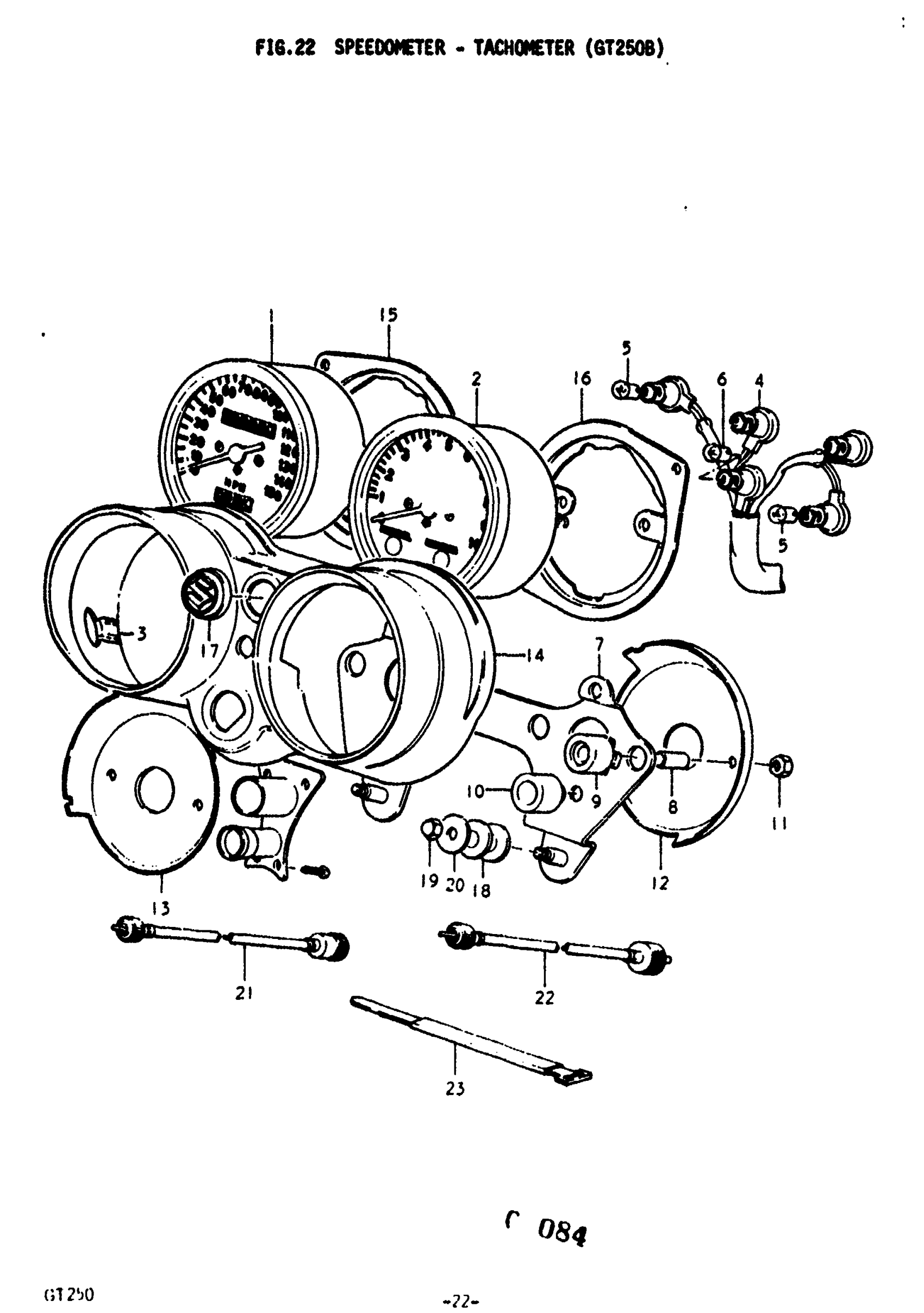

1977 Suzuki GT250 Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 16 This part replaces 34100-33617.

34100-33618

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 34110-33611.

34110-33635

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 34210-33025.

34210-33026

1
Out of stock

3

CAP, TRIP METER KNOB

34192-33601

1
Out of stock

4

SOCKET

34170-33020

1
Out of stock

5

BULB | 12V, 3.4W

09471-12001

4

$2.08

In stock

6

BULB | 12V, 1.7W

09471-12004

1
Out of stock

7

BRACKET

34950-33601

—
Out of stock

8

SPACER

34972-16420

4
Out of stock

9

CUSHION NO.1

34955-16420

4
Out of stock

10

CUSHION NO.2

34956-33600

2
Out of stock

11

.NUT This part replaces 08311-11068.

08310-00067

4
Out of stock

12

UNDER PLATE, TACHOMETER

34961-33602

1
Out of stock

13

UNDER PLATE, SPEEDOMETER

34960-33602

1
Out of stock

14

CASE, METER

34111-33701

—
Out of stock

15

BRACKET, SPEEDOMETER

34951-33120

1
Out of stock

16

BRACKET, TACHOMETER

34952-33120

1
Out of stock

17

CAP

34995-31600

1
Out of stock

18

CUSHION

34956-15100

2
Out of stock

19

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

2
Out of stock

20

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

2
Out of stock

21

CABLE,SPEEDOMET This part replaces 34910-18130.

34910-18991

1
Out of stock

22

CABLE ASSY, TACHOMETER

34940-18131

1
Out of stock

23

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock
