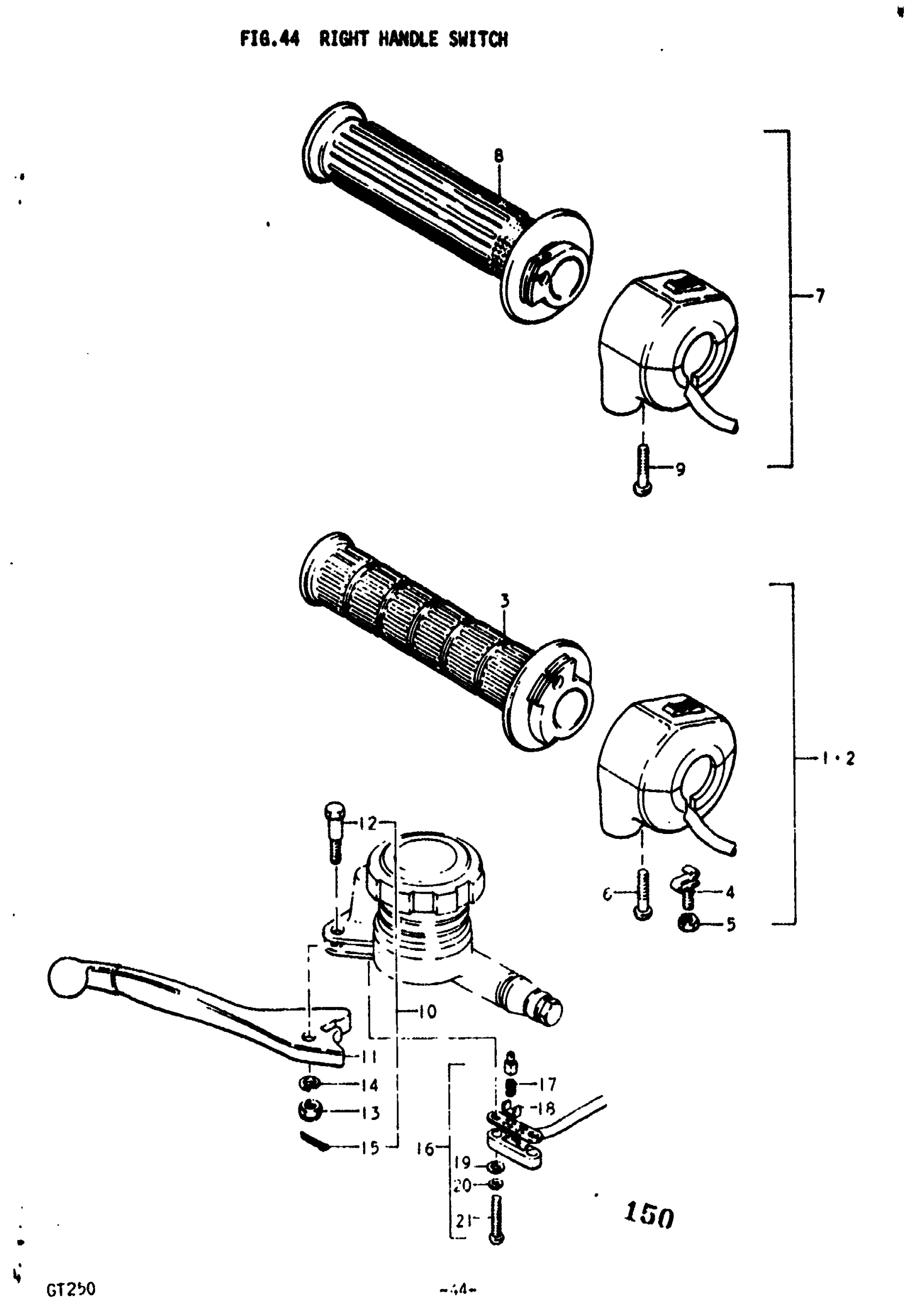

Suzuki GT250 (1977) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | K,L; FROM 57100-18601

57100-33011

Unavailable

2

GRIP ASSY, THROTTLE | M; Includes Item(s) 3 - 6

57100-18610

Unavailable

3

GRIP, THROTTLE | K,L; TO 57110-33012 This part replaces 57110-33010.

57110-33012

Unavailable

3

GRIP, THROTTLE | M

57110-33012

Unavailable

4

ADJUSTER, THROTTLE GRIP | K,L

57170-11011

Unavailable

5

NUT | K,L This part replaces 08311-11058.

08310-00057

$1.84

6

SCREW | K,L,M This part replaces 02111-05257.

02112-05257

$1.49

7

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 8 - 9 This part replaces 57100-18620.

57100-18622

Unavailable

8

NO DESCRIPTION AVAILABLE | A,B This part replaces 57110-18620.

57110-18621

Unavailable

9

SCREW | A,B This part replaces 02111-05257.

02112-05257

$1.49

10

LEVER ASSY, BRAKE | K,L; TO 57300-18621 USED WITH 56741-31700

57300-18620

Unavailable

10

LEVER ASSY, BRAKE | M,A,B; Includes Item(s) 11 - 15 This part replaces 57300-18621.

57300-45010

Unavailable

11

LEVER, BRAKE | K,L,M,A,B This part replaces 57420-18620.

57420-45010

Unavailable

12

BOLT | K,L,M,A,B This part replaces 57431-18620.

57431-18621

$8.28

13

NUT, BRAKE LEVER PIVOT | K,L,M,A,B

57433-11010

$5.64

14

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

15

PIN | K,L,M,A,B This part replaces 04111-16158.

04111-1620A

$1.49

16

SWITCH ASSY, STOP | K,L,M,A,B; Includes Item(s) 17 - 21

57460-33700

$43.37

17

HOLDER | K,L,M,A,B This part replaces 57462-18600.

57465-18601

$4.34

18

HOLDER | K,L,M,A,B This part replaces 57463-18600.

57465-18601

$4.34

19

WASHER | K,L,M,A,B This part replaces 08322-21038.

08322-01037

$1.93

20

WASHER,LOCK | K,L,M,A,B This part replaces 08321-21038.

09162-03001

$1.49

21

SCREW | K,L,M,A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23
