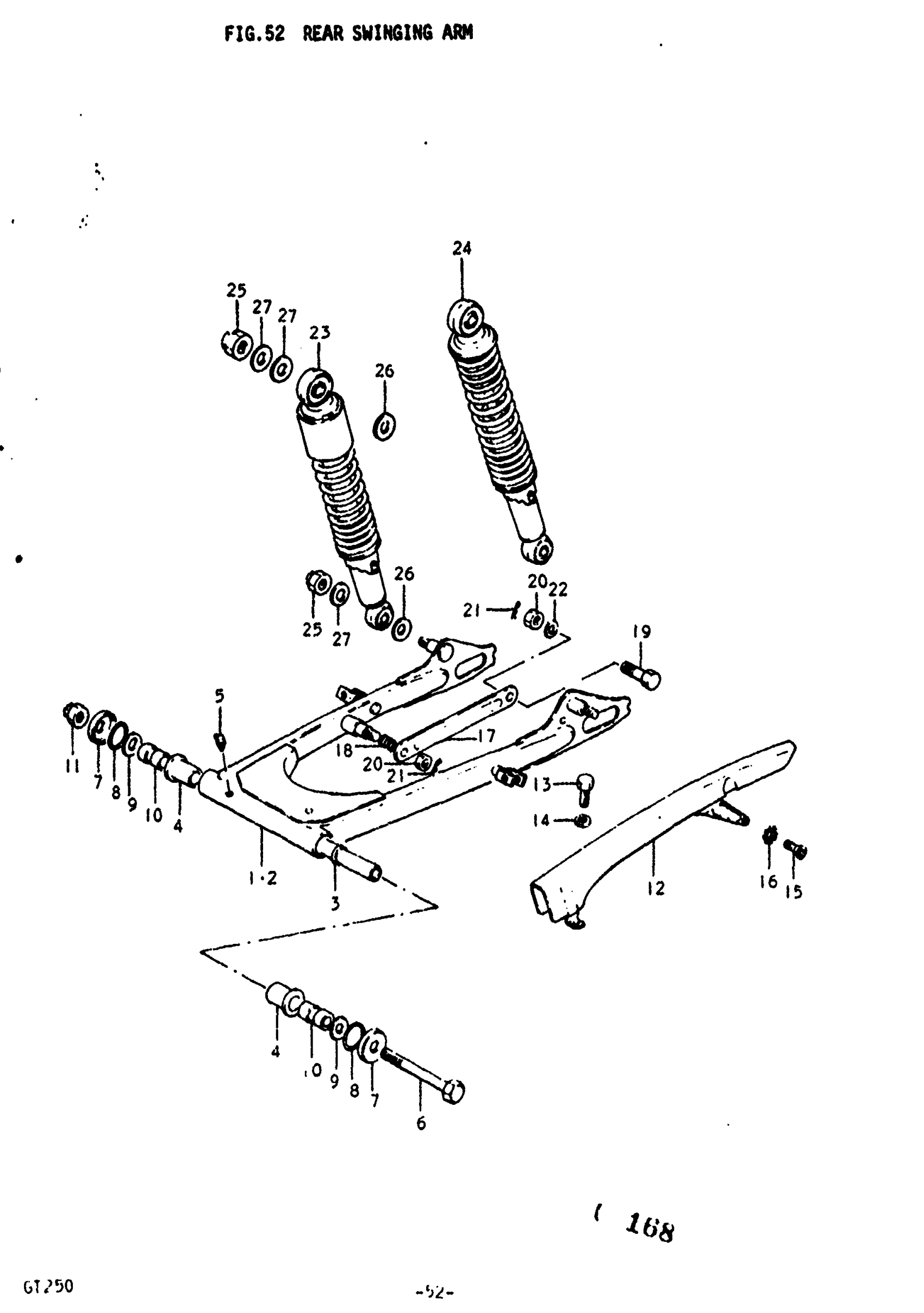

Suzuki GT250 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

ARM SET, REAR SWINGING | K,L; TO 61100-18830-019

61100-18816-019

Unavailable

2

ARM SET, REAR SWINGING | M,A; TO 61100-18831-019 This part replaces 61100-18830-019.

61100-18831-019

Unavailable

2

ARM SET, REAR SWINGING | B; Includes Item(s) 3 - 5

61100-18831-019

Unavailable

3

SPACER | K,L,M,A,B

61280-15000

Unavailable

4

BUSHING | K,L,M,A; TO 09307-22003 This part replaces 09307-22002.

09307-22003

Unavailable

4

BUSHING | B

09307-22003

Unavailable

5

NIPPLE, GREASE | K,L,M,A,B This part replaces 08351-31008.

08351-3100A

$4.45

6

NO DESCRIPTION AVAILABLE | K,L,M,A,B; FROM 61211-15001 This part replaces 61211-18400.

61211-18401

Unavailable

7

COVER, DUST SEAL | K,L,M,A,B

61262-15000

$93.03

8

.O RING (D:3,ID:29.5) | K,L,M,A,B

09280-30001

$1.72

9

WASHER | K,L,M,A,B; 14.5x29x2.3

09160-14009

$2.82

10

SPACER | K,L,M,A; TO 61251-15001 This part replaces 61251-15000.

61251-15001

Unavailable

10

SPACER, REAR SWINGING ARM | B

61251-15001

Unavailable

11

NUT | K,L,M,A,B; FROM 09159-14002

09159-14003

Unavailable

12

CASE, DRAIN | K,L,M,A,B

61310-18600

Unavailable

13

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

14

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

15

SCREW, HEADLAMP (5X12) | K,L,M,A,B This part replaces 02121-05127.

09126-05003

$2.06

16

WASHER,LOCK | K,L,M,A,B This part replaces 08323-31058.

08323-3105A

$1.49

17

TORQUE LINK, REAR | K,L,M,A,B

64310-11000

Unavailable

18

SPRING | K,L,M,A,B

09440-18002

$1.49

19

BOLT | K,L,M,A,B

09101-10003

Unavailable

20

NUT | K,L,M,A,B This part replaces 08311-11108.

08310-00107

$2.19

21

CLIP | K,L,M,A,B This part replaces 09385-10001.

09385-10005

$1.56

22

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

23

ABSORBER ASSY, REAR SHOCK | K,L

62100-33010

Unavailable

23

ABSORBER ASSY, REAR SHOCK | M

62100-18601

Unavailable

24

ABSORBER ASSY, REAR SHOCK | A,B

62100-18602

Unavailable

25

NUT | K,L,M,A,B This part replaces 08313-11107.

08313-10107

$2.50

26

WASHER | K,L,M,A,B This part replaces 08322-11128.

08322-01127

$1.84

27

WASHER, LOWER (10.5X24X2.3) | K,L,M,A,B; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35
