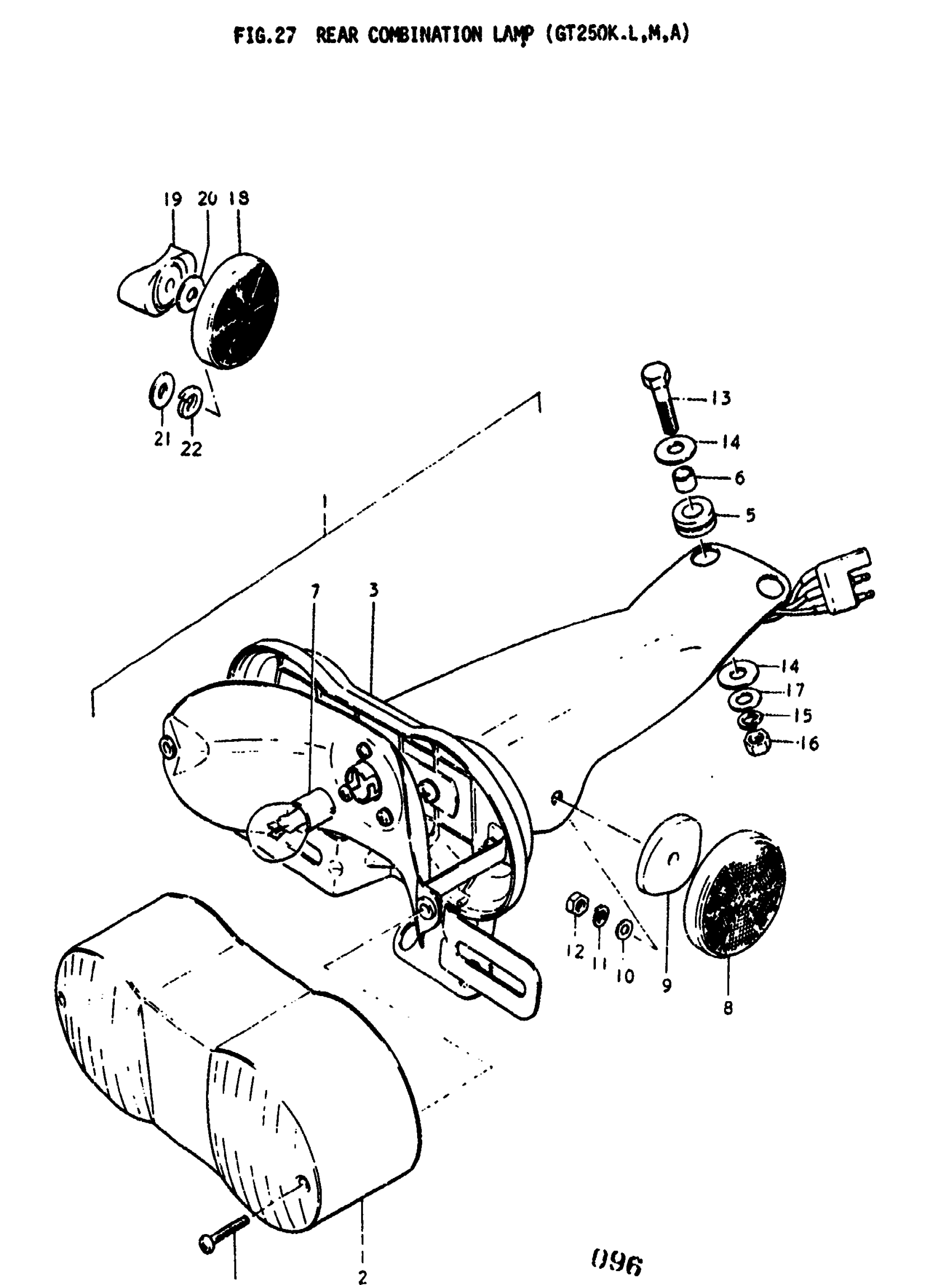

Suzuki GT250 (1977) REAR COMBINATION LAMP (GT250K Diagram

#

Description
Price

1

LAMP ASSY, REAL COMBINATION | K,L,M,A; Includes Item(s) 2 - 7

35710-18110

Unavailable

2

TAIL LAMP LENS | K,L,M,A; FROM 35712-27691 This part replaces 35712-27660.

35712-27671

Unavailable

3

HOUSING | K,L,M,A

35715-27691

Unavailable

4

SCREW 4X55 | K,L,M,A This part replaces 02111-04558.

02112-04558

$1.65

5

CUSHION | K,L,M,A

35765-15010

Unavailable

6

SPACER | K,L,M,A This part replaces 35766-15010.

35766-37110

$5.28

7

BULB | K,L,M,A; 12V, 23/8W

09471-12035

$4.49

8

REFLEX REFLECTOR, REAR | K,L,M

35970-31610

Unavailable

8

REFLEX REFLECTOR, REAR | A

35970-15010

Unavailable

9

SPACER | K,L

35995-18110

Unavailable

10

WASHER (5.5X18X1) | K,L; 5.5x18x1.6 This part replaces 09160-05003.

09160-05045

$1.93

11

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT | K,L,M,A This part replaces 08311-11058.

08310-00057

$1.84

13

BOLT, GEAR SHIFT ARM | K,L,M; 6x22 This part replaces 09100-06039.

01500-0625A

$1.78

13

BOLT | A This part replaces 01112-06108.

01500-06107

$2.06

14

WASHER (6.5X20X1.6) | K,L,M; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

14

WASHER (6.5X20X1.2) | A; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

15

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

16

.NUT | K,L,M,A This part replaces 08311-11068.

08310-00067

$2.13

17

WASHER | K,L,M,A This part replaces 08322-21068.

08322-01067

$2.13

18

REFLEX REFLECTOR FRONT | K,L,M This part replaces 35950-31010.

35950-49080

$17.24

18

REFLEX REFLECTOR FRONT | A This part replaces 35950-15010.

35950-49080

$17.24

19

SPACER | K,L,M

35995-29000

Unavailable

20

WASHER (6.5X20X1.6) | K; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

20

WASHER (6.5X20X1.2) | L,M; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

21

WASHER | A This part replaces 08322-21058.

08322-01057

$2.13

22

LOCK WASHER | A This part replaces 08321-21058.

08321-0105A

$1.84
