Partiron

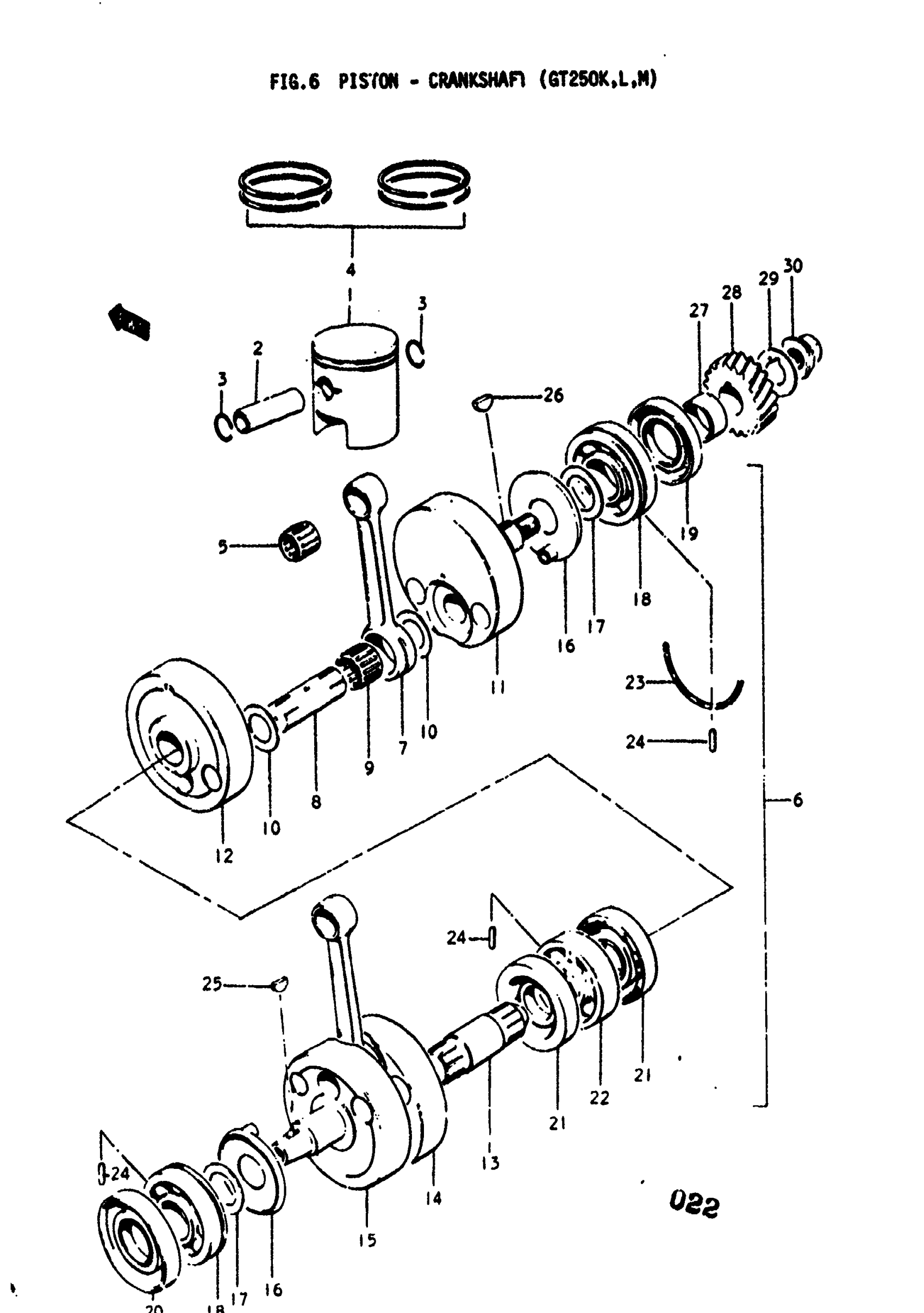

Suzuki GT250 (1977) PISTON - CRANKSHAFT (GT250K Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,L; TO 12110-18402 This part replaces 12110-18401.

12110-18402

Unavailable

1

PISTON | M; KNOK PIN ANGLE 20@ TO 12110-33003 This part replaces 12110-33002.

12110-33004

Unavailable

1

PISTON | M; KNOK PIN ANGLE 42@ TO 12110-33004

12110-33003

Unavailable

1

NO DESCRIPTION AVAILABLE | K,L; OS:0.5 This part replaces 12110-18751.

12103-18810-050

Unavailable

1

PISTON SET | M; OS:0.5 This part replaces 12110-33701.

12103-33810-050

Unavailable

1

PISTON SET | M; OS:0.5 TO 12110-33703 This part replaces 12110-33702.

12103-33810-050

Unavailable

1

NO DESCRIPTION AVAILABLE | K,L; OS:1.0 This part replaces 12110-18761.

12103-18810-100

Unavailable

1

PISTON SET | M; OS:1.0 This part replaces 12110-33711.

12103-33810-100

Unavailable

1

PISTON SET | M; OS:1.0 TO 12110-33713 This part replaces 12110-33712.

12103-33810-100

Unavailable

2

PIN, PISTON | K,L; 12.5x16x49.5 This part replaces 12151-08000.

12151-08001

$14.20

2

PIN,PISTON | M This part replaces 12151-07000.

12151-23400-0A0

$8.67

3

CIRCLIP | K,L

09381-16001

$1.67

3

RING | M

09381-14001

$1.49

4

RING SET, PISTON | K,L,M This part replaces 12140-18411.

12140-33012

Unavailable

4

RING SET, PISTON | K,L,M; OS:0.5 FROM 12140-18721 This part replaces 12140-33701.

12140-33012-050

Unavailable

4

RING SET, PISTON | K,L,M; OS:1.0 FROM 12140-18731 This part replaces 12140-33711.

12140-33012-100

Unavailable

5

RN 16X21X19.6BR | K,L; 16x21x19.6 TO 09263-16005 This part replaces 09263-16004.

09263-16015

$15.54

5

ROLLR BRG,14X18 | M; TO 09263-14006 This part replaces 09263-14004.

09263-14022

$11.97

6

CRANKSHAFT SET | K,L

12200-18870

Unavailable

6

CRANKSHAFT SET | M; Includes Item(s) 7 - 23

12200-18861

Unavailable

7

ROD, CONNECTING | K,L

12161-18000

Unavailable

7

ROD CONNECTING | M This part replaces 12161-11000.

12161-11001

Unavailable

8

PIN, CRANK | K,L,M; TO 12211-18001 This part replaces 12211-18000.

12211-18001

Unavailable

9

BEARING | K,L,M

09263-20020

$20.60

10

WASHER | K,L,M; 20x34x1 This part replaces 09160-20010.

09160-20052

$5.68

11

CRANKSAHFT, RH | K,L

12220-18000

Unavailable

11

CRANKSHAFT, RH | M; FROM 12220-18000

12221-18001

Unavailable

12

WHEEL, MIDDLE CRANK RH | K,L

12240-18000

Unavailable

12

WHEEL, MIDDLE CRANK RH | M; FROM 12240-18000

12241-18001

Unavailable

13

CRANKSHAFT, MIDDLE | K,L,M

12231-18000

Unavailable

14

WHEEL, MIDDLE CRANKSHAFT LH | K,L

12250-18000

Unavailable

14

WHEEL, MIDDLE CRANKSHAFT LH | M; FROM 12250-18000

12251-18001

Unavailable

15

CRANKSHAFT, LH | K,L

12260-18000

Unavailable

15

CRANKSHAFT, LH | M; FROM 12260-18000

12261-18001

Unavailable

16

PLATE, OIL GUIDE | K,L,M

12511-18000

Unavailable

17

WASHER, SUB T/M DRIVE | K,L; 25x40x1 This part replaces 08211-25401.

09181-25251

$3.87

17

THRUST WASHER | M; 25x40x1

08212-25401

Unavailable

18

B1 25X62X17 BEA | K,L,M; 25x65x17 This part replaces 09269-25004.

09269-25005

Unavailable

19

OIL SEAL | K,L,M; 32x65x12

09283-32001

Unavailable

20

OIL SEAL | K,L,M; 25x65x12

09283-25019

$18.77

21

OIL SEAL | K,L,M; 26x65x14

09283-25032

$44.08

22

NO DESCRIPTION AVAILABLE | K,L,M; 25x67x17 This part replaces 09262-25008.

09262-25009

Unavailable

23

C RING | K,L,M

09390-65002

Unavailable

24

ROLLER (4X13.8) | K,L,M

09261-04002

$1.72

25

KEY | K,L,M

08341-31039

$1.89

26

KEY | K,L,M

08341-31059

$2.48

27

SPACER | K,L,M; 25x32x13.3

09180-25014

Unavailable

28

GEAR, PRIMARY DRIVE | K,L,M; NT:20

21111-18000

Unavailable

29

WASHER | K,L,M; 12.5x30x0.8

09166-12002

Unavailable

30

NUT | K,L,M

09159-12103

Unavailable
