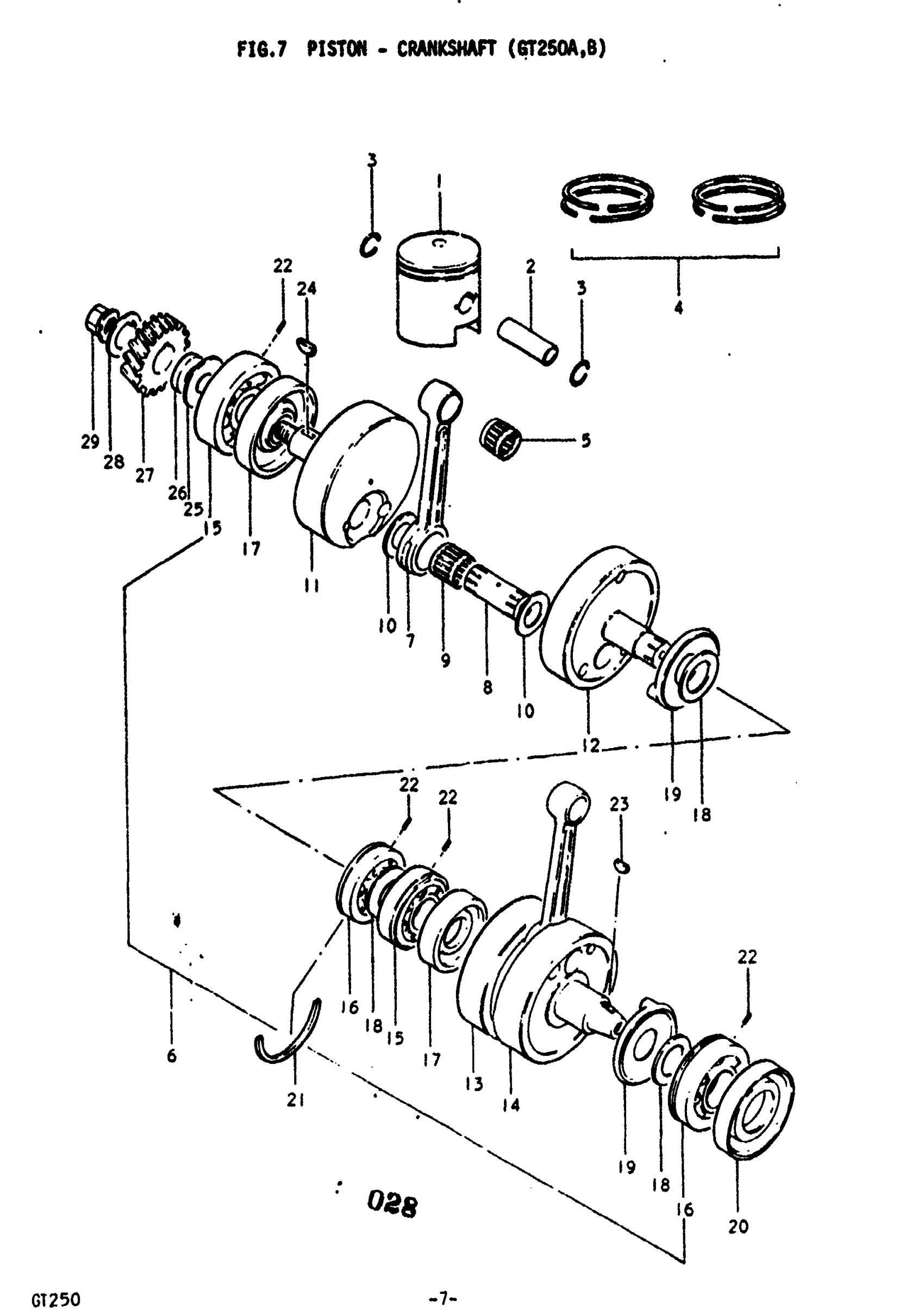

Suzuki GT250 (1977) PISTON - CRANKSHAFT (GT250A Diagram

#

Description
Price

1

PISTON | A,B

12110-33004

Unavailable

1

PISTON SET | A,B; OS:0.5 This part replaces 12110-33703.

12103-33810-050

Unavailable

1

PISTON SET | A,B; OS:1.0 This part replaces 12110-33713.

12103-33810-100

Unavailable

2

PIN,PISTON | A,B This part replaces 12151-07000.

12151-23400-0A0

$8.67

3

RING | A,B

09381-14001

$1.49

4

RING SET, PISTON | A,B; FROM 12140-18411

12140-33012

Unavailable

4

RING SET, PISTON | A,B; OS:0.5 FROM 12140.33701

12140-33012-050

Unavailable

4

RING SET, PISTON | A,B; 05:1.0 FROM 12140.33711

12140-33012-100

Unavailable

5

ROLLR BRG,14X18 | A,B This part replaces 09263-14006.

09263-14022

$11.97

6

CRANKSHAFT ASSY | A,B; Includes Item(s) 7 - 19

12200-18401

Unavailable

7

ROD CONNECTING | A,B This part replaces 12161-11000.

12161-11001

Unavailable

8

PIN, CRANK | A,B

12211-18001

Unavailable

9

BEARING | A,B

09263-20020

$20.60

10

WASHER | A,B; 20x34x1 This part replaces 09160-20010.

09160-20052

$5.68

11

CRANKSHAFT, RH | A,B

12221-18400

Unavailable

12

CRANKSHAFT, MIDDLE | A,B

12231-18400

Unavailable

13

WEB, CRANK | A,B

12241-18400

Unavailable

14

CRANKSHAFT, LH | A,B

12261-18002

Unavailable

15

NO DESCRIPTION AVAILABLE | A,B; 25x65x17 This part replaces 09262-25008.

09262-25009

Unavailable

16

B1 25X62X17 BEA | A,B; 25x65x17 This part replaces 09269-25004.

09269-25005

Unavailable

17

OIL SEAL | A,B; 32.3x65x10

09289-33006

Unavailable

18

THRUST WASHER | A,B; 25x40x1

08212-25401

Unavailable

19

PLATE, OIL GUIDE | A,B

12511-18000

Unavailable

20

OIL SEAL | A,B; 25x55x12

09283-25019

$18.77

21

C RING | A,B

09390-65002

Unavailable

22

ROLLER (4X13.8) | A,B

09261-04002

$1.72

23

KEY | A,B

08341-31039

$1.89

24

KEY | A,B

08341-31059

$2.48

25

WASHER | A,B; 20x47x1

09160-20025

Unavailable

26

SPACER | A,B

08211-20365

Unavailable

27

GEAR, PRIMARY DRIVE | A,B; NT:20

21111-18000

Unavailable

28

WASHER | A,B

09166-12002

Unavailable

29

NUT | A,B

09159-12103

Unavailable
