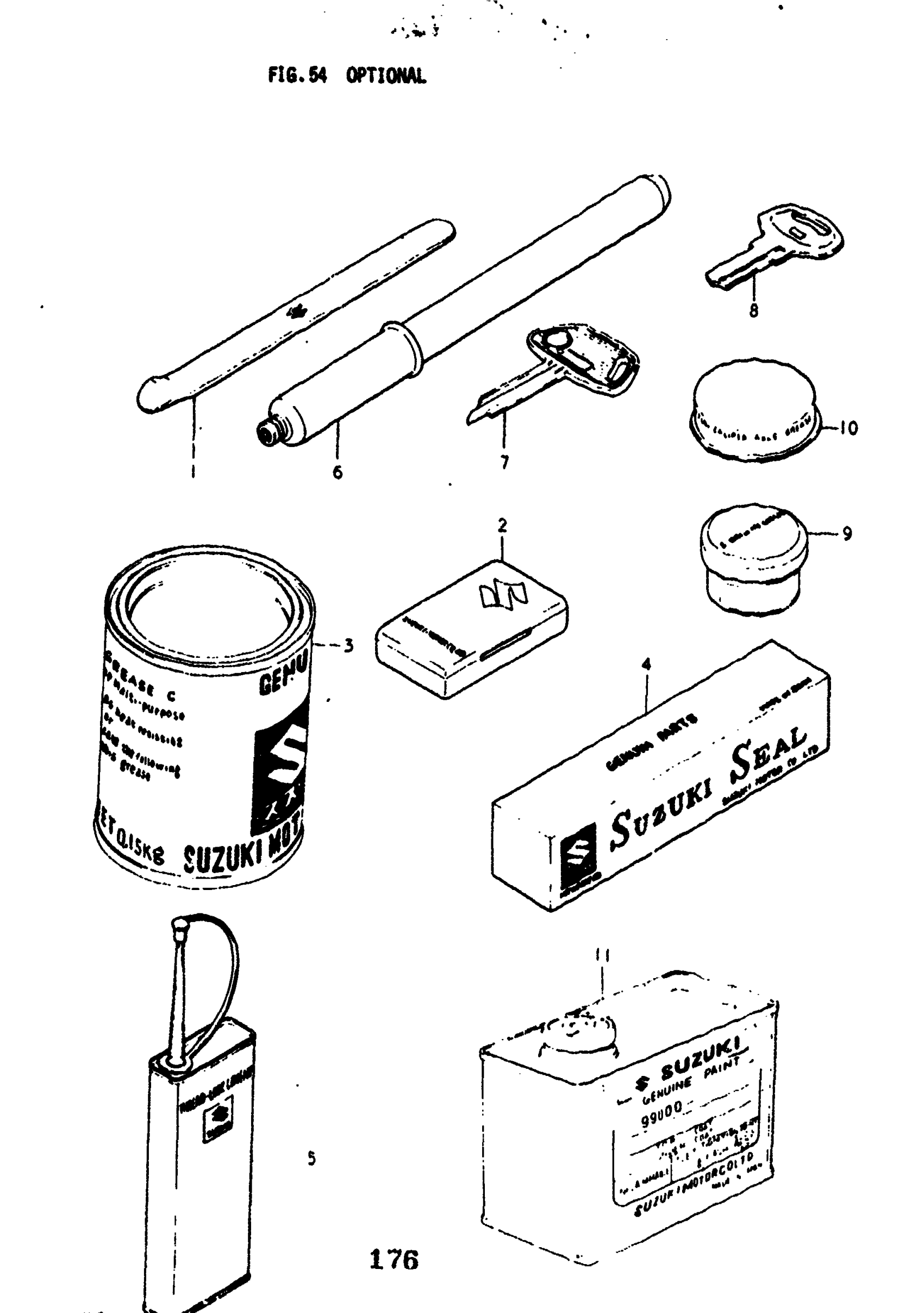

Suzuki GT250 (1977) OPTIONAL Diagram

#

Description
Price

1

LEVER, TIRE | K,L,M,A,B

09825-00002

Unavailable

2

TOOL, INNER TUBE REPAIRING | K,L,M,A,B

09826-00001

Unavailable

3

ECSTAR SPR GREA | K,L,M,A,B; 150G This part replaces 99000-25030.

99000-25490

$17.81

4

GASKET, LIQUID | K,L,M,A,B

99000-31010

Unavailable

5

CEMENT, THREAD LOCK | K,L,M,A,B; 200G

99000-32040

$29.95

6

INFLATOR, AIR | K,L,M,A,B

09821-00004

Unavailable

7

KEY, SLOTTED BLANK | K,L

37145-25700

Unavailable

8

KEY, BLANK | L,M,A,B; REVERS IBLE This part replaces 37145-19710.

37146-49300

$16.01

9

GREASE, SUZUKI BRAKE PAD | K,L,M,A,B; 20G

99000-25100

$12.95

10

GREASE, SUZUKI CALIPERS AXIE | K,L,M,A,B; 20G

99000-25110

Unavailable

11

PAINT (CANDY BRIGHT RED) | K; NET:500G

99000-10205-157

Unavailable

11

PAINT (PURE WHITE) | K; NET:500G This part replaces 99000-10105-064.

99000-10109-064

Unavailable

11

PAINT (CANDY TURQUOISE) | K; NET:500G

99000-10205-215

Unavailable

11

PAINT (CANDY WINE RED) | L; NET:500G

99000-10205-715

Unavailable

11

PAINT (CELULEAN BLUE METALLIC) | L; NET:500G

99000-10205-759

Unavailable

11

PAINT (BLACK SEMI-GLOSS) | M,A,B; NET:500G This part replaces 99000-10105-019.

99000-10109-291

Unavailable

11

PAINT (CANDY GORLD-4) | M; NET:500G

99000-10205-288

Unavailable

11

NO DESCRIPTION AVAILABLE | A; NET:500G This part replaces 99000-10205-00T.

99000-10209-00T

Unavailable

12

PAINT (BLACK SEMI-GLOSS) | B; NET:500G This part replaces 99000-10105-291.

99000-10109-291

Unavailable

12

PAINT (ROSEO RED METALLIC) | B; NET:500G

99000-10205-03G

Unavailable

GASKET SET | K,L,M

11400-18830

Unavailable

GASKET SET | A,B

11400-18840

Unavailable
