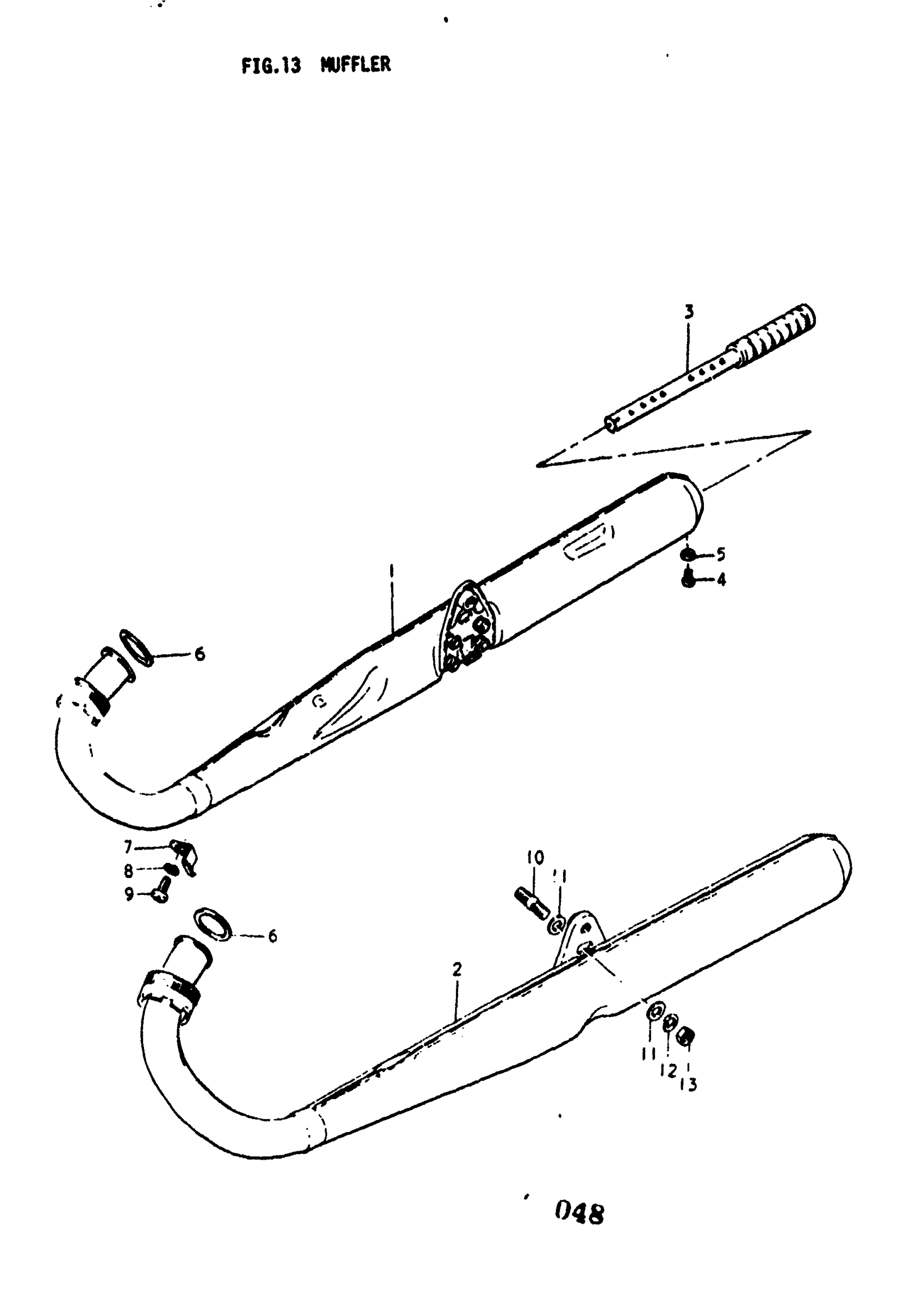

Suzuki GT250 (1977) MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY, RH | K,L; TO 14301-18701

14301-18700

Unavailable

1

MUFFLER ASSY, RH | M; TO 14301-18702

14301-18701

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 14301-18703.

14301-18722-H01

Unavailable

2

NO DESCRIPTION AVAILABLE | K,L; TO 14302-18701 This part replaces 14302-18700.

14302-18722-H01

Unavailable

2

NO DESCRIPTION AVAILABLE | M; TO 14302-18702 This part replaces 14302-18701.

14302-18722-H01

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 3 - 5 This part replaces 14302-18703.

14302-18722-H01

Unavailable

3

PIPE, BUFFLE | K,L,M

14510-18100

Unavailable

3

PIPE, BUFFLE | A,B

14510-18701

Unavailable

4

SCREW | K This part replaces 02112-05068.

09125-05122

$2.06

4

SCREW | L,M,A,B

09128-05004

Unavailable

5

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

6

GASKET, EXHAUST PIPE | K,L,M,A,B This part replaces 14181-11010.

14181-01D00

$7.11

7

PLATE, EXHAUST PIPE | K,L,M,A,B

14183-11000

Unavailable

8

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

9

SCREW | K,L,M,A,B This part replaces 02112-06128.

02112-06127

$1.84

10

BOLT | K,L,M,A,B

01411-10208

Unavailable

11

WASHER | K,L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

12

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

13

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19
