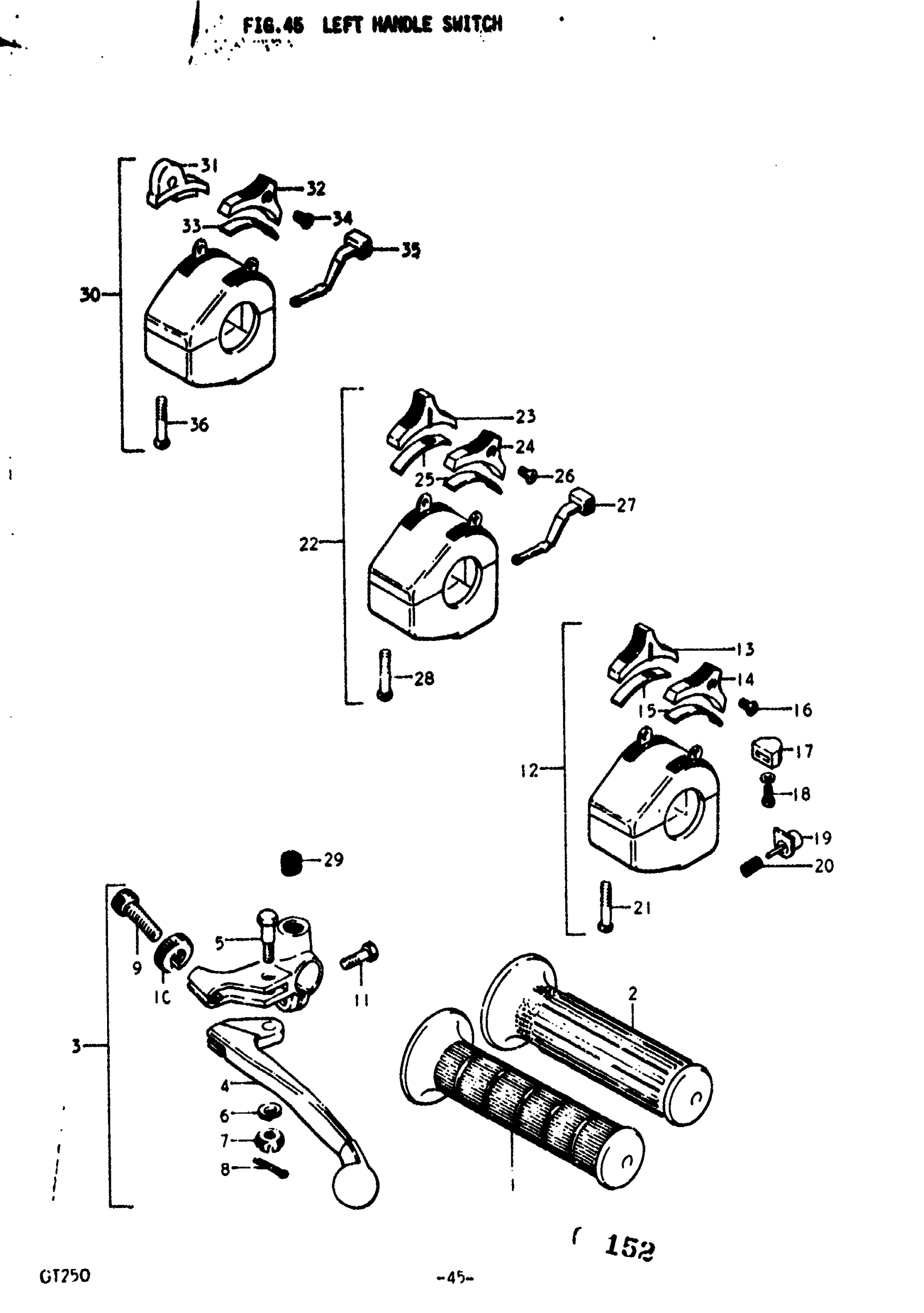

Suzuki GT250 (1977) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | K,L,M

57211-33010

Unavailable

2

GRIP, LH | A,B

57211-28600

$16.32

3

LEVER ASSY, CLUTCH | K,L; TO 57500-18601

57500-18600

Unavailable

3

LEVER ASSY, CLUTCH | M,A,B; Includes Item(s) 4 - 11 This part replaces 57500-18601.

57500-45010

Unavailable

4

LEVER, CLUTCH | K,L This part replaces 57620-31010.

57620-45010

Unavailable

4

LEVER, CLUTCH | A,B This part replaces 57620-11011.

57620-45010

Unavailable

5

BOLT | K,L,M,A,B This part replaces 57431-11010.

57431-11013

$6.31

6

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

7

NUT, CLUTCH LEVER PIVOT | K,L,M,A,B

57433-11010

$5.64

8

PIN | K,L,M,A,B This part replaces 04111-16158.

04111-1620A

$1.49

9

ADJUSTER, CABLE | K,L,M,A,B

57441-11010

$5.62

10

NUT, CABLE ADJUSTER | K,L,M,A,B

57442-11010

$2.79

11

BOLT | K,L,M,A,B This part replaces 01112-06208.

01500-06207

$2.28

12

SWITCH ASSY, HANDLE LH | K; TO 57700-18651

57700-18650

Unavailable

12

SWITCH ASSY, HANDLE LH | L; TO 57700-18654; Includes Item(s) 13 - 21

57700-18651

Unavailable

13

KNOB,HANDLE SWI | K,L; FROM 57712-33010 This part replaces 57712-33011.

57712-33012

$6.17

14

KNOB, LIGHTING | K,L This part replaces 57713-33010.

57713-33011

$5.24

15

PLATE, UPPER KNOB | K,L

57714-33010

$3.25

16

SCREW | K This part replaces 03121-03088.

03121-03068

$1.50

16

SCREW | L This part replaces 02121-03068.

02122-03067

$1.80

17

KNOB | K,L

57742-33010

Unavailable

18

SCREW | K,L This part replaces 02121-03068.

02122-03067

$1.80

19

BUTTON, HORN | K,L

57850-31010

Unavailable

20

SPRING, HORN BUTTON | K,L

57761-26010

Unavailable

21

SCREW | K,L This part replaces 02111-05207.

02112-05207

$1.97

22

SWITCH ASSY, HANDLE LH | M; TO 57700-18653; Includes Item(s) 23 - 28

57700-18652

Unavailable

23

KNOB,HANDLE SWI | M This part replaces 57712-33011.

57712-33012

$6.17

24

KNOB, LIGHTING | M This part replaces 57713-33010.

57713-33011

$5.24

25

PLATE | M

57714-33010

$3.25

26

SCREW | M This part replaces 03121-03088.

03121-03068

$1.50

27

KNOB, TURN SIGNAL SWITCH | M; TO 57650-33012

57650-33012

Unavailable

28

SCREW | M This part replaces 02111-05207.

02112-05207

$1.97

29

SPACER, REAR VIEW MIRROR | K,L

56741-31700

Unavailable

30

SWITCH ASSY, HANDLE LH | A,B; Includes Item(s) 31 - 36

37400-18610

Unavailable

31

KNOB, STOP | A,B

57718-36630

Unavailable

32

KNOB, LIGHTING | A,B This part replaces 57713-33010.

57713-33011

$5.24

33

PLATE | A,B

57714-33010

$3.25

34

SCREW | A,B This part replaces 03121-03088.

03121-03068

$1.50

35

LEVER, TURN SIGNAL | A,B

57650-33013

Unavailable

36

SCREW,5X22 | A,B This part replaces 09125-05105.

09125-05105-XC0

$4.10
