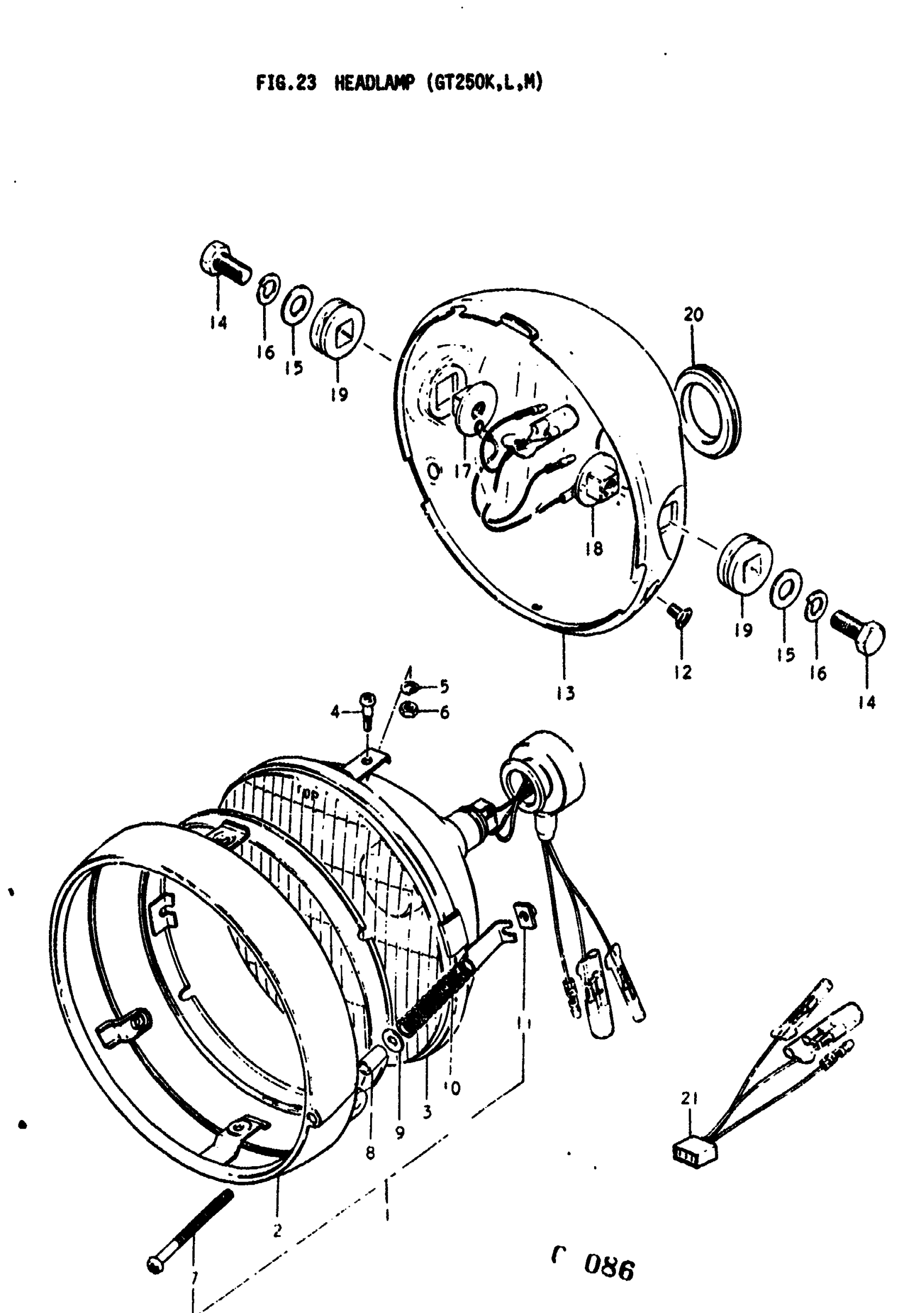

Suzuki GT250 (1977) HEADLAMP (GT250K Diagram

HEADLAMP ASSY | K;

35100-33611

Unavailable

HEADLAMP ASSY | L; FROM 35100-33611

35100-33612

Unavailable

HEADLAMP ASSY | M; Includes Item(s) 2 - 11

35100-36160

Unavailable

RIM | K,L,M

35111-33611

Unavailable

UNIT | K This part replaces 35121-33611.

35121-36160

Unavailable

UNIT | L; FROM 35121-33611 This part replaces 35121-33612.

35121-36160

Unavailable

UNIT | M

35121-36160

Unavailable

SCREW | K,L,M

35181-15611

$3.37

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

NUT | K,L,M This part replaces 08311-11048.

08310-00047

$2.23

SCREW | K,L,M This part replaces 35151-33611.

35151-45900

$3.65

SPACER | K,L,M

35165-31610

Unavailable

WASHER | K,L,M This part replaces 08322-21048.

08322-01047

$1.86

SPRING | K,L,M

35154-33611

Unavailable

NUT | K,L,M

35152-15611

$3.25

SCREW | K,L,M This part replaces 02231-05128.

02122-05127

$1.93

NO DESCRIPTION AVAILABLE | K This part replaces 51810-27300-157.

51810-27300-737

Unavailable

NO DESCRIPTION AVAILABLE | K This part replaces 51810-27300-215.

51810-27300-737

Unavailable

HOUSING, HEADLAMP | L,M; CHROME-PLATED

51810-30000

Unavailable

BOLT | K,L,M This part replaces 01221-08207.

01204-08207

$2.30

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$2.13

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

SPACER, HEADLAMP HOUSING RH | K; NOTE TO 51821-27301 USED WITH 51827-27301

51821-27300

Unavailable

SPACER, HEADLAMP HOUSING RH | L,M; NOTE

51821-27301

Unavailable

SPACER, HEADLAMP HOUSING LH | K; NOTE TO 51822-27301 USED WITH 51827-27301

51822-27300

Unavailable

SPACER, HEADLAMP HOUSING LH | L,M

51822-27301

Unavailable

CUSHION, HEADLAMP HOUSING | K; TO 51287-27301 USED WITH 51821-27301 OR 51822-27301

51827-27300

Unavailable

CUSHION,HEADLAM | L,M This part replaces 51827-27301.

51827-27303

$3.66

GROMMET, HEADLAMP HOUSING | K,LM

51845-31031

$4.52

LEAD WIRE, HEADLAMP | M

36852-15670

Unavailable
