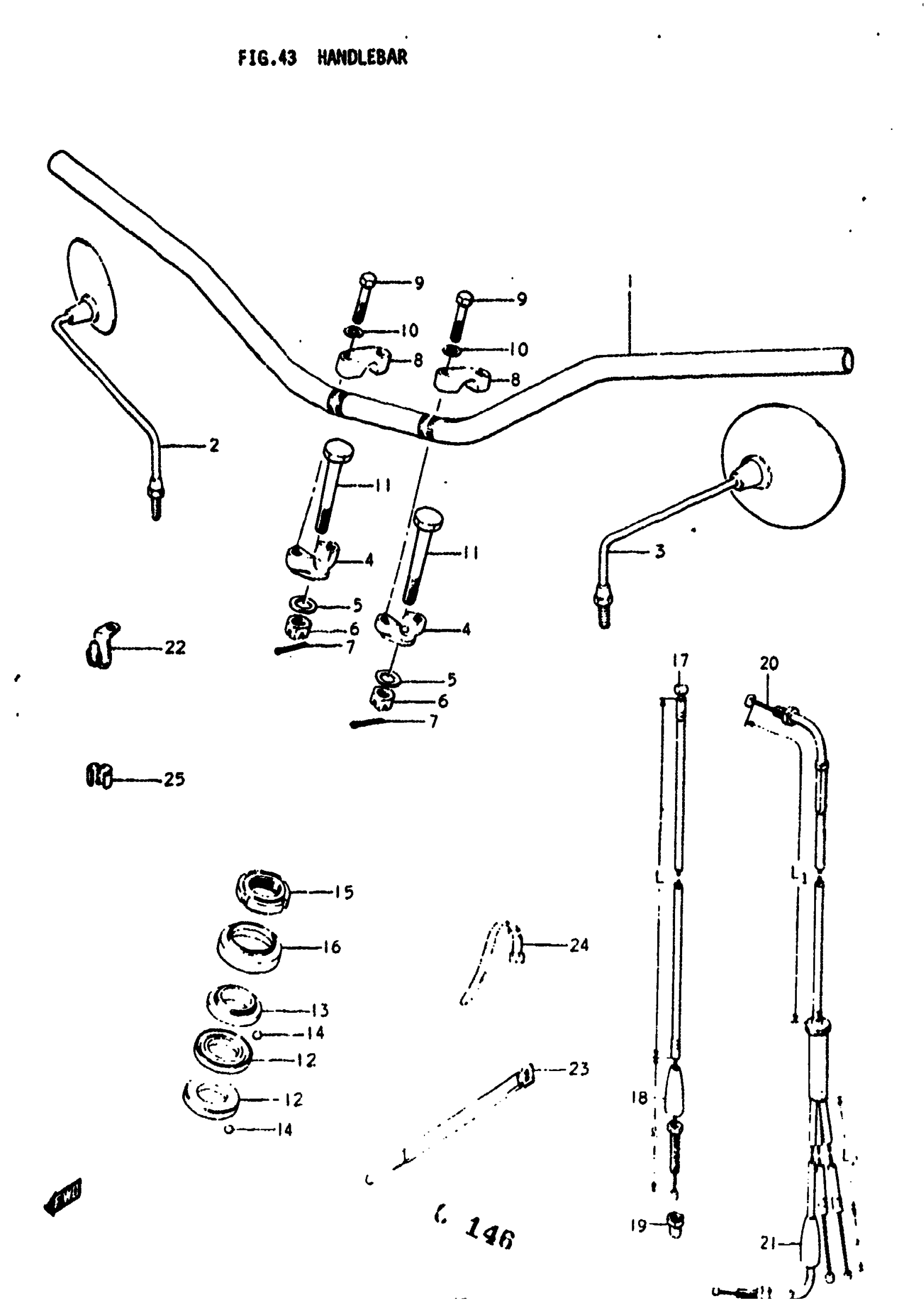

Suzuki GT250 (1977) HANDLEBAR Diagram

HANDLEABR | K,L,M,A,B

56111-33000

Unavailable

MIRROR ASSY,RR | K,L; 8 SCREW This part replaces 56500-31010.

56500-23412

$70.29

MIRROR ASSY,RR | M,A,B; 10 SCREW This part replaces 56500-31011.

56500-31014

$48.02

MIRROR ASSY,RR | K,L; 8 SCREW This part replaces 56600-31010.

56600-23412

$82.68

MIRROR ASSY,RR | M,A,B; 10 SCREW This part replaces 56600-31011.

56600-31014

$48.02

HOLDER, HANDLE LOWER (BLACK) | K,L This part replaces 56221-33600.

56221-42A00-291

$45.38

WASHER | K,L; 10.5x28x2.3

09160-10035

$1.78

NUT | K,L This part replaces 08314-11108.

08314-3110A

$1.99

PIN | K,L This part replaces 04111-25308.

04111-2530A

$1.49

HOLDER, HANDLE, UPPER | K,L,M,A,B This part replaces 56211-27200-019.

56211-27200-291

$17.90

BOLT | K,L,M,A,B This part replaces 01221-08357.

01204-08357

$2.09

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

BOLT | K,L

09101-10015

Unavailable

INNER RACE, STEERING | K,L,M,A,B; FROM 51611-33001

51611-33002

$13.81

OUTER RACE, STEERING UPPER | K,L,M,A,B

51621-30001

Unavailable

STEEL BALL | K,L,M,A,B

06111-08003

$1.49

NUT, STEERING STEM | K,L,M,A,B

51631-28000

$17.37

DUST SEAL, STEERING UPPER | K,L,M,A,B

51643-30000

Unavailable

CABLE,CLUTCH | K,L,M,A,B; L:1080, L:116; Includes Item(s) 18 - 19 This part replaces 58200-15100.

58200-33601

Unavailable

BOOT | K,L,M,A,B

09287-10001

Unavailable

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

$2.13

CABLE ASSY, THROTTLE | K,L,M,A,B; L1:650, L2:180, L3:270 FROM 58300-18401; Includes Item(s) 21

58300-18402

Unavailable

SEAL,DUST | K,L,M,A,B This part replaces 09287-07002.

09287-07006

$2.30

CLAMP | K; FROM 09403-00031

09403-11305

Unavailable

CLAMP | K,L,BM,A This part replaces 09407-18301.

09407-18302

$2.28

BAND | K,LM,A,B

09407-12402

$3.04

CLIP | K,L,M,A,B

09408-00005

Unavailable
