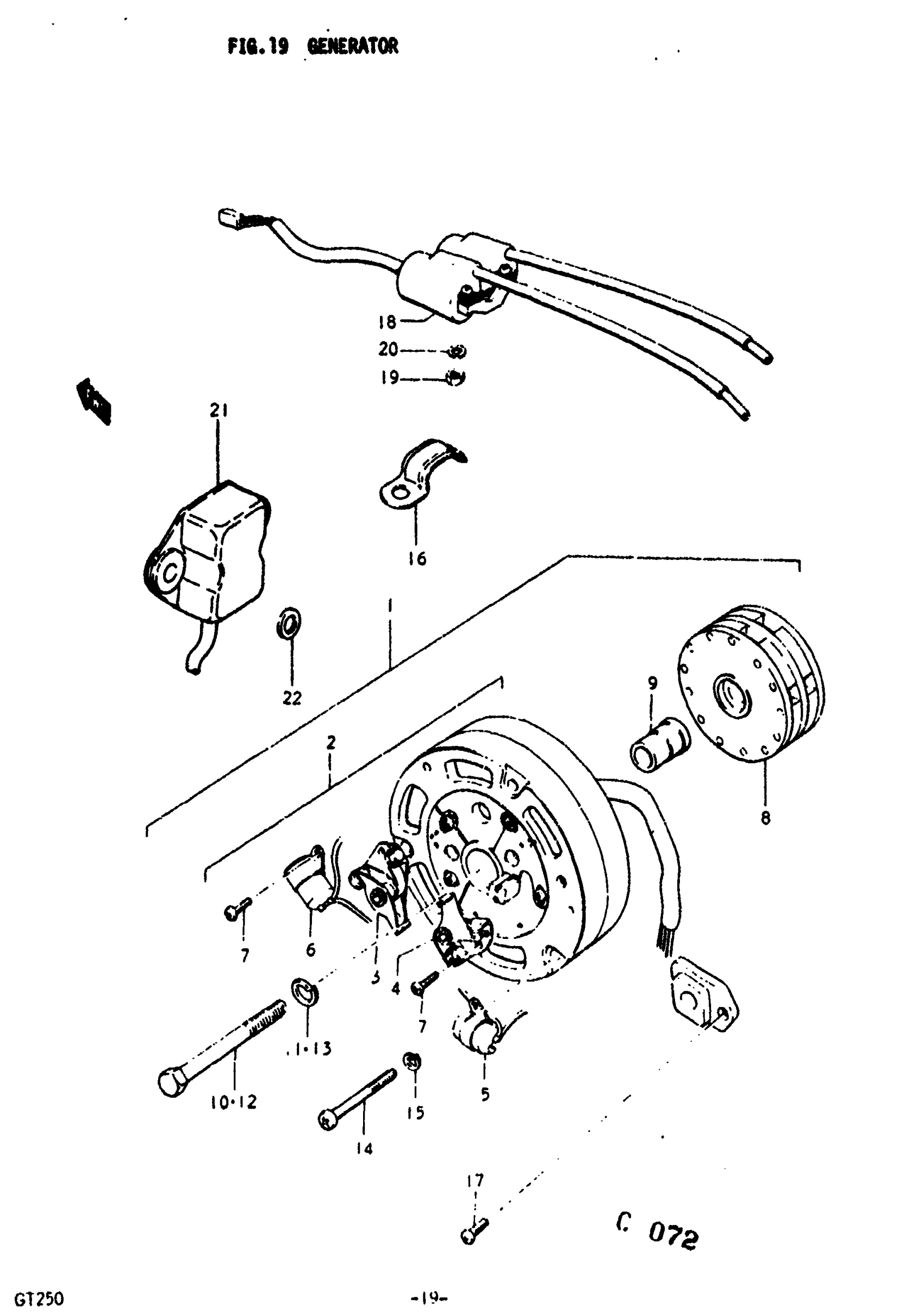

Suzuki GT250 (1977) GENERATOR Diagram

#

Description
Price

1

AC GENERATOR ASSY | K,L,M; TO 31400-18523 USED WITH 01122-08658 AND 08321-21088 This part replaces 31400-18521.

31400-18524

Unavailable

1

AC GENERATOR ASSY | A,B; Includes Item(s) 2 - 11

31400-18524

Unavailable

2

STATOR ASSY | K,L,M; TO 31401-18524

31401-18521

Unavailable

2

STATOR ASSY | A,B

31401-18524

Unavailable

3

POINT ASSY, LH | K,L,M,A,B

31440-15020

Unavailable

4

POINT ASSY, RH | K,L,M,A,B

33172-33020

Unavailable

5

CONDENSER, RH | K,L,M; TO 31641-18522 This part replaces 31641-18521.

31641-18522

Unavailable

5

CONDENSER, RH | A,B

31641-18522

Unavailable

6

CONDENSER, LH | K,L,M; TO 31642-18522 This part replaces 31642-18521.

31642-18522

Unavailable

6

CONDENSER, LH | A,B

31642-18522

Unavailable

7

SCREW | K,L,M This part replaces 02111-04067.

02112-0406B

$1.55

7

SCREW | A,B This part replaces 02312-04087.

09125-04001

Unavailable

8

ROTOR | K,L,M,A,B

31710-18521

Unavailable

9

CAM, BREAKER | K,L,M,A,B

31724-18521

Unavailable

10

BOLT, ROTOR | K,L,M; TO 01122-08658

31791-15020

Unavailable

11

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

12

BOLT | A,B This part replaces 01122-08658.

01500-0865B

$3.49

13

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

14

6X50 CROSS SCRE | K,L,M,A,B This part replaces 02112-06508.

02112-06507

$1.99

15

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

16

CLAMP | K,L,M,A,B; FROM 09403-08304 This part replaces 09403-07301.

09403-07309

Unavailable

17

SCREW | K,L,M,A,B This part replaces 02112-06108.

02112-06107

$1.49

18

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 33410-15020.

33410-15021

Unavailable

19

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

$2.13

20

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

21

REGULATOR ASSY, VOLTAGE | A,B

32500-18420

Unavailable

22

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13
