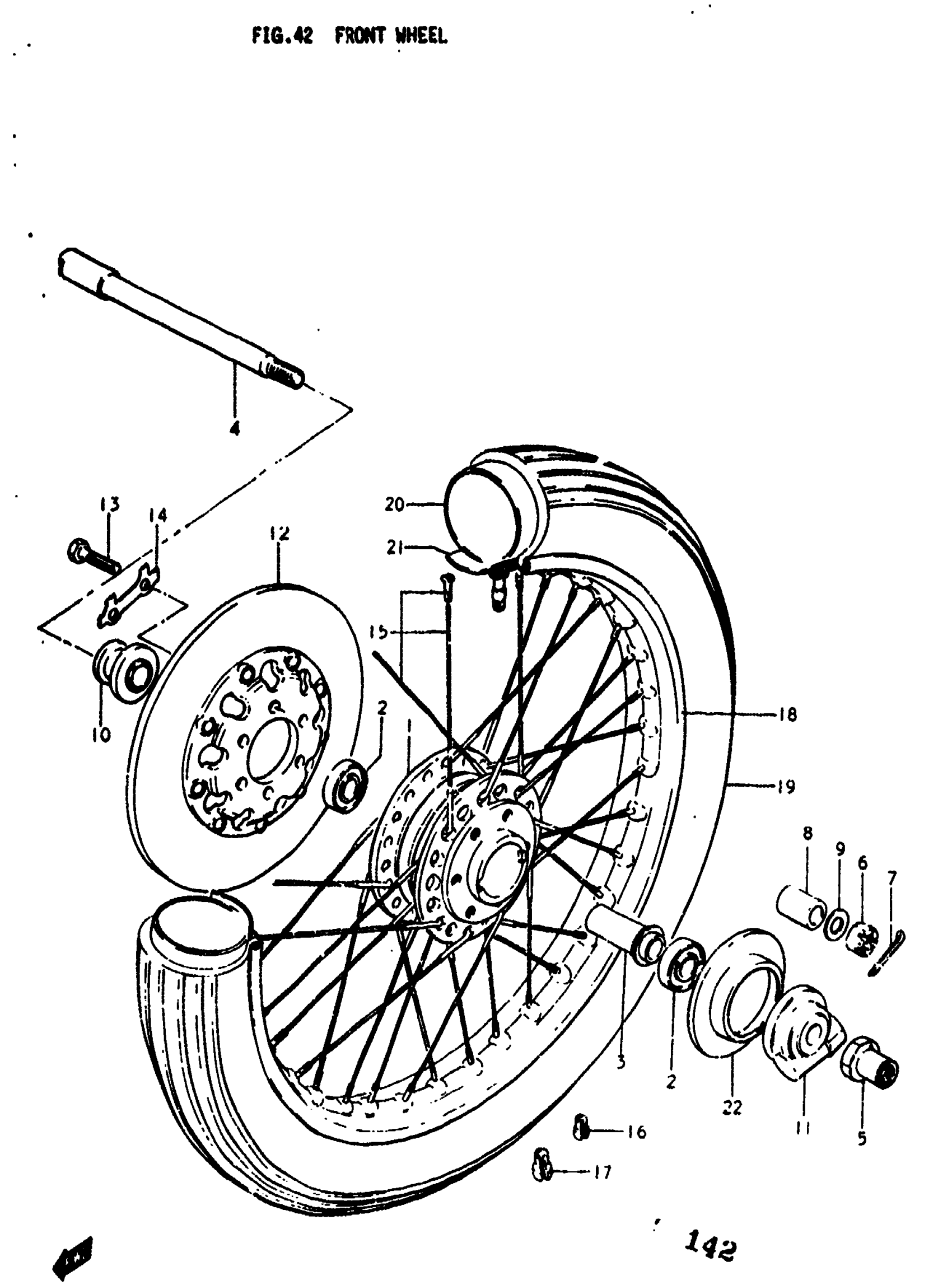

Suzuki GT250 (1977) FRONT WHEEL Diagram

#

Description
Price

1

HUB SET, FRONT | K,L; TO 54100-18831

54100-18830

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 2 - 3 This part replaces 54100-18831.

54111-47002

Unavailable

2

BEARING | K,L,M,A,B This part replaces 08123-63020.

08123-6302B

$22.74

3

SPACER, BEARING | K,L,M,A,B

54730-18400

$20.45

4

AXLE, FRONT | K

54711-33000

Unavailable

4

AXLE,FRONT | L; TO 54711-33002 USED WITH 09180-15034 This part replaces 54711-33001.

54711-3300V

Unavailable

4

AXLE,FRONT | M,A,B This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT, AXLE | K

54721-31000

Unavailable

6

NUT | L,M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

7

PIN | L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

8

SPACER | L,M,AB

09180-15034

Unavailable

9

WASHER | L,M,A,B This part replaces 08322-21128.

08322-01127

$1.84

10

SPACER, AXLE, RH | K,L,M This part replaces 54740-18400.

54740-18402

Unavailable

10

SPACER, AXLE, RH | A,B; FROM 54740-18400 This part replaces 54740-18401.

54740-18402

Unavailable

11

BOX ASSY,SPEEDO | K,L,M,A,B This part replaces 54600-18402.

54600-18403

Unavailable

12

NO DESCRIPTION AVAILABLE | K,L,M,A,B; OD:275, T:6.7 FROM 59210-18400 This part replaces 59210-18401.

59210-18402

Unavailable

13

BOLT | K,L,M,A,B; 8x40

09100-08094

$2.71

14

WASHER | K,L,M,A,B

09169-08016

$2.41

15

SPOKE ASSY, FRONT | K,L,M,A,B This part replaces 55300-18819.

55320-18420

$73.55

16

BALANCER WHEEL (30G) | 0~2) This part replaces 55412-11000.

55413-41F00

$7.50

17

BALANCER WHEEL (15G) | 0~2) This part replaces 55411-11000.

55411-26G00

$7.73

18

RIM, FRONT WHEEL | K,L,M,A,B; 1.60A-18

55311-18420

Unavailable

19

TIRE | K,L,M; 3.00-18

55100-18610

Unavailable

19

NO DESCRIPTION AVAILABLE | A,B; 3.00-18 This part replaces 55100-18620.

55100-38331

Unavailable

20

TUBE ASSY,WHEEL | K,L,M,A; 3.00-18 This part replaces 55200-18030.

55200-26F01

$31.27

20

TUBE ASSY,WHEEL | B; 3.00-18 This part replaces 55200-11601.

55200-26F01

$31.27

21

PROTECTOR, INNER | K,L,M,A; 22x18

55261-18030

Unavailable

21

IN TUBE PROTECT | B; 22x18 This part replaces 55261-11010.

55261-26F10

$4.39

22

DUST SEAL | K,L,M,A,B

54871-18400

Unavailable
