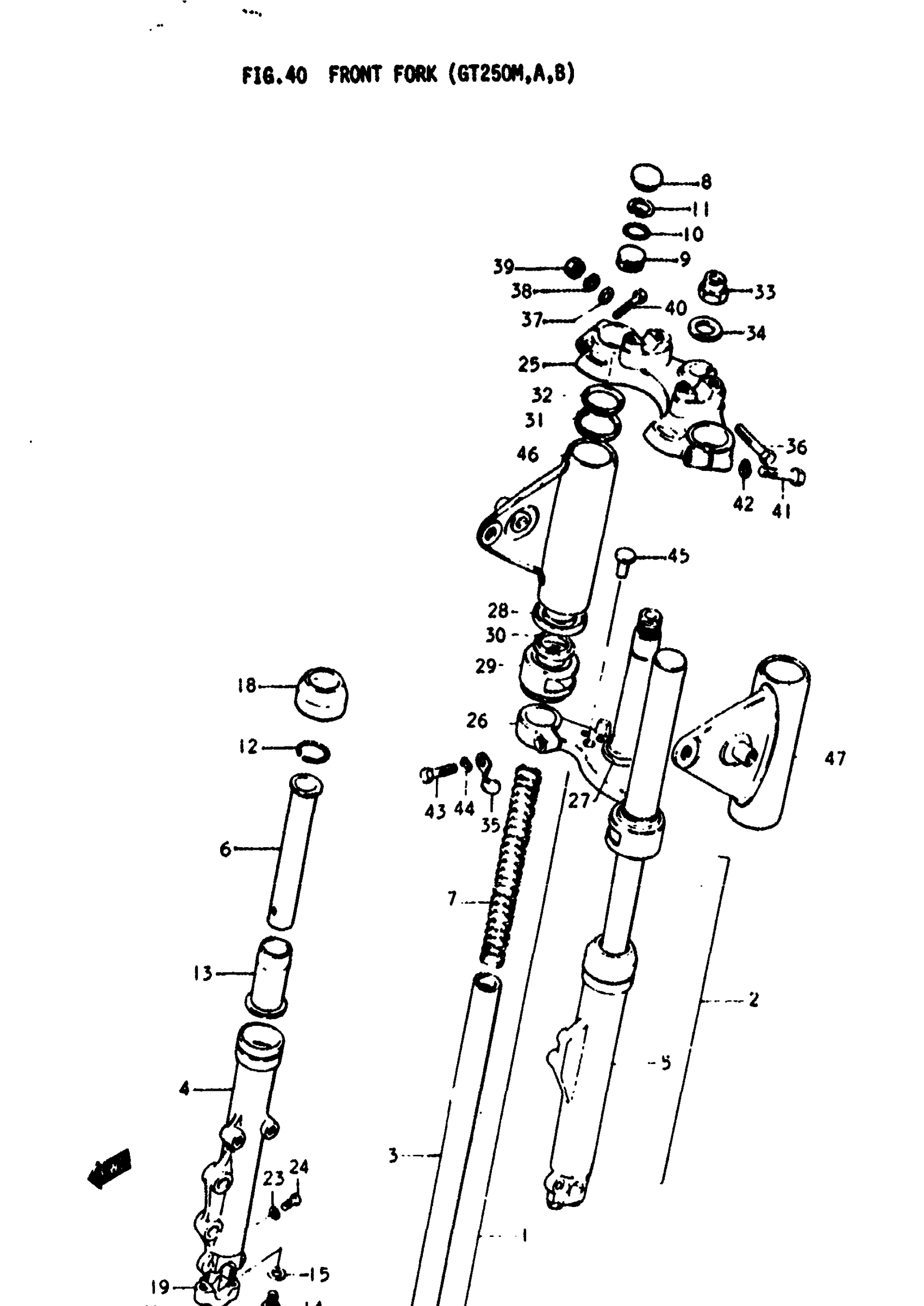

Suzuki GT250 (1977) FRONT FORK (GT250M Diagram

#

Description
Price

1

DAMPER ASSY, RH | M,A; TO 51103-33132 This part replaces 51103-33131.

51103-33132

Unavailable

1

DAMPER ASSY, FRONT FORK RH | B

51103-33132

Unavailable

2

DAMPER ASSY, FRONT FORK LH | M,A; TO 51104-33132

51104-33131

Unavailable

2

DAMPER ASSY, FRONT FORK LH | B; Includes Item(s) 3 - 8

51104-33132

Unavailable

3

PIPE | M,A,B

51110-33131

Unavailable

4

OUTER TUBE, RH | M,A; TO 51130-33132 This part replaces 51130-33131.

51130-33132

Unavailable

4

BOTTOM CASE, RH | B

51130-33132

Unavailable

5

OUTER TUBE, LH | M,A; TO 51140-33132 This part replaces 51140-33131.

51140-33132

Unavailable

5

BOTTOM CASE, LH | B

51140-33132

Unavailable

6

PIPE, SEAT | M,A,B

51146-33130

Unavailable

7

SPRING | M,A,B

51171-33131

Unavailable

8

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 51189-33130.

51189-13620

Unavailable

9

SEAT, SPRING UPPER | M,A,B; Includes Item(s) 10 - 24

51172-33130

Unavailable

10

O RING | M,A,B

51181-33131

$4.68

11

CLIP | M,A,B

08331-41268

Unavailable

12

RING | M,A,B

51196-33130

$8.12

13

LOCK PLEACE, OIL | M,A,B

51195-33130

Unavailable

14

BOLT | M,A,B This part replaces 51147-31030.

51147-48130

$4.34

15

O RING | M,A,B This part replaces 51148-31030.

51148-36011

$3.56

16

OIL SEAL | M,A,B This part replaces 51153-33730.

51153-02B00

$20.06

17

RING, OIL SEAL STOPPER | M,A,B This part replaces 51156-33130.

51156-02B00

$5.36

18

DUST SEAL | M,A,B This part replaces 51571-33131.

51571-37310

$20.15

19

HOLDER, FRONT AXLE | M,A,B

51132-31030

Unavailable

20

WASHER | M,A,B This part replaces 08322-21088.

08322-01087

$2.13

21

.LOCK WASHER | M,A,B This part replaces 08321-21088.

08321-01087

$2.13

22

NUT | M,A,B This part replaces 08311-11088.

08310-00087

$2.13

23

GASKET | M,A,B

51183-33030

Unavailable

24

SCREW | M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

25

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 51311-33002-019.

51311-33002-291

Unavailable

26

STEERING STEM | M,A,B; Includes Item(s) 27

51410-33700

Unavailable

27

RACE, OUTER | M,A,B

51621-33001

$16.25

28

SEAT, HEADLAMP BRACKET | M,A,B

51551-31000

Unavailable

29

COVER, LOWER BRACKET | M,A,B

51570-37000

Unavailable

30

CUSHION, HEADLAMP BRACKET | M,A,B

51553-33000

Unavailable

31

CAP, HEADLAMP BRACKET | M,A,B

51555-31000

Unavailable

32

CUSHION, HEADLAMP BRACKET UPPE | M,A,BM,A,B

51556-33000

Unavailable

33

NUT | M,A,B This part replaces 51353-31700.

51353-31710

Unavailable

34

WASHER, FORK UPPER BRACKET | M,A,B

51356-31700

Unavailable

35

CLAMP, CABLE | M,A,B

34991-18100

Unavailable

36

BOLT | M,A,B This part replaces 01122-08508.

01500-08507

$3.05

37

WASHER | M,A,B This part replaces 08322-11088.

08322-01087

$2.13

38

.LOCK WASHER | M,A,B This part replaces 08321-21088.

08321-01087

$2.13

39

NUT | M,A,B This part replaces 08312-12087.

08310-00087

$2.13

40

BOLT | M,A,B; 10x55

09100-10021

Unavailable

41

BOLT | M,A,B This part replaces 01121-10407.

01500-10407

$3.55

42

LOCK WASHER | M,A,B This part replaces 08321-21108.

08321-01107

$1.84

43

BOLT | M,A,B This part replaces 01122-10408.

01500-10407

$3.55

44

LOCK WASHER | M,A,B This part replaces 08321-21108.

08321-01107

$1.84

45

CAP, FORK STEERING | M,A,B

09250-08005

$2.45

46

BRACKET, HEADLAMP RH | M,A

51530-33100

Unavailable

46

NO DESCRIPTION AVAILABLE | B This part replaces 51530-33611-291.

51500-33820-126

Unavailable

47

BRACKET, HEADLAMP LH | M,A

51540-33100

Unavailable

47

NO DESCRIPTION AVAILABLE | B This part replaces 51540-33611-291.

51500-33820-126

Unavailable
