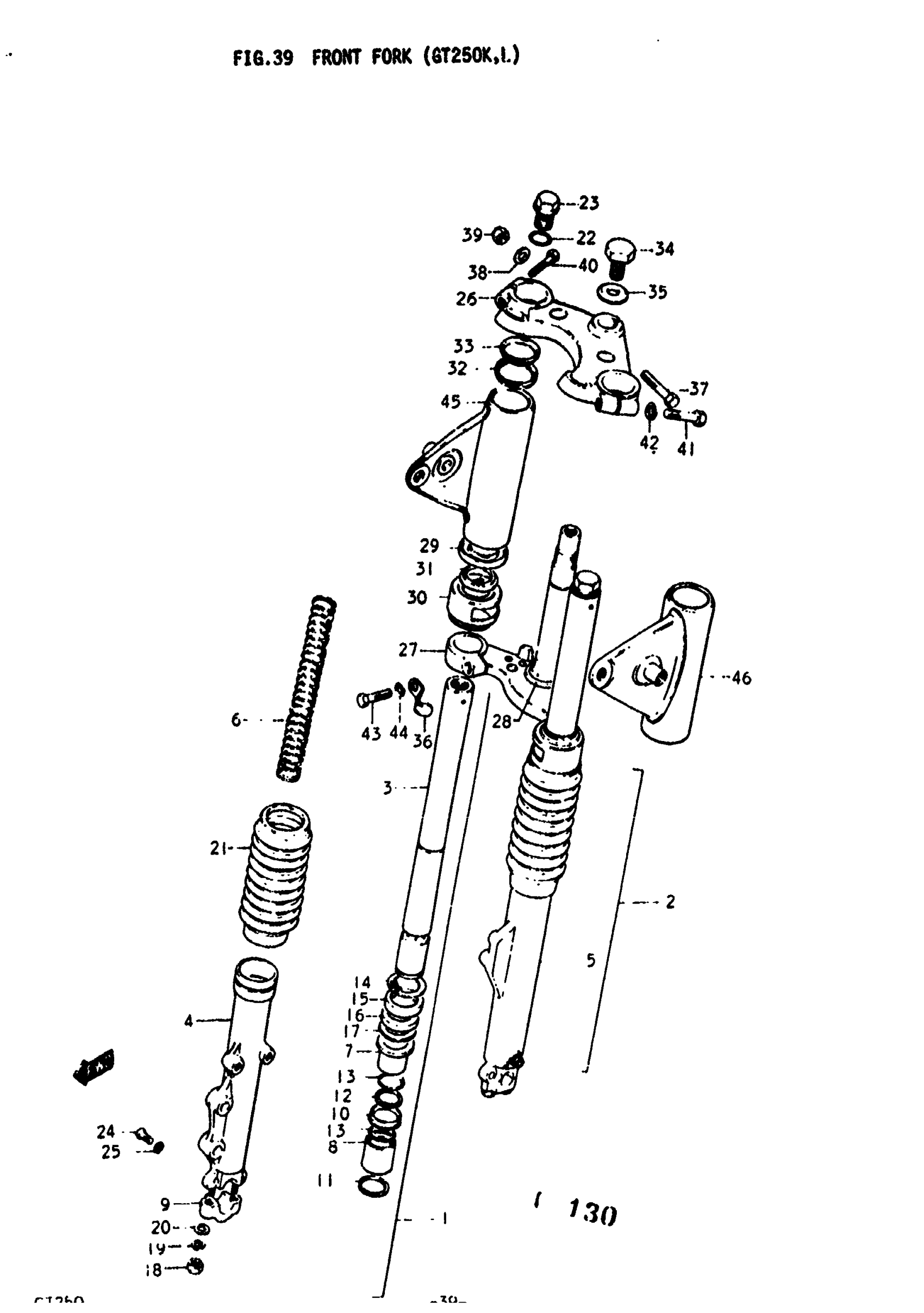

Suzuki GT250 (1977) FRONT FORK (GT250K Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH | K; TO 51103-18431

51103-18430

Unavailable

1

DAMPER ASSY, FRONT FORK RH | L

51103-18431

Unavailable

2

DAMPER ASSY, FRONT FORK LH | K; TO 51104-18431

51104-18430

Unavailable

2

DAMPER ASSY, FRONT FORK LH | L; Includes Item(s) 3 - 21

51104-18431

Unavailable

3

INNER TUBE | K,L

51111-33030

Unavailable

4

OUTER TUBE, RH | K,L

51130-33730

Unavailable

5

OUTER TUBE, LH | K,L

51130-33031

Unavailable

6

SPRING | K,L

51171-18430

Unavailable

7

GUIDE, INNER TUBE | K

51152-33030

Unavailable

7

GUIDE, INNER TUBE | L; FROM 51152-33030

51152-33031

Unavailable

8

PISTON, INNER TUBE | K,L

51112-33030

Unavailable

9

HOLDER, FRONT AXLE | K,L

51132-31030

Unavailable

10

VALVE, DAMPER | K,L

51114-33030

Unavailable

11

SNAP RING, PISTON | K,L

51119-33030

Unavailable

12

RING, VALVE STOPPER | K,L

51118-33030

Unavailable

13

RING, PISTON STOPPER | K,L

51116-33030

Unavailable

14

CIRCLIP | K,L

51156-33030

Unavailable

15

OIL SEAL | K,L This part replaces 51153-33730.

51153-02B00

$20.06

16

DUST SEAL | K,L

51173-33030

Unavailable

17

RING | K,L

51158-33730

Unavailable

18

NUT | K,L This part replaces 08311-11088.

08310-00087

$2.13

19

.LOCK WASHER | K,L This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER | K,L This part replaces 08322-21088.

08322-01087

$2.13

21

BOOT | K,L

51571-33030

Unavailable

22

O RING | K,L; Includes Item(s) 23 - 25

51181-33030

Unavailable

23

CAP, INNER TUBE | K,L

51351-33030

Unavailable

24

SCREW | K,L This part replaces 02111-04067.

02112-0406B

$1.55

25

GASKET | K,L

51183-33030

Unavailable

26

NO DESCRIPTION AVAILABLE | K,L This part replaces 51311-33001-019.

51311-33002-291

Unavailable

27

STEERING STEM | K,L

51410-33001

Unavailable

28

OUTER RACE, STEERING LOWER | K,L

51621-33001

$16.25

29

SEAT, HEADLAMP BRACKET | K,L

51551-31000

Unavailable

30

GUIDE, BOOT | K,L

51570-18400

Unavailable

31

CUSHION, HEADLAMP BRACKET | K,L

51553-33000

Unavailable

32

CAP, HEADLAMP BRACKET | K,L

51555-31000

Unavailable

33

CUSHION, HEADLAMP BRACKET UPPE | K,LR

51556-33000

Unavailable

34

BOLT | K,L

09104-10005

Unavailable

35

WASHER | K,L; 10.2x33x3.2

09160-10036

Unavailable

36

CLAMP, CABLE | K,L

34991-18100

Unavailable

37

BOLT | K,L This part replaces 01122-08508.

01500-08507

$3.05

38

WASHER | K,L This part replaces 08322-11088.

08322-01087

$2.13

39

NUT | K,L This part replaces 08312-12087.

08310-00087

$2.13

40

BOLT | K,L; 10x55

09100-10021

Unavailable

41

BOLT | K,L This part replaces 01121-10407.

01500-10407

$3.55

42

LOCK WASHER | K,L This part replaces 08321-21108.

08321-01107

$1.84

43

BOLT | K,L This part replaces 01122-10408.

01500-10407

$3.55

44

LOCK WASHER | K,L This part replaces 08321-21108.

08321-01107

$1.84

45

NO DESCRIPTION AVAILABLE | K This part replaces 51530-33611-157.

51500-33820-126

Unavailable

45

NO DESCRIPTION AVAILABLE | K This part replaces 51530-33611-215.

51500-33820-126

Unavailable

45

BRACKET, HEADLAMP RH | L

51530-33100

Unavailable

46

NO DESCRIPTION AVAILABLE | K This part replaces 51540-33611-157.

51500-33820-126

Unavailable

46

NO DESCRIPTION AVAILABLE | K This part replaces 51540-33611-215.

51500-33820-126

Unavailable

46

BRACKET, HEADLAMP LH | L

51540-33100

Unavailable
