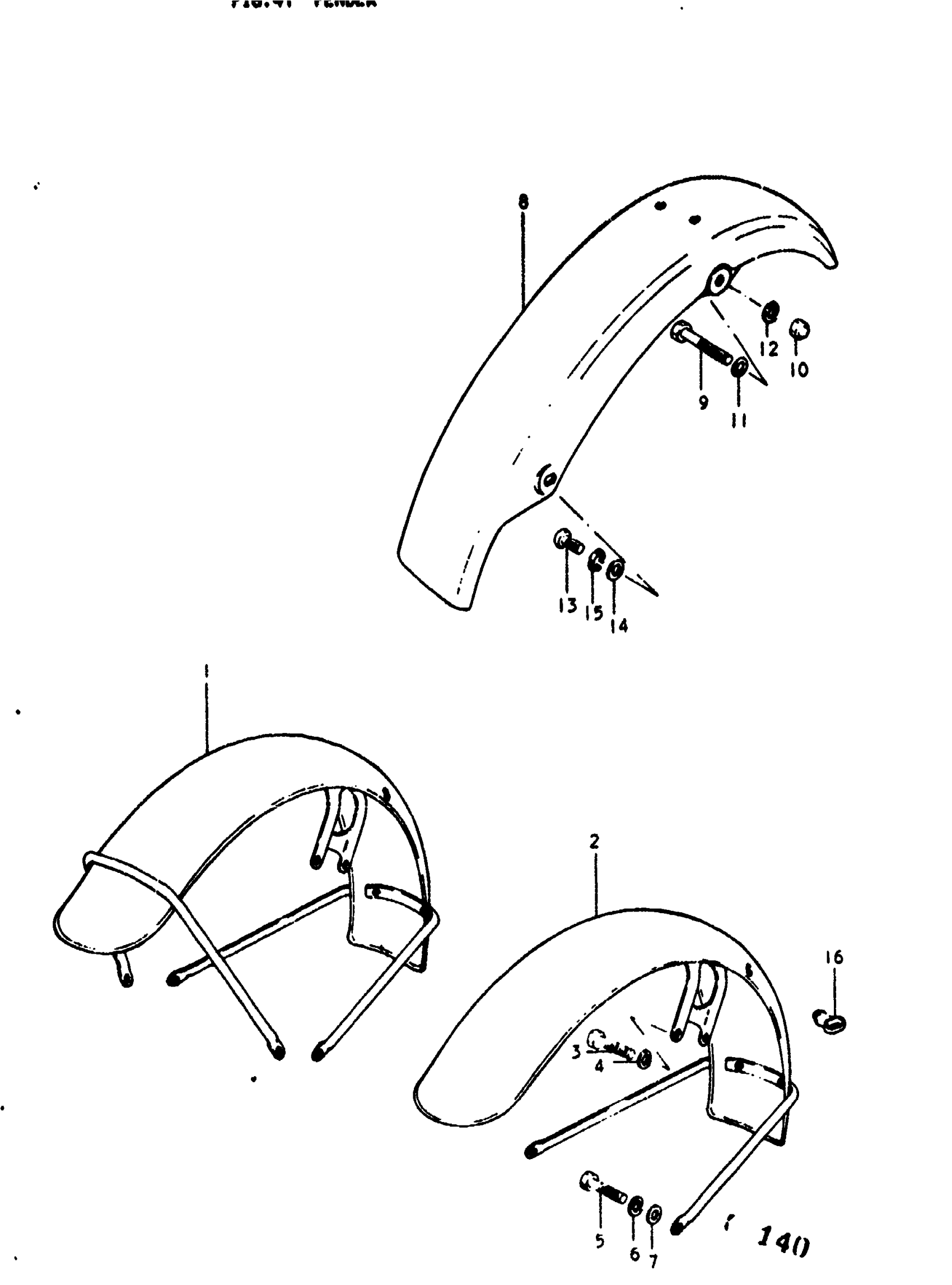

Suzuki GT250 (1977) FENDER Diagram

#

Description
Price

1

FENDER, FRONT | K,L; TO 53100-18101

53100-18100

Unavailable

1

FENDER, FRONT | M; TO 53100-18102 This part replaces 53100-18101.

53100-18102

Unavailable

2

FENDER, FRONT | A,B

53100-18102

Unavailable

3

PLUG, DRAIN | K,L,M,A,B This part replaces 01122-08168.

01500-0816B

$2.50

4

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

5

BOLT, CANISTER | K,L,MA,B This part replaces 01112-06168.

01500-06167

$1.97

6

LOCK WASHER | K,L,MA,B This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER | K,L,MA,B This part replaces 08322-21068.

08322-01067

$2.13

8

FENDER, REAR | K,L,M,A

63110-18620

Unavailable

8

FENDER, REAR | B

63110-18680

Unavailable

9

BOLT | K This part replaces 01122-08458.

01500-08453

$2.50

9

NO DESCRIPTION AVAILABLE | L; 8x47 This part replaces 09100-08002.

09100-08290

Unavailable

9

BOLT | M,A,B This part replaces 01122-08508.

01500-08507

$3.05

10

NUT | K,L,M,A,B This part replaces 08313-11087.

08313-10087

$2.28

11

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$2.13

12

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

13

BOLT, LH | K,L,M,A,B; 8x14 This part replaces 09100-08067.

09100-08143

$2.29

14

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$2.13

15

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

16

GUIDE, METER CABLE | K,L,M,A,B; FROM 58621-21201 This part replaces 58621-21202.

58621-21204

$6.68
