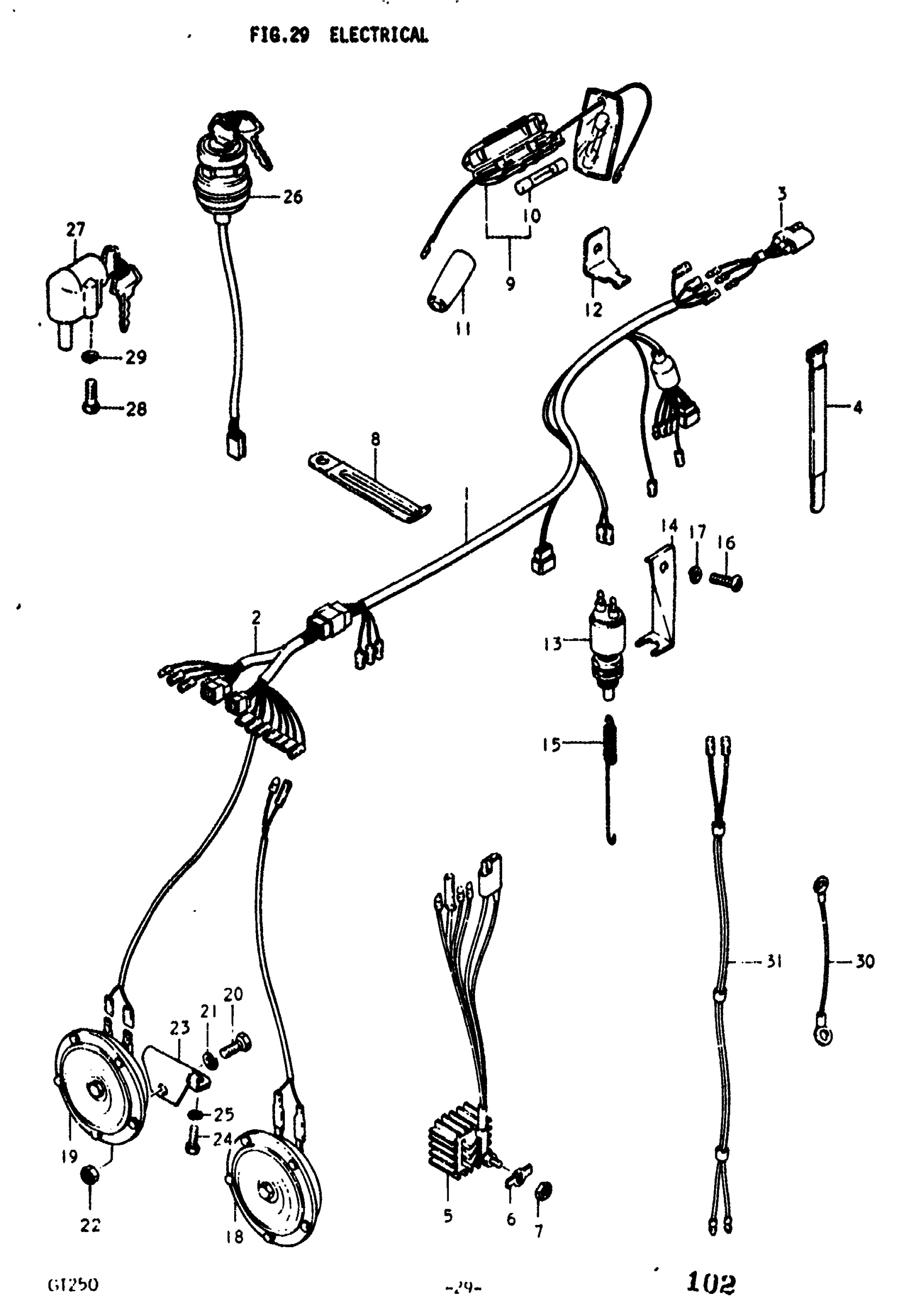

Suzuki GT250 (1977) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS | K,L,M

36610-18100

Unavailable

1

WIRING HARNESS | A

36610-18101

Unavailable

1

WIRING HARNESS | B; Includes Item(s) 2 - 3

36610-18102

Unavailable

2

LEAD WIRE, HANDLE SWITCH | K,L,M,A,B

36875-18100

Unavailable

3

LEAD WIRE, REAR COMBINATION | K,L,M,A

36876-18100

Unavailable

4

CLAMP | K,L,M,A; 3 L:180B; L:180 This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP | K; L:140L; L:140M,A; L:140 This part replaces 09407-14301.

09407-18302

$2.28

4

CLAMP | L; L:110M,A,B; L:110 This part replaces 09407-11302.

09407-18302

$2.28

5

RECTIFIER | K,L,M,A,B; FROM 32800-18520

32800-18521

Unavailable

6

LOCK WASHER | K,L,M,A,B

09169-05001

Unavailable

7

NUT | K,L,M,A,B This part replaces 08311-11058.

08310-00057

$1.84

8

CLAMP | K,L,M,A,B This part replaces 09404-08404.

09404-08420

$3.16

9

FUSE CASE ASSY | K,L,M,A,B; Includes Item(s) 10 This part replaces 36740-15010.

36740-15011

$9.38

10

FUSE | K,L,M,A,B; 15A

09481-15001

$2.06

11

BOOT | K,L,M,A,B

09287-10001

Unavailable

12

BRACKET, FUSE CASE | L

36791-18400

Unavailable

13

SWITCH, BRAKE LAMP | K,L,M,A,B

37610-53011

$30.75

14

BRACKET, BRAKE LAMP SWITCH | K,L,M,A,B

37752-18001

Unavailable

15

SPRING | K,L,M,A,B

09443-06005

$3.37

16

BOLT, CANISTER | K,L,M,A,B This part replaces 01112-06168.

01500-06167

$1.97

17

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

18

HORN | K; TO 38500-31011

38500-31010

Unavailable

18

HORN | L,M; TO 38500-31012 USED WITH 36870-31030

38500-31011

Unavailable

19

HORN | A,B This part replaces 38500-31012.

38500-31646

Unavailable

20

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

21

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

22

NUT | K,L,M,A,B This part replaces 08312-32088.

08310-00087

$2.13

23

BRACKET, HORN | K,L,M,A,B

38591-33000

Unavailable

24

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

25

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

26

SWITCH ASSY IGN | K,L,M This part replaces 37110-31013.

37110-31017

Unavailable

26

SWITCH ASSY, IGNITION | A; FROM 37110-31013

37110-31014

Unavailable

26

SWITCH ASSY IGN | B This part replaces 37110-31016.

37110-31017

Unavailable

27

LOCK ASSY, STEERING | K,L,M,A,B This part replaces 51900-33810.

51900-33811

Unavailable

28

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

29

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

30

LEAD WIRE | K,L,M This part replaces 36660-34000.

48528-78200

$5.82

31

LEAD WIRE, RESISTER | L,M

37131-18999

Unavailable
