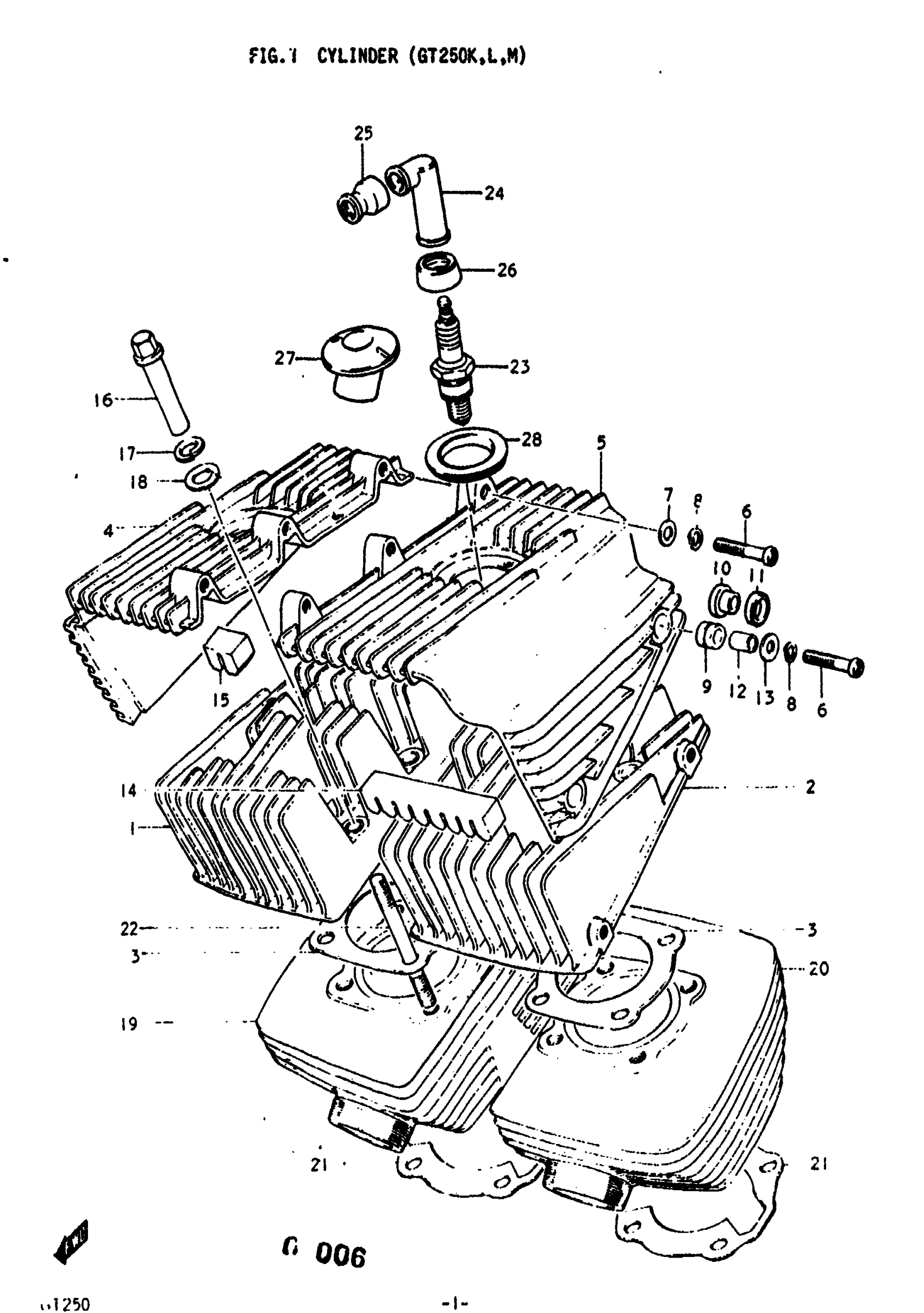

Suzuki GT250 (1977) CYLINDER (GT250K Diagram

#

Description
Price

1

CYLINDER HEAD, RH | K,L; TO 11111-18621

11111-18620

Unavailable

1

CYLINDER HEAD, RH | M

11111-18621

Unavailable

2

CYLINDER HEAD, LH | K,L; TO 11121-18621 This part replaces 11121-18620.

11121-18621

Unavailable

2

CYLINDER HEAD, LH | M

11121-18621

Unavailable

3

CYLINDER HEAD GASKET | K,L,M This part replaces 11141-18100.

11141-18000

Unavailable

4

COVER, CYLINDER HEAD RH | K,L,M

11171-18620

Unavailable

5

COVER, CYLINDER HEAD LH | K,L,M

11172-18620

Unavailable

6

SCREW | K,L,M

02112-06257

$1.78

7

.WASHER | K,L,M This part replaces 08322-11068.

08322-0106B

$2.26

8

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

9

CUSHION | K,L

09320-08015

$3.58

10

CUSHION | M

09320-08017

Unavailable

11

CUSHION | M

09320-12022

Unavailable

12

SPACER (6.1X8X12) | K,L,M; 6.1x8x12 This part replaces 09180-06035.

09180-06249

$2.10

13

WASHER | K,L,M; 6.3x14x1.6 This part replaces 09160-06031.

09160-06125

$1.91

14

PAD, CYLINDER HEAD | K,L,M

11152-33000

Unavailable

15

PAD, CYLINDER HEAD | K,L,M

11153-33000

Unavailable

16

NUT | K,L,M

09159-08004

Unavailable

17

LOCK WASHER | K,L,M This part replaces 08321-21128.

08321-01127

$2.06

18

WASHER | K,L,M This part replaces 08322-11128.

08322-01127

$1.84

19

CYLINDER, RH | K; TO 11210-18402

11210-18401

Unavailable

19

CYLINDER, RH | L,M

11210-18402

Unavailable

20

CYLINDER, LH | K; TO 11220-18402

11220-18401

Unavailable

20

CYLINDER, LH | L,M

11220-18402

Unavailable

21

GASKET,CYLINDER | K,L,M This part replaces 11241-18000.

11241-18001

Unavailable

22

BOLT,STUD | K,L,M This part replaces 01421-08908.

01421-0890A

$4.05

23

SPARK PLUG | K,L,M; B-8ES, NGK

09482-00091

$3.01

23

SPARK PLUG W24E | K,L,M; W24ES, ND This part replaces 09482-00092.

09482-00247-111

Unavailable

24

CAP, SPARK PLUG | K,L,M

33510-52010

Unavailable

25

SEAL,HIGH TENSION CORD (SIDE) | K,L,M; FROM 33542-51000 This part replaces 33542-98000.

33542-38B00

$4.34

26

SEAL, SPARK PLUG | M

33541-69010

$4.37

27

BOOT, PLUG CAP | K,L; TO 33545-34000 USED WITH 33541-69010

33544-33010

Unavailable

28

RING, SPARK PLUG CAP | M

33545-34000

Unavailable
