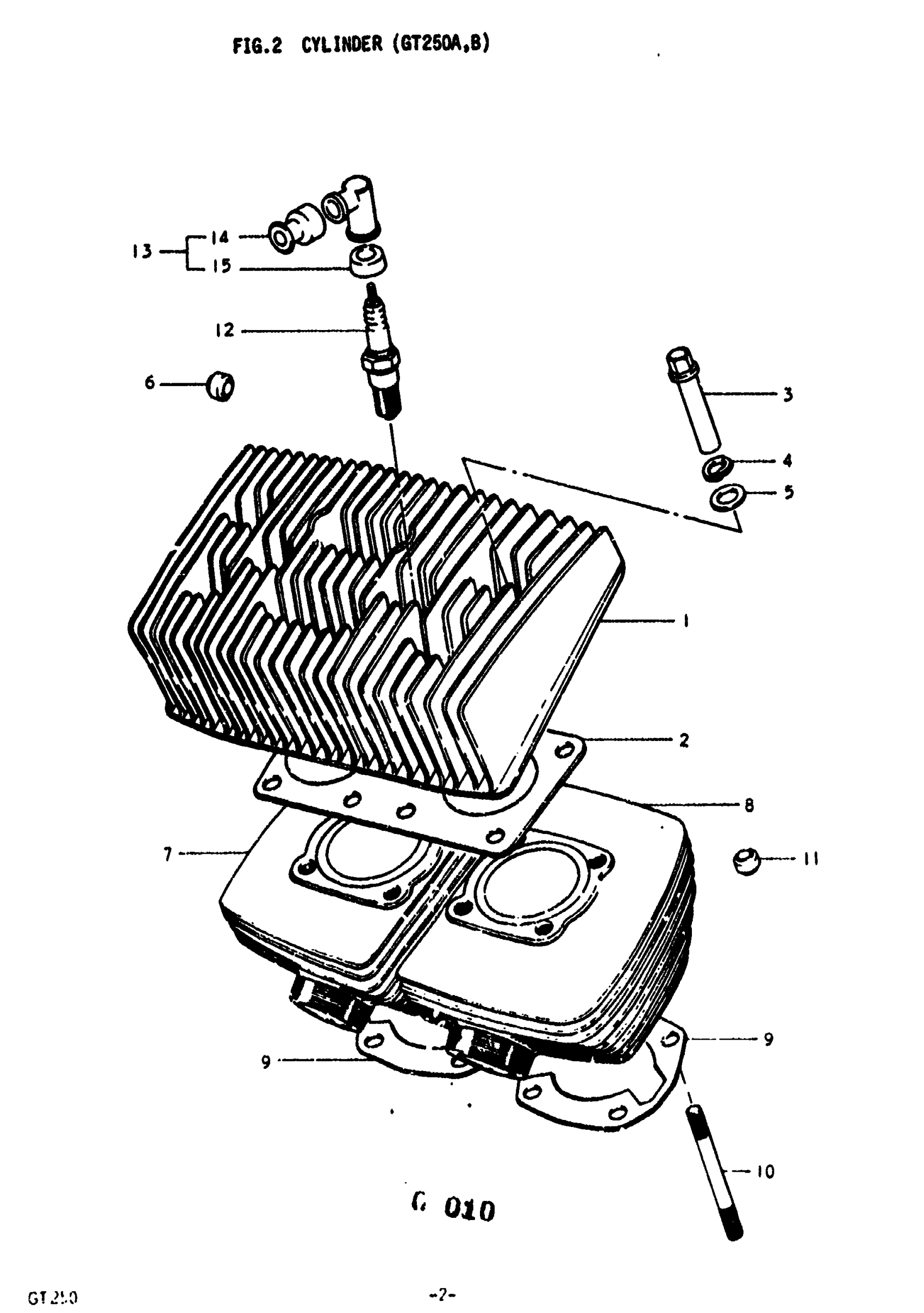

Suzuki GT250 (1977) CYLINDER (GT250A Diagram

#

Description
Price

1

CYLINDER HEAD | A; TO 11111-18632

11111-18631

Unavailable

1

CYLINDER HEAD | A,B

11111-18632

Unavailable

2

CYLINDER HEAD G | A,B This part replaces 11141-18610.

11141-18710

Unavailable

3

NUT | A,B

09159-08004

Unavailable

4

LOCK WASHER | A,B This part replaces 08321-21128.

08321-01127

$2.06

5

WASHER | A,B This part replaces 08322-11128.

08322-01127

$1.84

6

PAD, RUBBER | A,B This part replaces 11151-18620.

11151-35600

$4.37

7

CYLINDER, RH | A,B

11210-18600

Unavailable

8

CYLINDER, LH | A,B

11220-18600

Unavailable

9

GASKET,CYLINDER | A,B This part replaces 11241-18600.

11241-18601

Unavailable

10

BOLT,STUD | A,B This part replaces 01421-08908.

01421-0890A

$4.05

11

PAD, RUBBER | A,B This part replaces 11151-18620.

11151-35600

$4.37

12

SPARK PLUG | A; B8ES, NGK

09482-00091

$3.01

12

SPARK PLUG W24E | A; W24ES, ND This part replaces 09482-00092.

09482-00247-111

Unavailable

12

SPARK PLUG (NGK,B9ES) | A,B; B9ES, NGK This part replaces 09482-00066.

09482-00351

$2.86

13

CAP SET,SPARK P | A,B; Includes Item(s) 14 - 15 This part replaces 33500-69810.

33500-69811

$22.48

14

SEAL,HIGH TENSION CORD (SIDE) | A,B This part replaces 33542-98000.

33542-38B00

$4.34

15

SEAL, SPARK PLUG | A,B

33541-69010

$4.37
