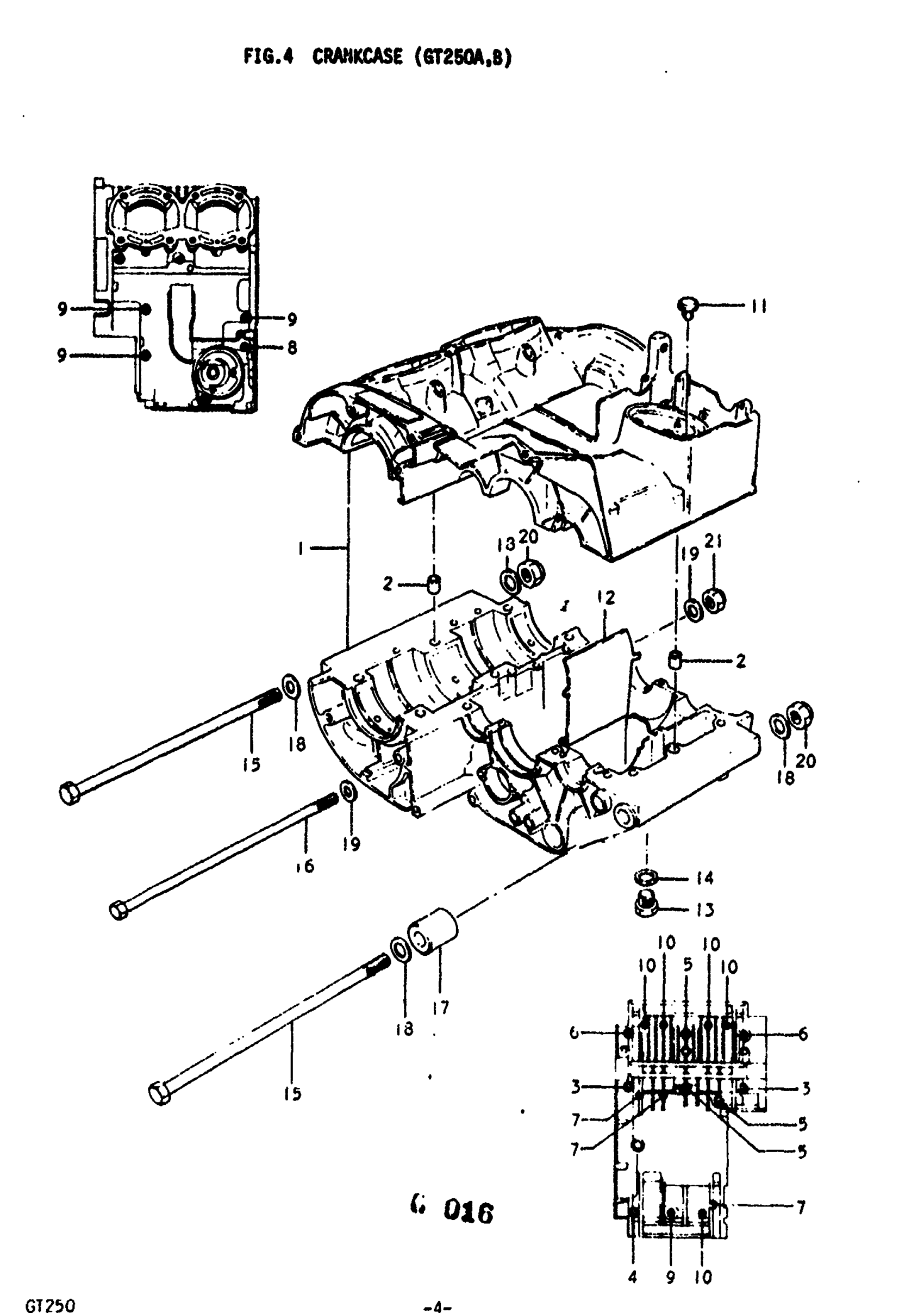

Suzuki GT250 (1977) CRANKCASE (GT250A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 - 10 This part replaces 11300-18841.

11300-18842

Unavailable

2

PIN | A,B This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT | A,B This part replaces 09103-08013.

01550-08957

$5.37

4

BOLT | A,B This part replaces 01512-08708.

01550-08707

$3.91

5

BOLT | A,B This part replaces 01512-08658.

01550-08657

$4.68

6

BOLT | A,B This part replaces 01512-08608.

01550-08607

$3.76

7

BOLT 6X75 | A,B This part replaces 09103-06016.

01550-06757

$3.68

8

BOLT | A,B This part replaces 09103-06017.

01550-06657

$4.17

9

BOLT | A,B This part replaces 01512-06558.

01550-06557

$3.30

10

BOLT (6X50) | A,B This part replaces 01512-06508.

01550-06507

$3.40

11

PLUG, BREATHER | A,B

09250-10005

Unavailable

12

DEFLECTOR, BREATHER | A,B

24829-18000

Unavailable

13

PLUG, DRAIN | A,B This part replaces 09247-14007.

09247-14025

$2.79

14

GASKET | A,B

09168-14004

$1.83

15

BOLT, ENGINE MOUNTING NO.1 | A,B; 12x222

09104-12105

Unavailable

16

BOLT (10x220) | A,B; 10x222 This part replaces 09100-10036.

09100-10170

Unavailable

17

SPACER | A,B

09180-12028

Unavailable

18

WASHER | A,B This part replaces 08322-11128.

08322-01127

$1.84

19

WASHER | A,B This part replaces 08322-11108.

08322-01107

$2.15

20

NUT | A,B

09159-12102

$3.23

21

NUT | A,B

09159-10011

$3.23
