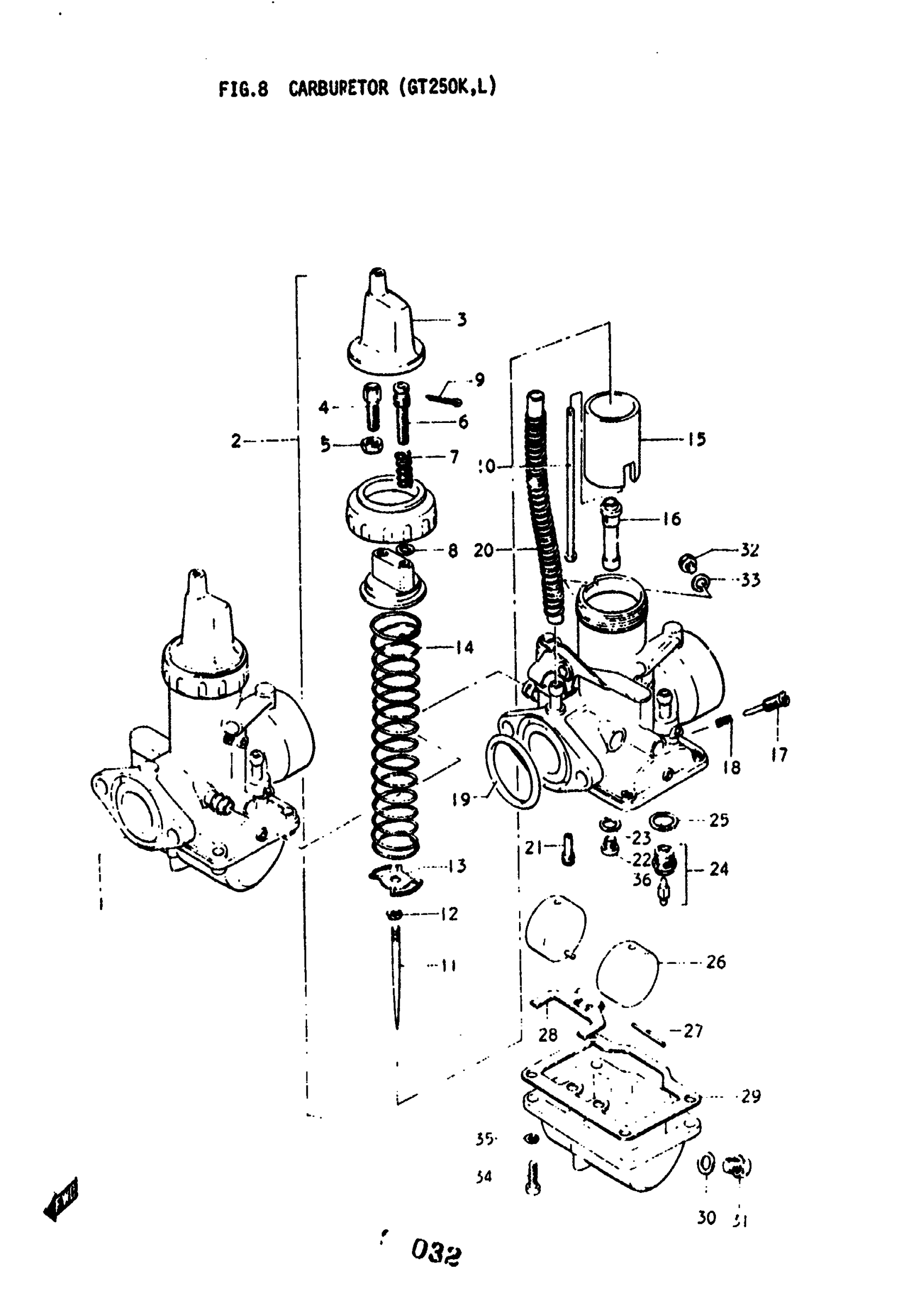

Suzuki GT250 (1977) CARBURETOR (GT250K Diagram

#

Description
Price

1

CARBURETOR ASSY, RH | K

13201-18652

Unavailable

1

CARBURETOR ASSY, RH | L; FROM 13201-18652 TO 13201-18654 This part replaces 13201-18653.

13201-18654

Unavailable

2

CARBURETOR ASSY, LH | K; TO 13202-18653

13202-18652

Unavailable

2

CARBURETOR ASSY, LH | L; TO 13202-18654; Includes Item(s) 3 - 35 This part replaces 13202-18653.

13202-18654

Unavailable

3

CAP, CABL. ADJUSTER | K,L

13681-11010

Unavailable

4

ADJUSTER | K,L This part replaces 13577-03010.

13577-48110

$8.30

5

NUT, CABLE ADJUSTER | K,L

13661-03010

$5.67

6

SCREW, THROTTLE VALVE ADJUSTI | K,LK,L

13267-09210

Unavailable

7

SPRING, THROTTLE VALVE ADJUST | K,LK,L

13268-03110

$5.45

8

LOCK WASHER | K,L This part replaces 08323-21068.

08323-31068

Unavailable

9

PIN | K,L This part replaces 04111-12108.

04111-1210A

$1.50

10

ROD, THROTTLE VALVE STOP | K,L

13296-08010

Unavailable

11

NEEDLE, JET | K,L; 5CN3

13383-18620

Unavailable

12

CLIP, NEEDLE | K,L

13394-10010

$5.45

13

SEAT, THROTTLE VALVE SPRING | K,L; 5CN3

13581-18620

Unavailable

14

SPRING, THROTTLE VALVE | K,L

13573-18620

Unavailable

15

VALVE, THROTTLE | K; CA:2.5K; CA:2.5

13551-18650

Unavailable

15

VALVE, THROTTLE | K; CA:2.5

13561-18650

Unavailable

16

NOZZLE, NEEDLE | L,K; 0-2

09494-00075

Unavailable

17

SCREW, PILOT AIR | L,K

13269-15010

Unavailable

18

SPRING, PILOT AIR SCREW | L,K

13268-01010

$5.28

19

O RING | L,K

13295-18620

Unavailable

20

HOSE(4.5X8.5X60 | L,K; FROM 13683-34630 This part replaces 13683-34630.

09355-45001-600

$9.48

21

JET, PILOT (25) | K,L; #25 This part replaces 09492-25003.

09492-25005

$9.55

22

JET, MAIN (112.5) | K,L; #112.5 This part replaces 09491-22005.

09491-22015

$9.69

23

WASHER, NEEDLE JET | K,L

13382-03110

$2.80

24

VALVE ASSY, NEEDLE | K,L

13370-18111

$52.32

25

GASKET, VALVE SEAT | K,L

13392-58600

$1.82

26

FLOAT | K,L

13252-18620

$21.82

27

PIN, FLOAT | K,L

13254-11010

Unavailable

28

ARM, FLOAT | K,L

13253-30010

Unavailable

29

GASKET, FLOAT CHAMBER | K This part replaces 13251-18010.

13251-33110

$9.03

29

GASKET, FLOAT CHAMBER | L This part replaces 13251-30010.

13251-33110

$9.03

30

GASKET, DRAIN PLUG | K,L

13249-05010

$1.98

31

PLUG, DRAIN | K,L

13247-05010

$5.11

32

SCREW, PLUG | K,L

13664-31010

Unavailable

33

WASHER | K,L

13663-31010

$2.80

34

SCREW | K,L This part replaces 02111-04168.

02112-0416A

$1.49

35

LOCK WASHER | K,L This part replaces 08321-21048.

08321-0104A

$1.84

36

JET, MAIN (110) | K,L; #110 This part replaces 09491-22004.

09491-22016

$10.06

36

JET, MAIN (115) | K,L; OPT; #115 This part replaces 09491-23002.

09491-23011

$9.63

36

JET, MAIN (120) | K,L; #120 OPT This part replaces 09491-24005.

09491-24016

$11.38

36

JET, MAIN (125) | K,L; OPT #125 This part replaces 09491-25001.

09491-25010

$11.02

36

JET, MAIN (130) | K,L; OPT #130 This part replaces 09491-26004.

09491-26011

$11.38
