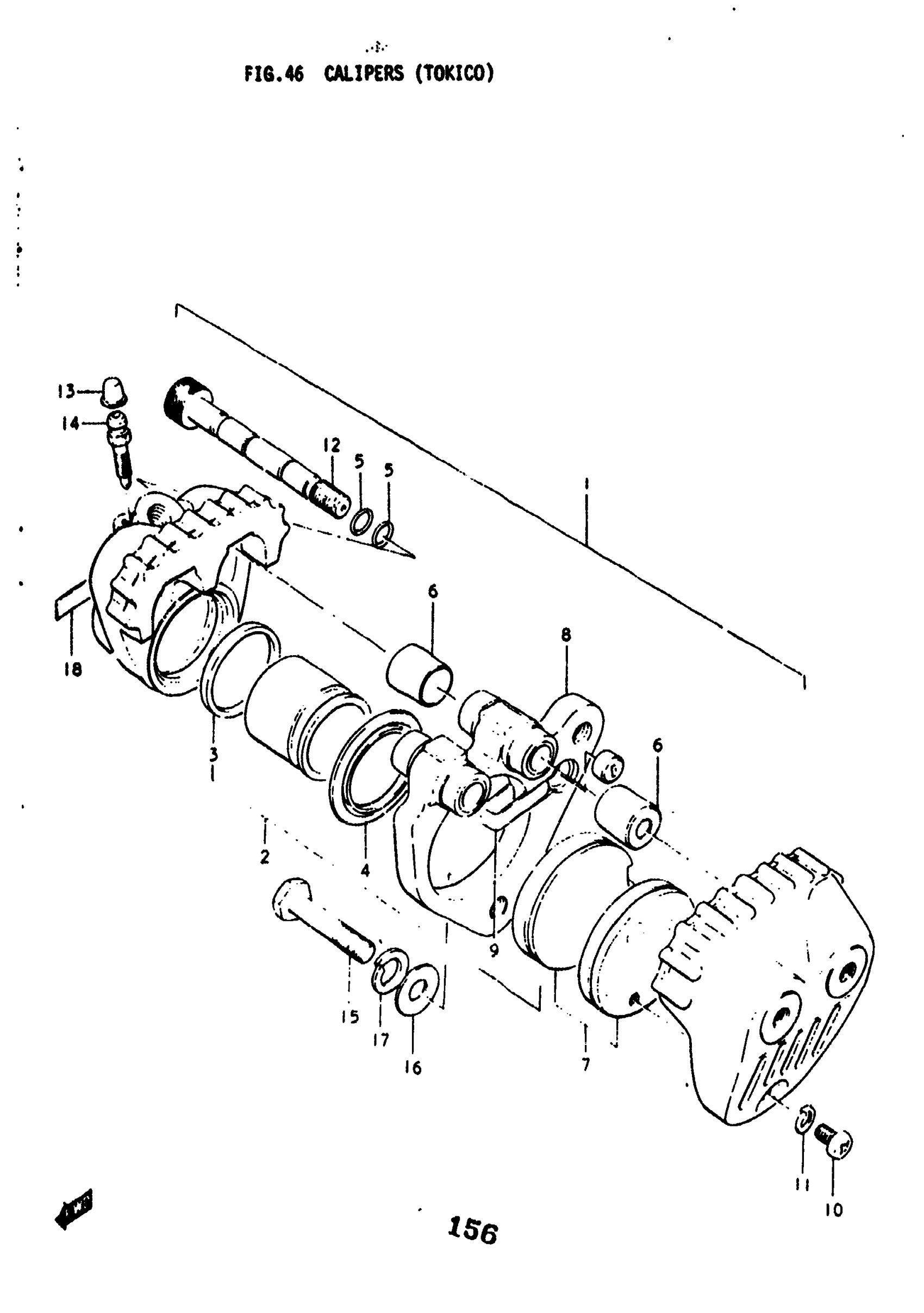

Suzuki GT250 (1977) CALIPERS (TOKICO) Diagram

#

Description
Price

1

CALIPERS ASSY | K; TO 59100-18412~F.NO.21104

59100-18411

Unavailable

1

CALIPERS ASSY | K

59100-18412

Unavailable

1

NO DESCRIPTION AVAILABLE | L,M,A,B; FROM 59100-33110; Includes Item(s) 2 - 14 This part replaces 59100-33111.

59100-33112

Unavailable

2

PISTON SET | K,L,M,A,B This part replaces 59100-18831.

59100-18834

Unavailable

3

SEAL,PISTON | K,L,M,A,B This part replaces 59107-18410.

69107-05CF0

$9.07

4

BOOT, PISTON | K,L,M,A,B

59108-18410

Unavailable

5

O RING, CALIPERS AXIE | K,L,M,A,B

59111-18410

Unavailable

6

DUST COVER, AXIE | K,L,M,A,B

59112-18410

Unavailable

7

PAD SET | K; TO 59100-31830

59100-18826

Unavailable

7

PAD SET | L,M,A,B; MARKED "A" This part replaces 59100-18840.

59300-18810

Unavailable

8

HOLDER, CALIPERS | K,L,M,A,B

59150-18411

Unavailable

9

STOPPER, CALIPERS HOLDER | K,L,M,A,B

59153-18410

Unavailable

10

SCREW | K,L,M,A,B This part replaces 02112-06128.

02112-06127

$1.84

11

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

12

AXLE, CALIPERS | K,L

59105-18410

Unavailable

12

AXLE, CALIPERS | M,A,B; FROM 59105-18411

59105-18411

Unavailable

13

CAP, BLEEDER | K,L,M,A,B This part replaces 59122-18410.

55156-66310

$5.17

14

BLEEDER | K,L,M,A,B

59121-18410

$8.73

15

BOLT (10X38) | K,L,M,A,B This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | K,L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

18

EMBLEM | K,L,M,A,B

68334-18400

Unavailable
