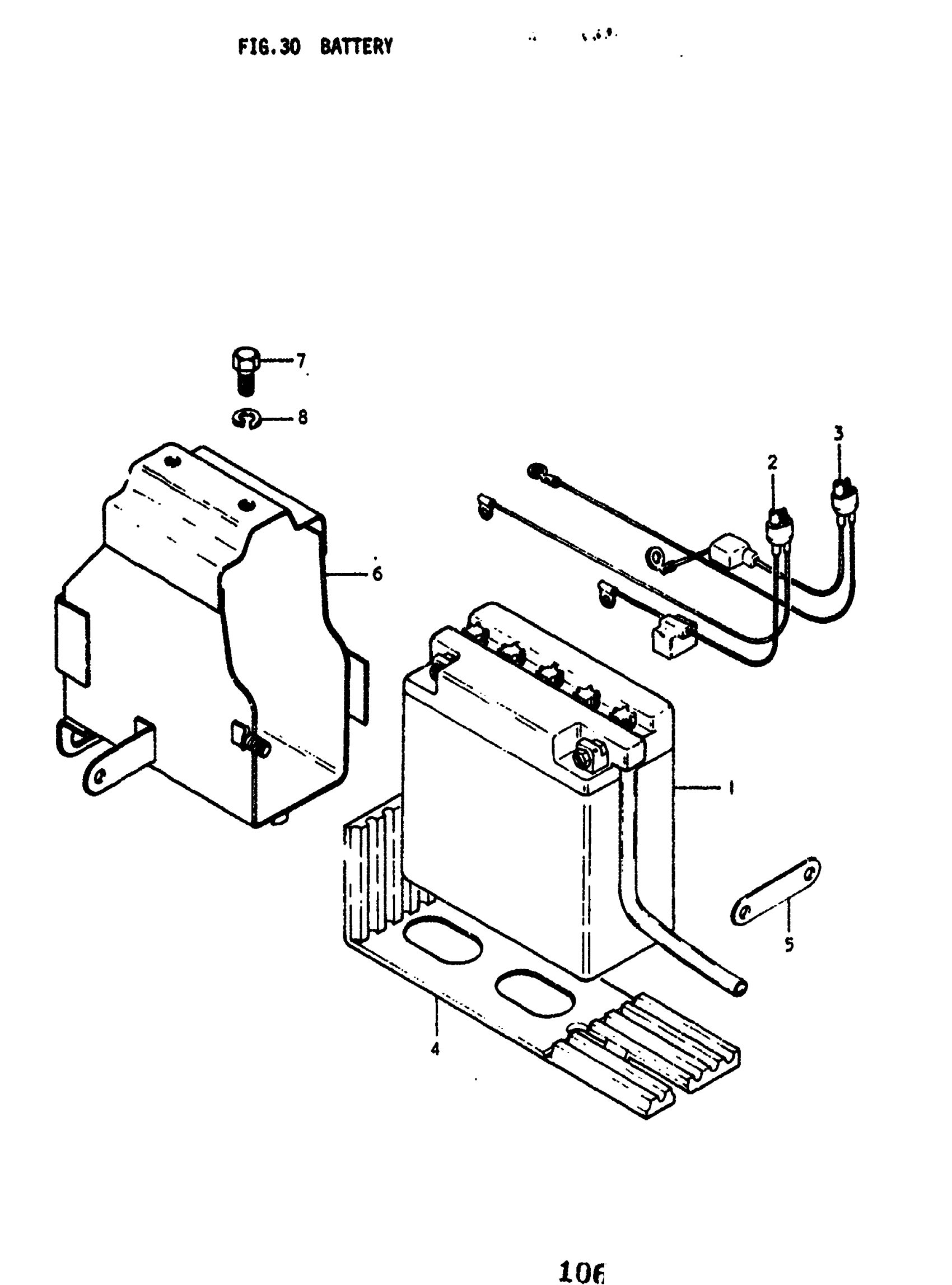

Suzuki GT250 (1977) BATTERY Diagram

#

Description

Price

1

YB5LB BATTERY(Y | K,L,M,A,B; 12V, 5AH(12N5-3B) This part replaces 33610-18010.

33610-35400

$61.57

2

LEAD WIRE, BATTERY | K,L,M,A

36860-32000

Unavailable

3

CABLE, BATTERY | L,M,A,B This part replaces 36860-18020.

36860-15020

Unavailable

4

PROTECTOR, BATTERY | K,L,M,A,B

33651-11000

Unavailable

5

CLAMP | K,L,M,A,B

09404-07701

Unavailable

6

HOLDER, BATTERY | K,L,M,A,B

41540-11002

Unavailable

7

PLUG, DRAIN | K,L,M This part replaces 01122-08168.

01500-0816B

$2.50

7

BOLT, REAR | A,B This part replaces 01122-08208.

01500-08207

$2.53

8

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13
