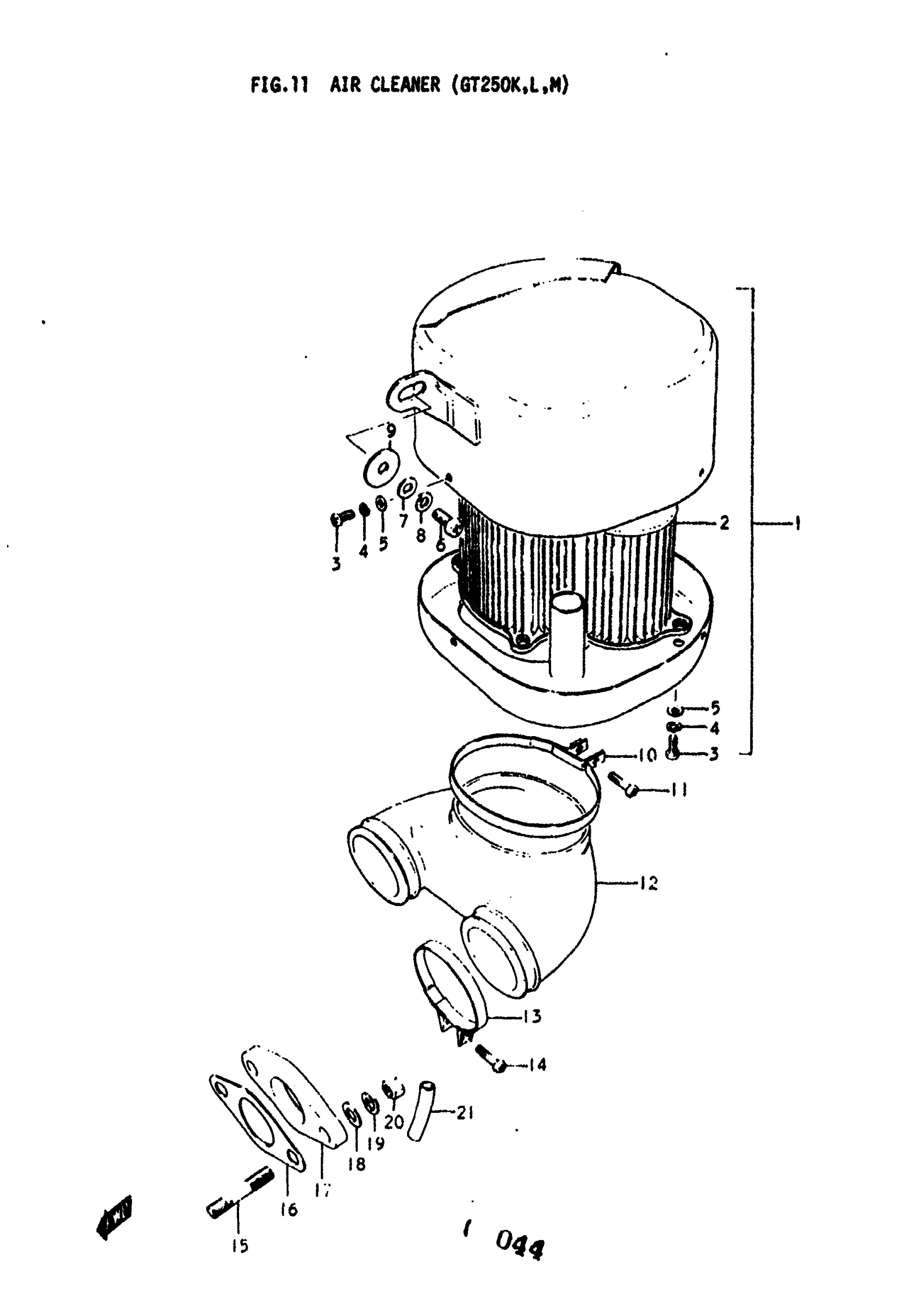

Suzuki GT250 (1977) AIR CLEANER (GT250K Diagram

#

Description
Price

1

CLEANER ASSY, AIR | K,L,M; Includes Item(s) 2 - 5

13700-18610

Unavailable

2

FILTER | K,L,M

13780-18410

Unavailable

3

SCREW | K,L,M This part replaces 02111-04087.

02112-04087

$1.49

4

LOCK WASHER | K,L,M This part replaces 08321-21048.

08321-0104A

$1.84

5

WASHER | K,L,M This part replaces 08322-21048.

08322-01047

$1.86

6

SCREW | K,L,M This part replaces 02112-06168.

02112-06167

$1.49

7

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | K,L,M; 8x22x3

09161-08002

Unavailable

10

CLAMP | K,L,M; FROM 09402-00202

09402-80306

Unavailable

11

SCREW | K,L,M This part replaces 02111-04208.

02112-0420A

$1.49

12

HOSE, AIR CLEANER | K,L,M; FROM 13880-18600

13880-18601

Unavailable

13

CLAMP | K,L,M; FROM 09402-00223

09402-52306

$4.91

14

SCREW | K,L,M This part replaces 02111-04208.

02112-0420A

$1.49

15

STUD BOLT | K,L,M This part replaces 01421-08358.

01421-0835A

$2.29

16

GASKET, CARBURETOR | K,L,M

13125-30000

Unavailable

17

INSULATOR, CARBURETOR | K,L,M

13129-18400

Unavailable

18

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$2.13

19

.LOCK WASHER | K,L,M This part replaces 08321-11088.

08321-01087

$2.13

20

NUT | K,L,M This part replaces 08312-11088.

08310-00087

$2.13

21

HOSE(6X10X600) | K,L,M; 6x10x36 This part replaces 09343-06008.

09352-60104-600

$8.99
