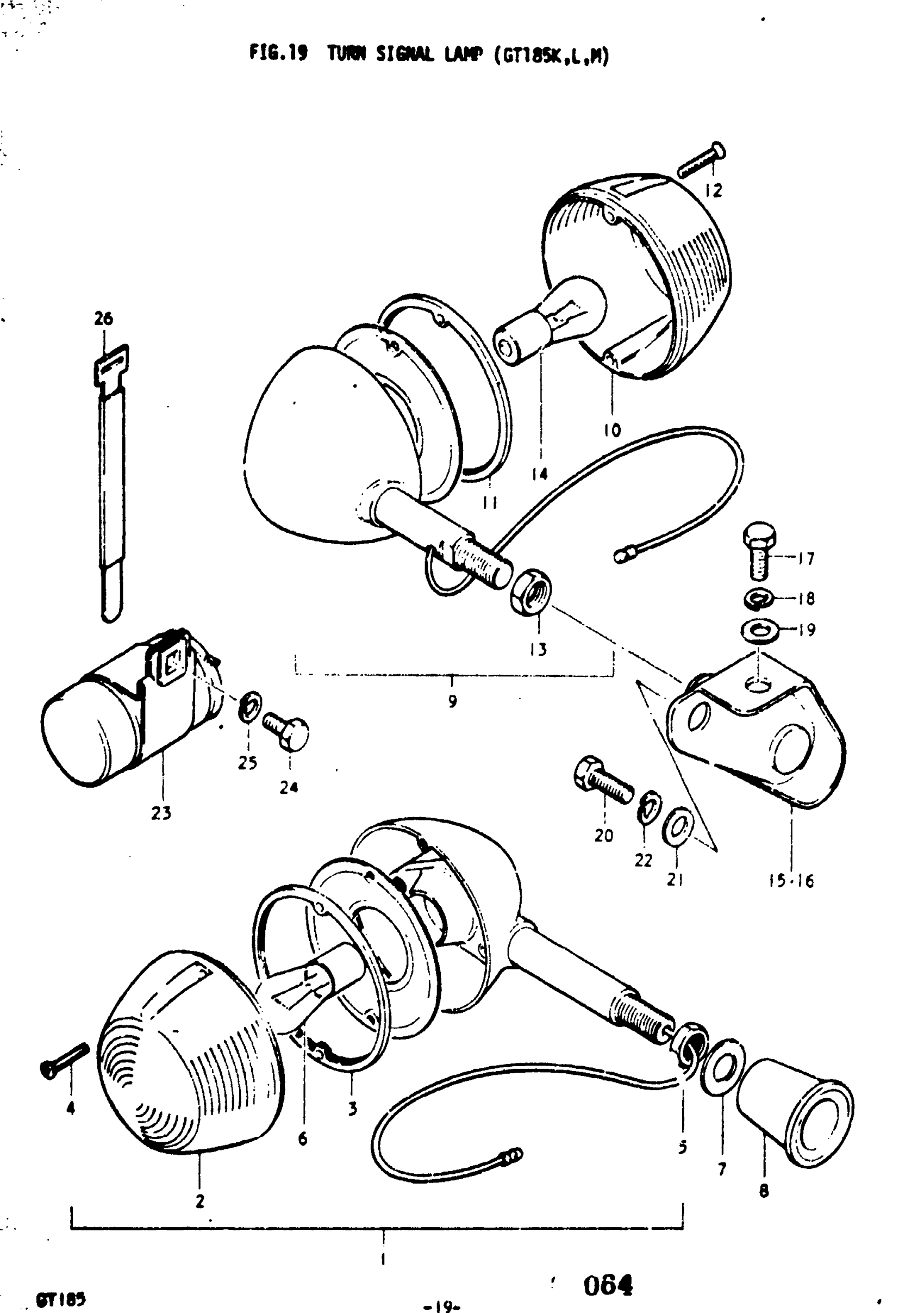

Suzuki GT185 (1977) TURN SIGNAL LAMP (GT185K Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | K,L,M; Includes Item(s) 2 - 6 This part replaces 35601-18620.

35601-27630-999

Unavailable

2

LENS | K,L,M

35612-12611

$12.50

3

GASKET | K,L,M

35613-03610

$13.34

4

SCREW | K,L,M This part replaces 02131-03167.

02132-03167

$1.49

5

NUT | K,L,M This part replaces 08312-32108.

08310-00107

$2.19

6

BULB | K,L,M; 12V, 23W

09471-12006

$3.98

7

WASHER | K,L,M This part replaces 08322-21108.

08322-01107

$2.15

8

COVER, TURN SIGNAL BOSS | K,L,M

35698-28000

Unavailable

9

LAMP ASSY,RR TR | K,L; TO 35603-15612 LENS:RED This part replaces 35603-18620.

35603-27670-999

Unavailable

9

LAMP ASSY,RR TR | L,M; LENS:UMBER; Includes Item(s) 10 - 14 This part replaces 35603-15612.

35603-27670-999

Unavailable

10

LENS | K,L; RED

35652-18700

Unavailable

10

LENS | L,M; UMBER

35612-12611

$12.50

11

GASKET | K,L,M

35613-03610

$13.34

12

SCREW | K,L,M This part replaces 02131-03167.

02132-03167

$1.49

13

NUT | K,L,M This part replaces 08312-32108.

08310-00107

$2.19

14

BULB | K,L,M; 12V, 23W

09471-12006

$3.98

15

BRACKET, TURN SIGNAL LAMP RH | K,L; CHROME PLATED TO 41640-36101 This part replaces 41640-36100.

41640-36101

Unavailable

15

BRACKET, TURN SIGNAL LAMP RH | L,M; PAINTING:BLACK

41640-36101

Unavailable

16

BRACKET, TURN SIGNAL LAMP LH | K,L; CHROME PLATED TO 41650-36101 This part replaces 41650-36100.

41650-36101

Unavailable

16

BRACKET, TURN SIGNAL LAMP LH | L,M; PAINTING:BLACK

41650-36101

Unavailable

17

BOLT, CANISTER | K,L,M This part replaces 01112-06168.

01500-06167

$1.97

18

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

20

PLUG, DRAIN | K,L,M This part replaces 01122-08168.

01500-0816B

$2.50

21

WASHER | K,L,M This part replaces 08322-21088.

08322-01087

$2.13

22

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

23

RELAY ASSY, TURNSIGNAL | K,L,M This part replaces 38610-36610.

38610-31X50

$80.15

24

BOLT | K,L,M This part replaces 01112-06108.

01500-06107

$2.06

25

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

26

CLAMP | K,L,M; L:110 This part replaces 09407-11302.

09407-18302

$2.28
