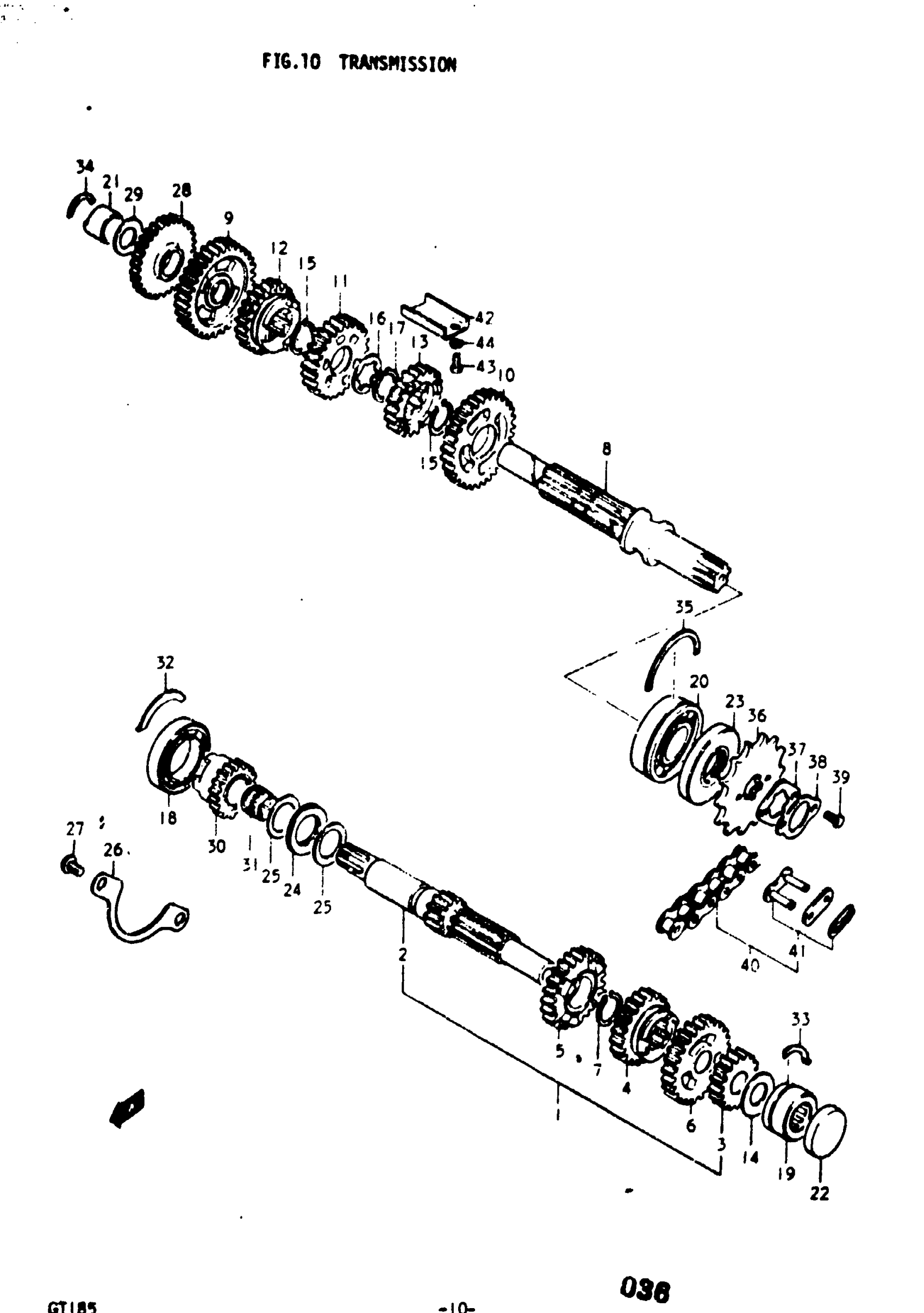

Suzuki GT185 (1977) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,L,M,A,B; TO 24120-36101 This part replaces 24120-29004.

24120-36102

Unavailable

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 - 7 This part replaces 24120-36101.

24120-36102

Unavailable

2

COUNTERSHAFT | K,L,M,A,B; NT:12

24121-29002

Unavailable

3

GEAR, 2ND DRIVE | K,L,M,A,B; NT:16

24221-28001

Unavailable

4

GEAR, 3RD DRIVE | K,L,M,A,B; NT:20

24231-28002

Unavailable

5

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:23 This part replaces 24241-28000.

24241-28001

Unavailable

6

GEAR, 5TH DRIVE | K,L,M,A; NT:25 TO 24251-28003 This part replaces 24251-28002.

24251-28003

Unavailable

6

GEAR, 5TH DRIVE | B; NT:25

24251-28003

Unavailable

7

CIRCLIP | K,L,M,A,B This part replaces 09380-20003.

09380-20007

$2.43

8

DRIVESHAFT | K,L,M,A,B

24131-36100

Unavailable

9

GEAR, 1ST DRIVEN | K,L,M,A,B; NT:33

24310-28000

Unavailable

10

GEAR, 2ND DRIVEN | K,L,M,A,B; NT:29 This part replaces 24321-28000.

24321-28001

$85.15

11

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:25 This part replaces 24331-28001.

24331-28002

Unavailable

12

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:23 This part replaces 24341-28002.

24341-28003

Unavailable

13

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:20 This part replaces 24351-28001.

24351-28002

Unavailable

14

WASHER | K,L,M,A,B; 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

15

CIRCLIP | K,L,M,A,B This part replaces 09380-20003.

09380-20007

$2.43

16

LOCK WASHER, LH | K,L,M,A,B This part replaces 09167-20007.

09167-20022

Unavailable

17

CIRCLIP | K,L,M,A,B

09380-20006

$2.90

18

BALL BEARING | K,L,M,A,B This part replaces 08110-60060.

08113-60060

$24.18

19

BEARING | K,L,M,A,B

09263-15011

Unavailable

20

BEARING | K,L,M,A,B

09262-20003

Unavailable

21

BUSHING | K,L,M,A,B

09300-15007

Unavailable

22

PLUG | K,L,M,A,B This part replaces 09241-30001.

09241-30003

$5.97

23

OIL SEAL | K,L,M,A,B

09283-20015

$10.37

24

BEARING | K,L,M,A,B

09263-21006

$15.48

25

WASHER | K,L,M,A,B; 21x30x0.8

09160-21007

$2.92

26

RETAINER, COUNTERSHAFT | M,A,B

24741-28001

Unavailable

27

SCREW | K,L,M,A,B This part replaces 02112-06108.

02112-06107

$1.49

28

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:29 This part replaces 26260-28002.

26260-28003

Unavailable

29

WASHER | K,L,M,A,B; 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

30

GEAR, KICK STARTER DRIVEN | K,L; NT:18 TO 26281-36200

26281-36100

Unavailable

30

GEAR, KICK STARTER DRIVEN | L,M,A,B; NT:18

26281-36200

$71.33

31

BEARING | K,L,M,A,B

09263-19006

$27.08

32

RING | K,L,M,A,B

09399-55001

Unavailable

33

RING | K,L,M,A,B

09399-30003

Unavailable

34

C RING | K,L,M,A,B

09390-22001

Unavailable

35

C RING | K,L,M,A,B

09390-52001

Unavailable

36

SPROCKET, ENGINE | K,L,M,A,B; NT:14

27511-36100

Unavailable

37

PLATE, ENGINE SPROCKET | K,L,M,A,B

27512-36100

Unavailable

38

LOCK WASHER | K,L,M,A,B

27513-36100

Unavailable

39

BOLT | K,L,M,A,B This part replaces 01112-06108.

01500-06107

$2.06

40

CHAIN,DRIVE ASS | K,L,M,A,B; #520x102@; Includes Item(s) 41 This part replaces 27600-36600.

27600-46K00-116

$167.95

41

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 27620-36110.

27620-28C01

Unavailable

42

REFLECTOR, OIL BREATHER | K,L,M,A,B

24829-36101

Unavailable

43

SCREW | K,L,M,A,B This part replaces 02111-05108.

02112-05107

$1.49

44

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84
