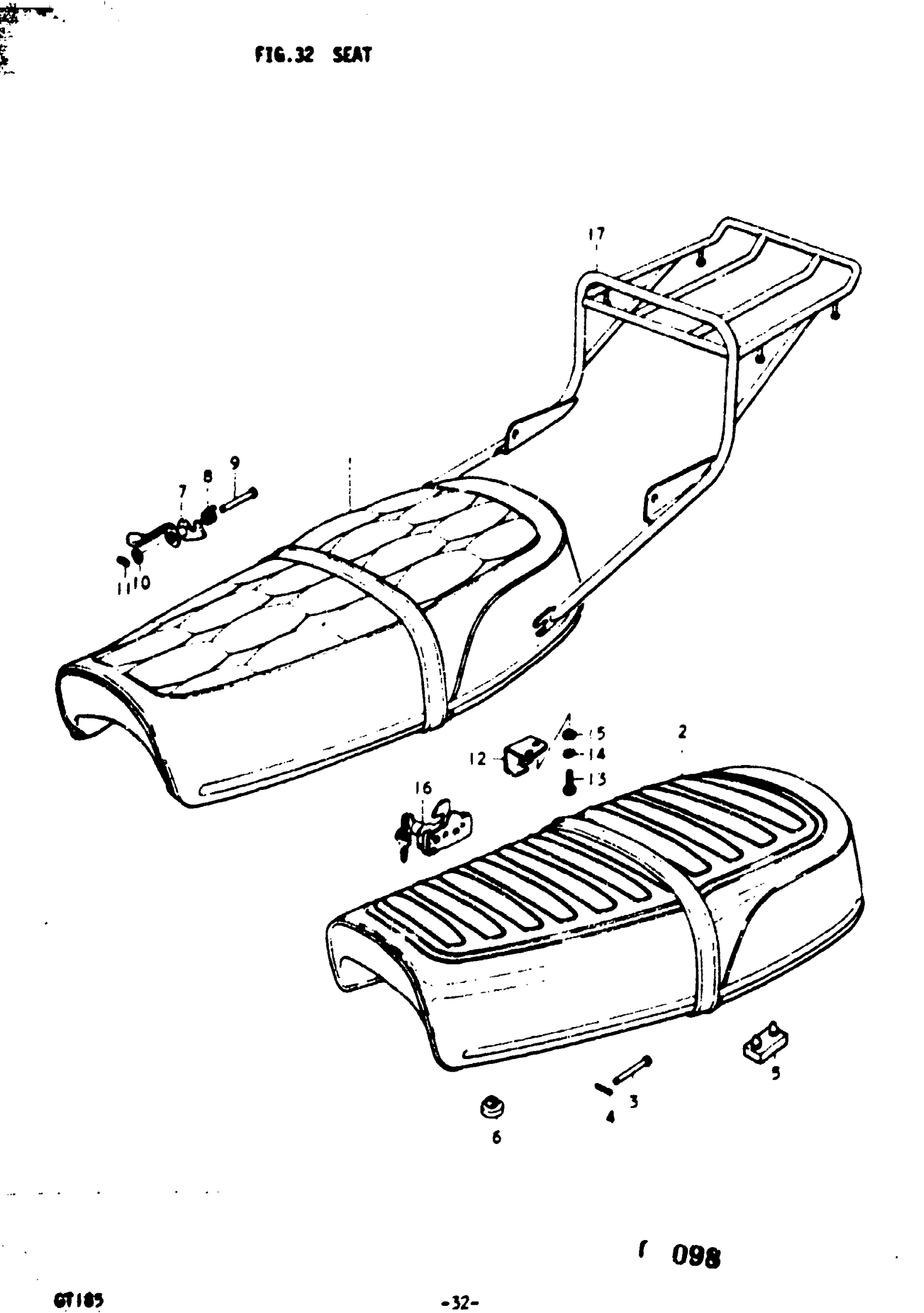

Suzuki GT185 (1977) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; TO 45100-36201-403 This part replaces 45100-36000-403.

45100-36X00-865

Unavailable

2

SEAT ASSY | L; TO 45100-36201-403

45100-36200-403

Unavailable

2

SEAT ASSY | M,A

45100-36201-403

Unavailable

2

NO DESCRIPTION AVAILABLE | B; FROM 45100-36201-403 This part replaces 45100-36201-865.

45100-36X00-865

Unavailable

3

PIN | K,L,M,A,B

09200-06018

$2.06

4

.COTTER PIN | K,L,M,A,B This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION | K,L,M,A,B

09321-08006

$2.90

6

CUSHION | K,L,M,A,B

09321-10002

$2.22

7

CLAMP | K; FROM 45210-33001

45210-33002

Unavailable

8

SPRING | K

09448-15001

Unavailable

9

PIN | K

09200-06018

$2.06

10

WASHER | K This part replaces 08322-21068.

08322-01067

$2.13

11

CLIP | K

09385-05002

Unavailable

12

PLATE | L,M,A,B

45213-36200

Unavailable

13

BOLT | L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

14

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER | L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK ASSY, SEAT | L,M,A,B; FROM 25700-36810 This part replaces 95700-36811.

95700-49811

Unavailable

17

CARRIER | K,L,M,A,B; OPT

46310-36000

Unavailable
